Tektronix TBS1032B User Manual

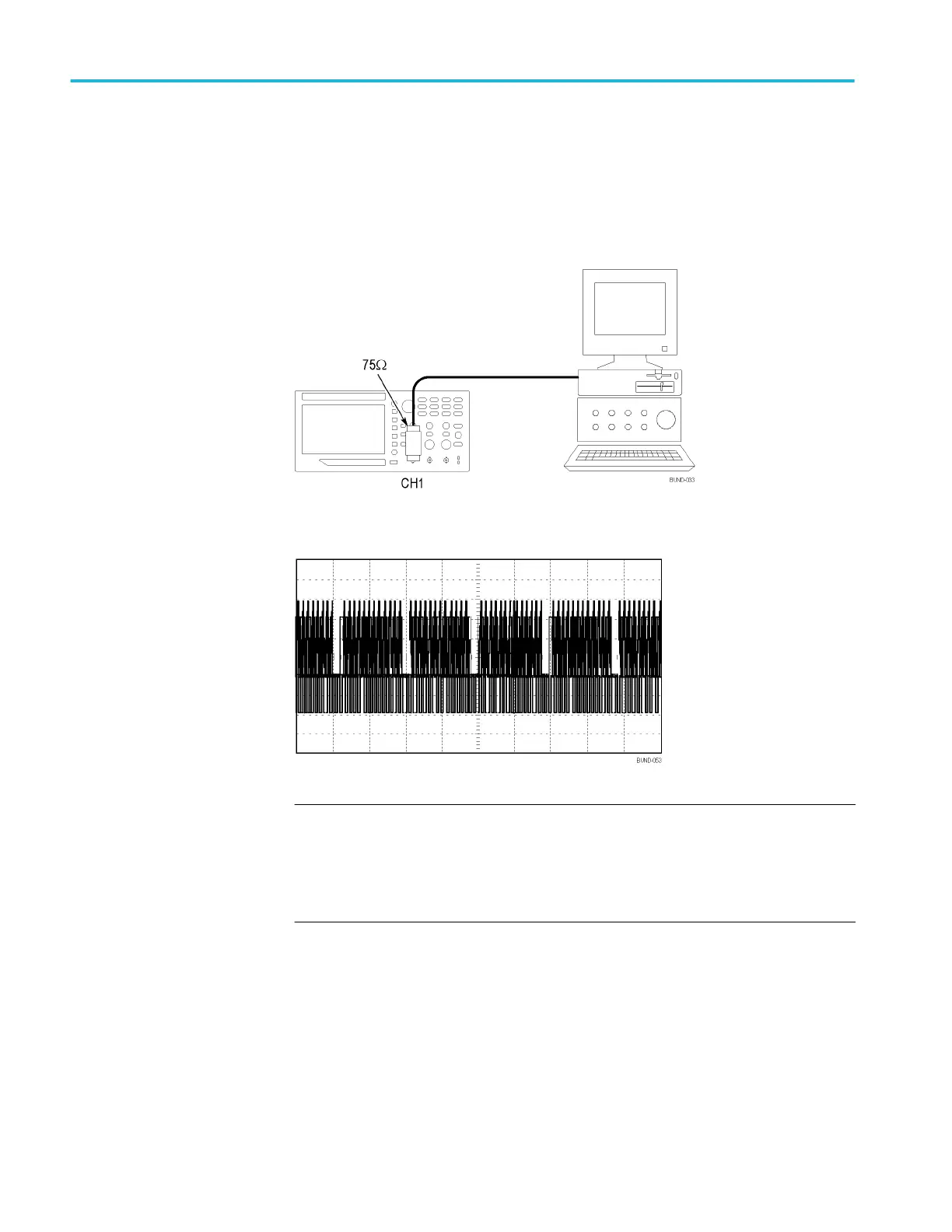

Triggering on a video signal
You are testing the video circuit in a piece of medical equipment and need to
display the video output signal. The video output is an NTSC standard signal.
Use the video trigger to obtain a stable display.
NOTE. Most video systems use 75 ohm cabling. The oscilloscope inputs do not
properly terminate low impedance cabling. To avoid amplitude inaccuracy from
improper loading and reflections, place a 75 ohm feedthrough terminator
(Tektronix part number 011-0055-02 or equivalent) between the 75 ohm coaxial
cable from the signal source and the oscilloscope BNC input.
Application examples
44 TBS1000B and TBS1000B-EDU Series Oscilloscopes User Manual

Tektronix TBS1032B Specifications

General

Bandwidth	30 MHz
Channels	2
Sample Rate	1 GS/s
Record Length	2.5 kpts
Timebase Range	5 ns/div to 50 s/div
Display Resolution	800 x 480
Connectivity	USB 2.0
Input Coupling	AC, DC, GND
Interface	USB
Power Supply	100-240 VAC, 50/60 Hz
Display	7 inch TFT color display
Vertical Sensitivity	2 mV/div to 5 V/div
Trigger Types	Edge, Pulse, Video
Math Functions	Add, Subtract, Multiply, Divide
Input Impedance	1 MΩ ± 2%
Maximum Input Voltage	300 V (DC + peak AC)
Probe Type	Passive
