Performance Tests

4–60

TDS 500B, 600B and TDS 700A Service Manual

Check output

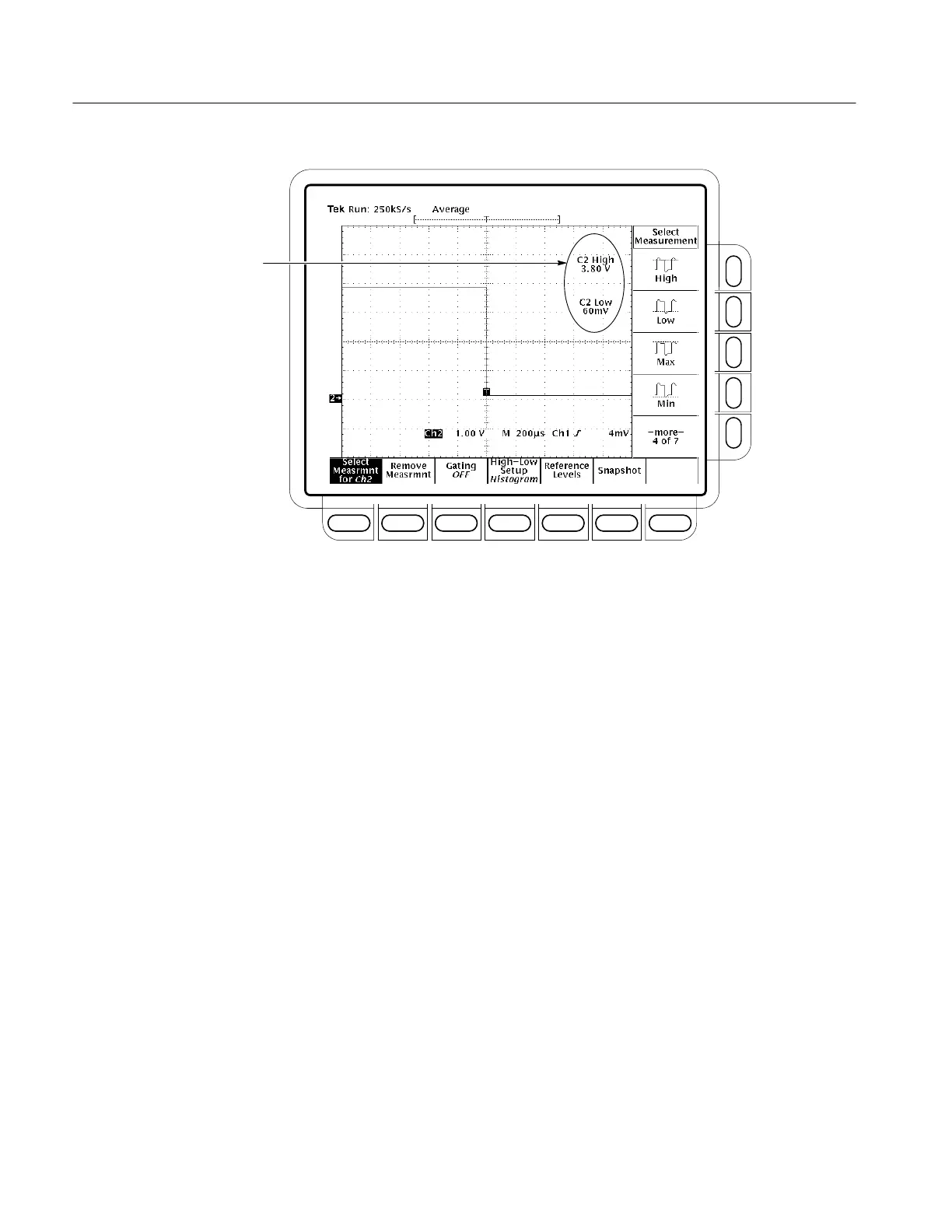

Figure 4–21: Measurement of Main Trigger Out Limits

d. Check Delayed Trigger output against limits: See Figure 4–21.

H Move the precision 50 W cable from the rear-panel Main Trigger

Output BNC to the rear-panel Delayed Trigger Output BNC.

H CHECK that the Ch2 High readout is ≥1.0 volt and that the Ch2

Low readout ≤0.25 volts.

H Enter high and low voltages on test record.

H Press the side-menu button  to select the 1 MW setting.

H Press CLEAR MENU.

H CHECK that the Ch2 High readout is ≥2.5 volts and that the Ch2

Low readout is ≤0.7 volts.

H Enter high and low voltages on test record.

3. Confirm CH 3 (Ax1 on TDS 520B, 620B, 680B, and TDS 724A) output is

within limits for gain:

a. Measure gain:

H Move the precision 50 W cable from the rear-panel DELAYED

TRIGGER OUTPUT BNC to the rear-panel SIGNAL OUT BNC.
