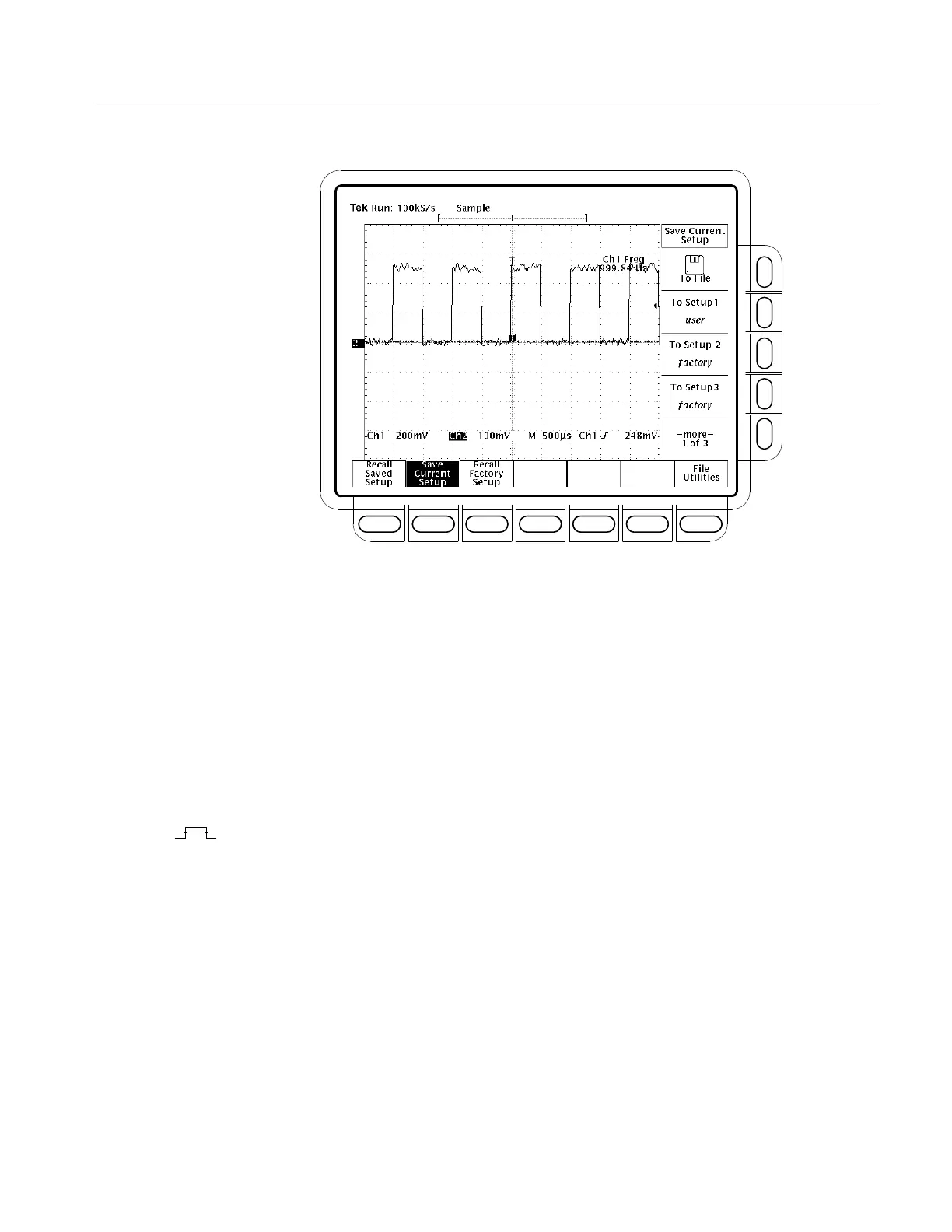

Figure 2–18: Save/Recall Setup Menu
7. Press one of the To Setup side menu buttons to store the current instrument
settings into that setup location. Remember which setup location you
selected for use later.
There are more setup locations than can be listed at one time in the side
menu. The –more– side menu item gives you access to all the setup
locations.
Once you have saved a particular setup, you can change the settings as you
wish, knowing that you can come back to that setup at any time.
8. Press MEASURE ➞ Positive Width (side) to add that measurement to the
display.
To recall the setup, press SAVE/RECALL SETUP ➞ Recall Saved Set-
up (main) ➞ Recall Setup (side) for the setup location you used in the last
exercise. The positive width measurement is now removed from the display
because you selected it after you saved the setup.
The step just performed completes the examples. You can restore the default
settings by pressing SETUP ➞ Recall Factory Setup (main) ➞ OK Confirm
Factory Init (side).
