Acquiring and Displaying Waveforms
TDS 500B, TDS 600B, & TDS 700A User Manual
3–11
The Record View, at the top of the display, indicates where the trigger occurs and
what part of the waveform record is displayed.
Original Position Positioned Vertically Positioned Horizontally
Original Scale Scaled Horizontally
Record View
Channel Reference Icon
Scaled Vertically

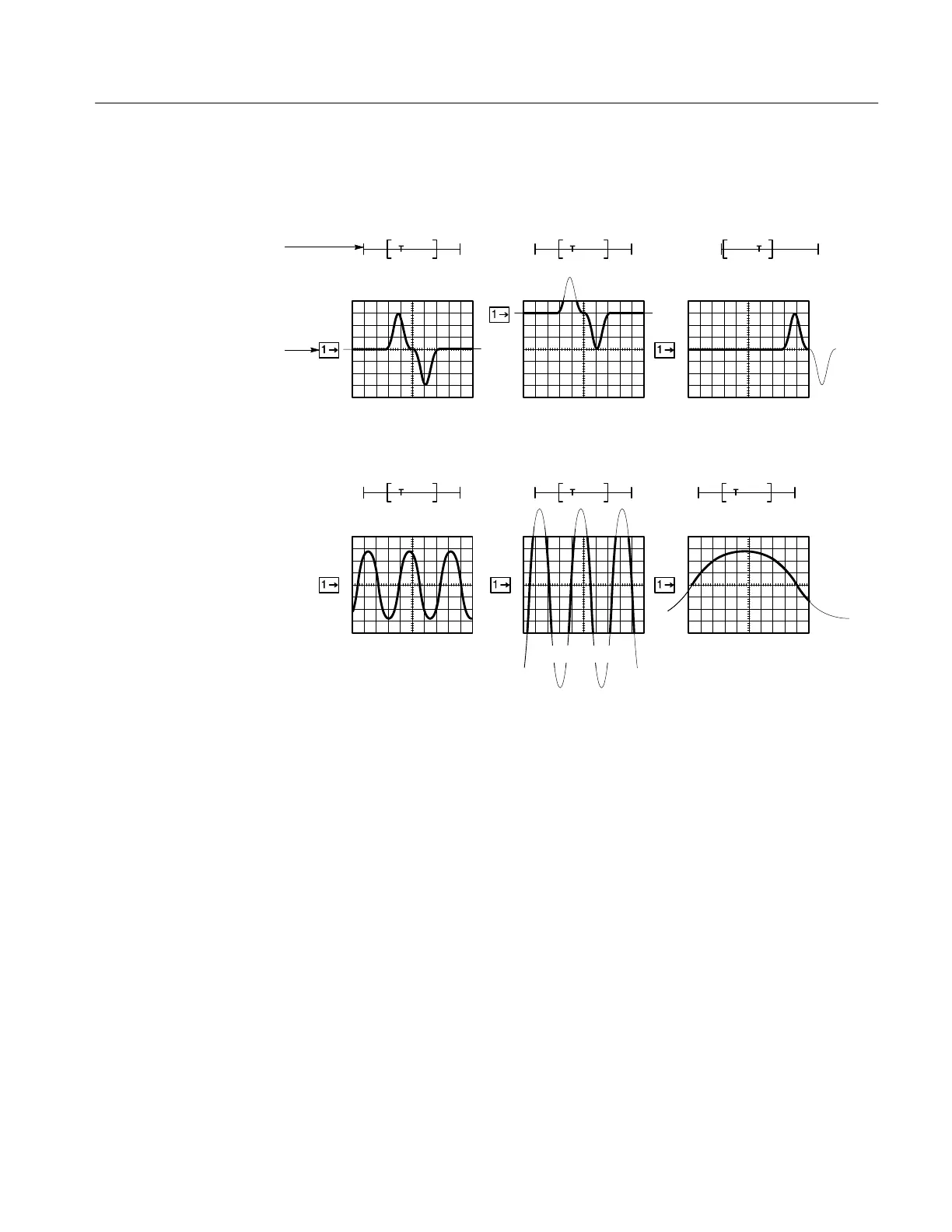

Figure 3–5: Scaling and Positioning
Check the Vertical Readout at the bottom-left part of the display to read the
volts/division setting for each displayed channel (the selected channel is in
inverse video). (See Figure 3–6.)
The TDS Oscilloscope permits you to change vertical scale and position quickly
from the front panel using dedicated control knobs. To change the vertical scale
and position:
1. Turn the vertical SCALE knob. Note only the scale of the selected wave-
form changes.
As you turn the vertical SCALE knob clockwise, the value decreases
resulting in higher resolution because you see a smaller part of the wave-
form. As you turn it counterclockwise, the scale increases allowing you to
see more of the waveform but with lower resolution.
To Check the
Vertical Scale
To Change Vertical Scale
and Position
