TDS 500D, TDS 600B, & TDS 700D User Manual

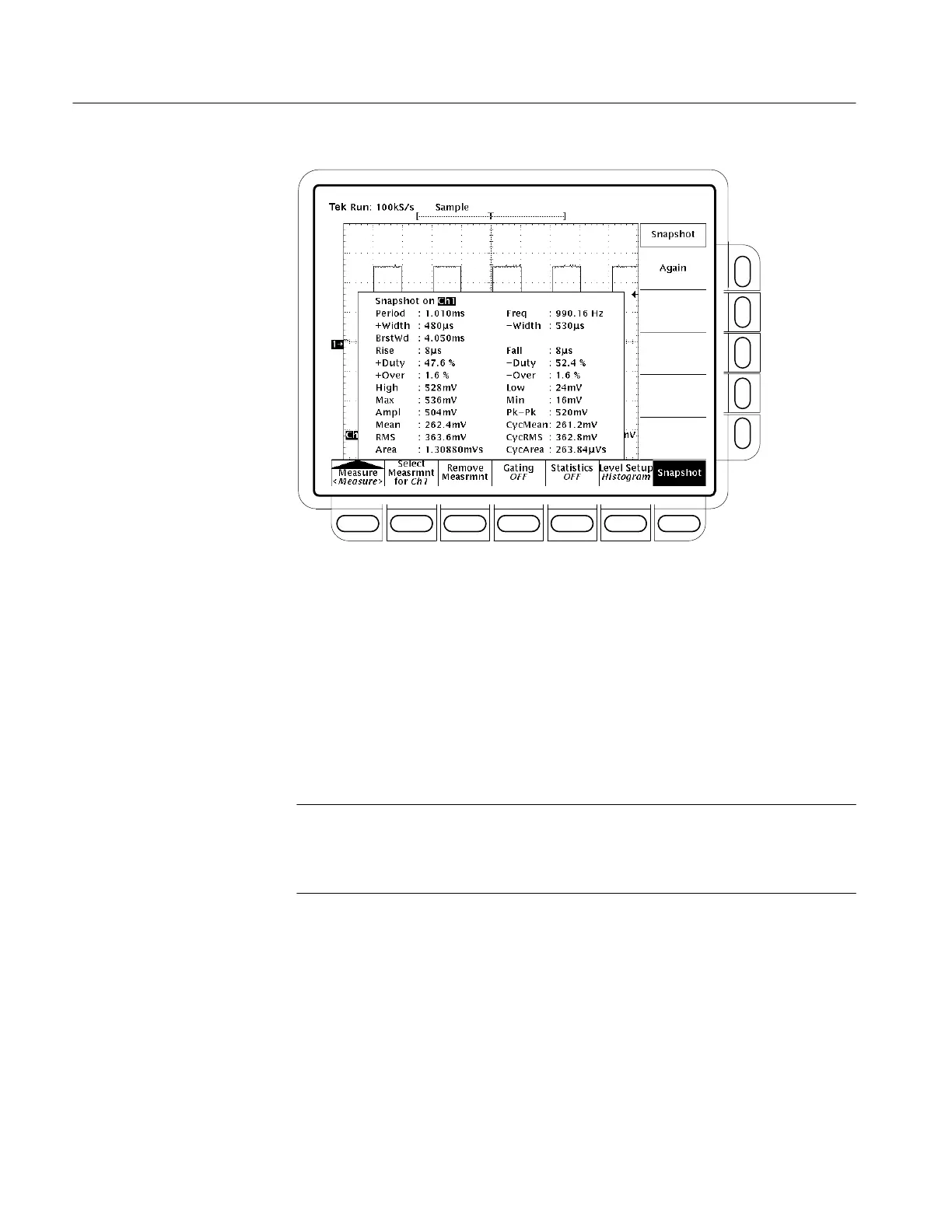

Figure 2–17: Snapshot of Channel 1
Example 4: Saving Setups
The TDS Oscilloscope can save its controls settings and recall them later to
quickly re-establish a setup. It provides ten storage locations to store up to ten
setups. It also provides a file system, so that you can also save setups to a floppy
disk, an optional hard disk, or an external Zip drive. Do the following procedures
to learn how to save, and then recall, a setup.
NOTE. Besides being able to save several complete setups, the oscilloscope
remembers all the parameter settings when you power it off. That feature lets
you power on and continue where you left off without having to reconstruct the
setup in effect when you powered off the oscilloscope.
