Application Examples
TDS1000/2000-Series Digital Oscilloscope User Manual
51

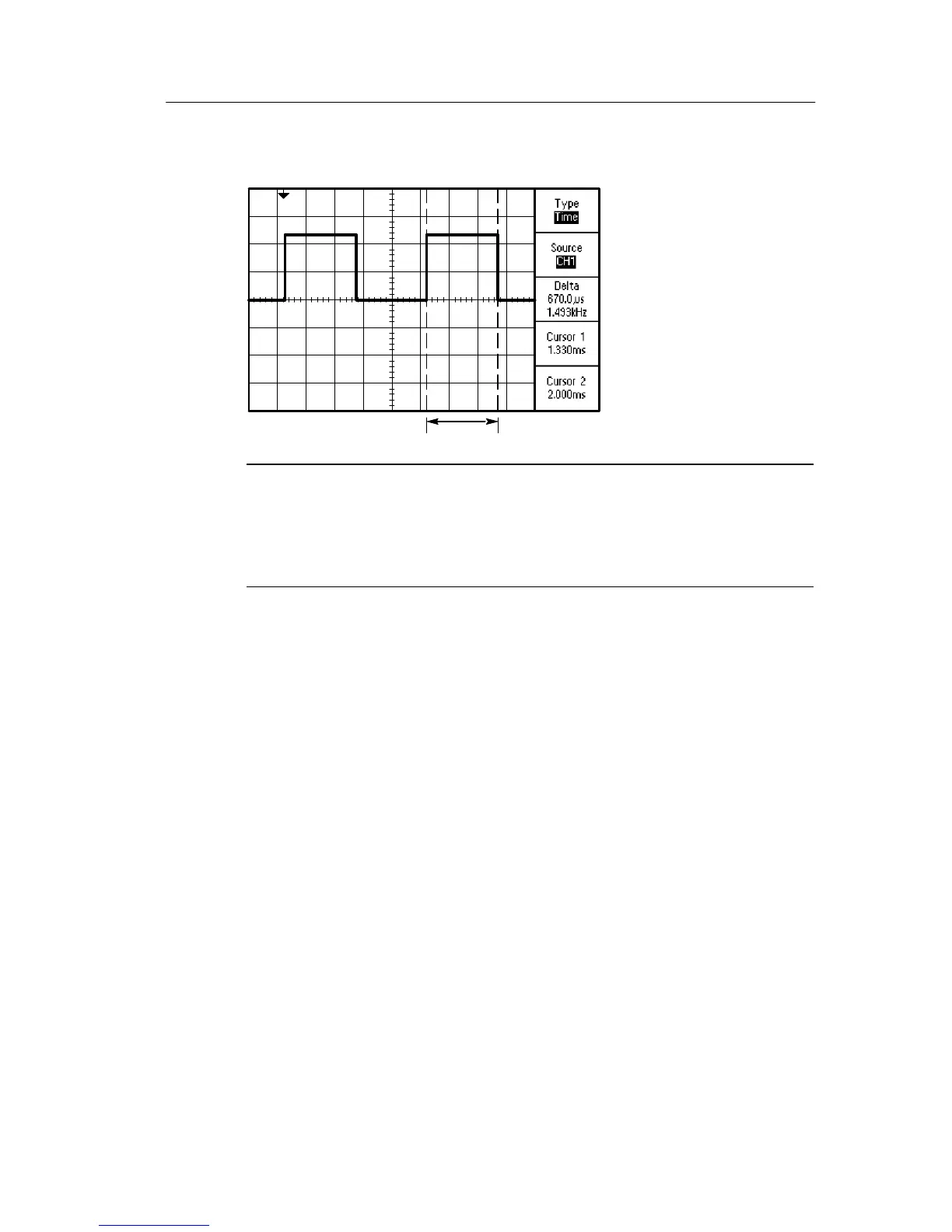

NOTE. The Positive Width measurement is available as an automatic
measurement in the Measure Me nu, described on page 94.
The Positive Width measurement also displays when you select the
Single-Cycle Square option in the AUTOSET Menu. R efer to page 82.
Measuring Rise Time
After measuring the pulse width, you decide that you need to check
the rise time of the pulse. Typically, you measure rise time between
the 10% and 90% levels of the waveform. To measure the rise time,
follow these steps:
1. Turn the SEC/DIV knob to display the rising edge of the
waveform.

Tektronix TDS2024 Specifications

General

Channels	4
Bandwidth	200 MHz
Sample Rate	2 GS/s
Record Length	2.5k points
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Display Resolution	320 x 240 pixels
Math Functions	Add, Subtract, Multiply, Divide, FFT
Input Coupling	AC, DC, GND
Trigger Modes	Auto, Normal, Single
Trigger Types	Edge, Video, Pulse
Connectivity	USB
Input Impedance	1 MΩ
Maximum Input Voltage	300 V
Interface	USB
Power Supply	100 to 240 V
Dimensions	326 mm x 158 mm x 124 mm
