Tenda A9 User Manual

21
Web UI Features
Configure the Extender Using a Computer
Extend the WiFi Network Using a Computer

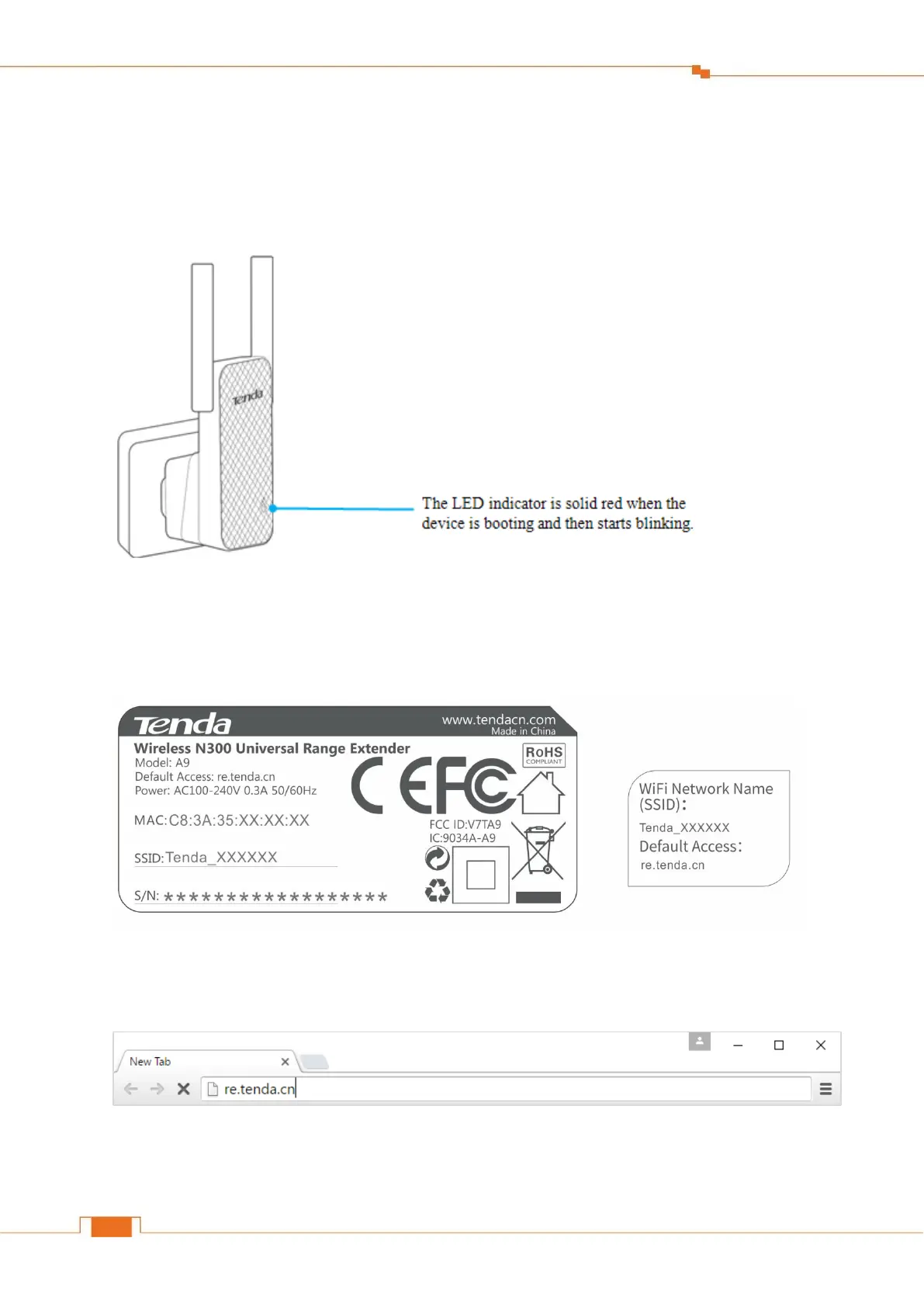

① Plug the extender (A9) into an electrical outlet near your WiFi router.
② Use your computer to search and connect to the extender’s WiFi. The default WiFi name
(SSID: Tenda_XXXXXX) is on both the label of the extender’s rear panel and the label of
the extender’s side panel, shown as below.
③ Launch a web browser, type the default login domain name re.tenda.cn or default login IP
address 192.168.0.254 in the address bar, and tap Enter on the keyboard.
④ After the extender’s web UI appears, select the WiFi name (SSID) you want to extend,
and click Next.

Tenda A9 Specifications

General

Type	Network transmitter & receiver
Ethernet LAN data rates	- Mbit/s
Maximum transfer distance	- m
Antenna type	External
Antennas quantity	2
Antenna gain level (max)	3 dBi
Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA-PSK, WPA-TKIP, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Product color	Grey, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	47.7 mm
Width	56 mm
Height	111 mm
