Tenda A9 User Manual

36
Appendix

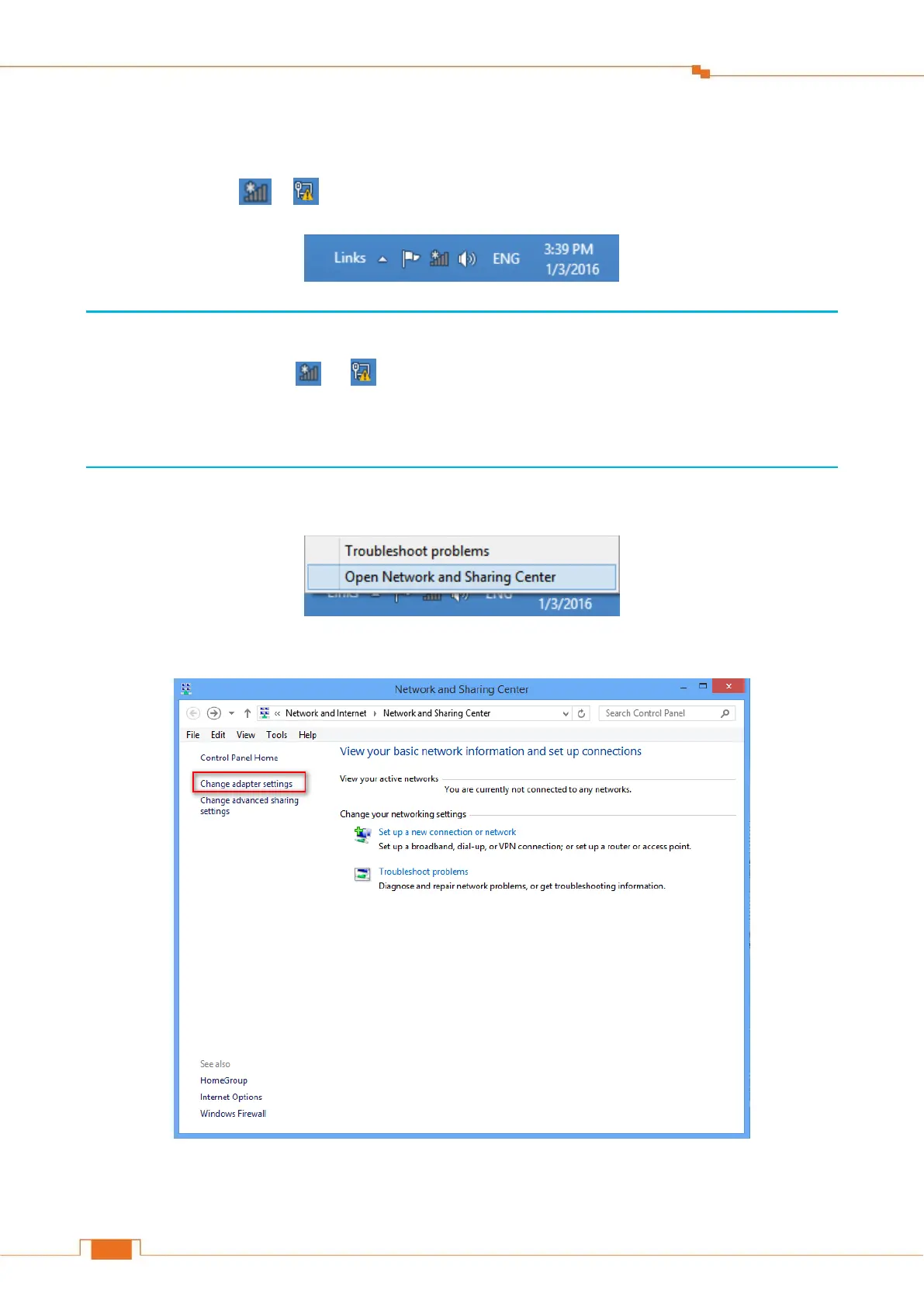

Configure your Computer
Windows 8
① Right click the icon or on the bottom right corner of your desktop.
Tips
If you cannot find the icon or on the bottom right corner of your desktop, follow steps
below: Move your cursor to the top right corner of your desktop, select Settings > Control Panel >
Network and Internet > Network and Sharing Center.
② Click Open Network and Sharing Center.
③ Click Change adapter settings.
④ Right click Wi-Fi and select Properties.

Tenda A9 Specifications

General

Type	Network transmitter & receiver
Ethernet LAN data rates	- Mbit/s
Maximum transfer distance	- m
Antenna type	External
Antennas quantity	2
Antenna gain level (max)	3 dBi
Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA-PSK, WPA-TKIP, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Product color	Grey, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	47.7 mm
Width	56 mm
Height	111 mm
