Tenda AC10 User Manual

41
5.2.2 Set up the guest network
Scenario: A group of friends are going to visit your home and stay for about 8 hours.
Goal: Prevent the use of WiFi network by guests from affecting the network speed of your
computer for work purposes.
Solution: You can configure the guest network function and let your guests to use the guest
networks.
Assume that the parameters you are going to set for the guest WiFi network:
− WiFi names for 2.4 GHz and 5 GHz networks: John_Doe and John_Doe_5G.
− WiFi password for 2.4 GHz and 5 GHz networks: Tenda+245.
− The shared bandwidth for guests: 2 Mbps.
Configuring procedures:
Step 1 Start a web browser on a device connected to the router and visit tendawifi.com to log in
to the web UI of the router.

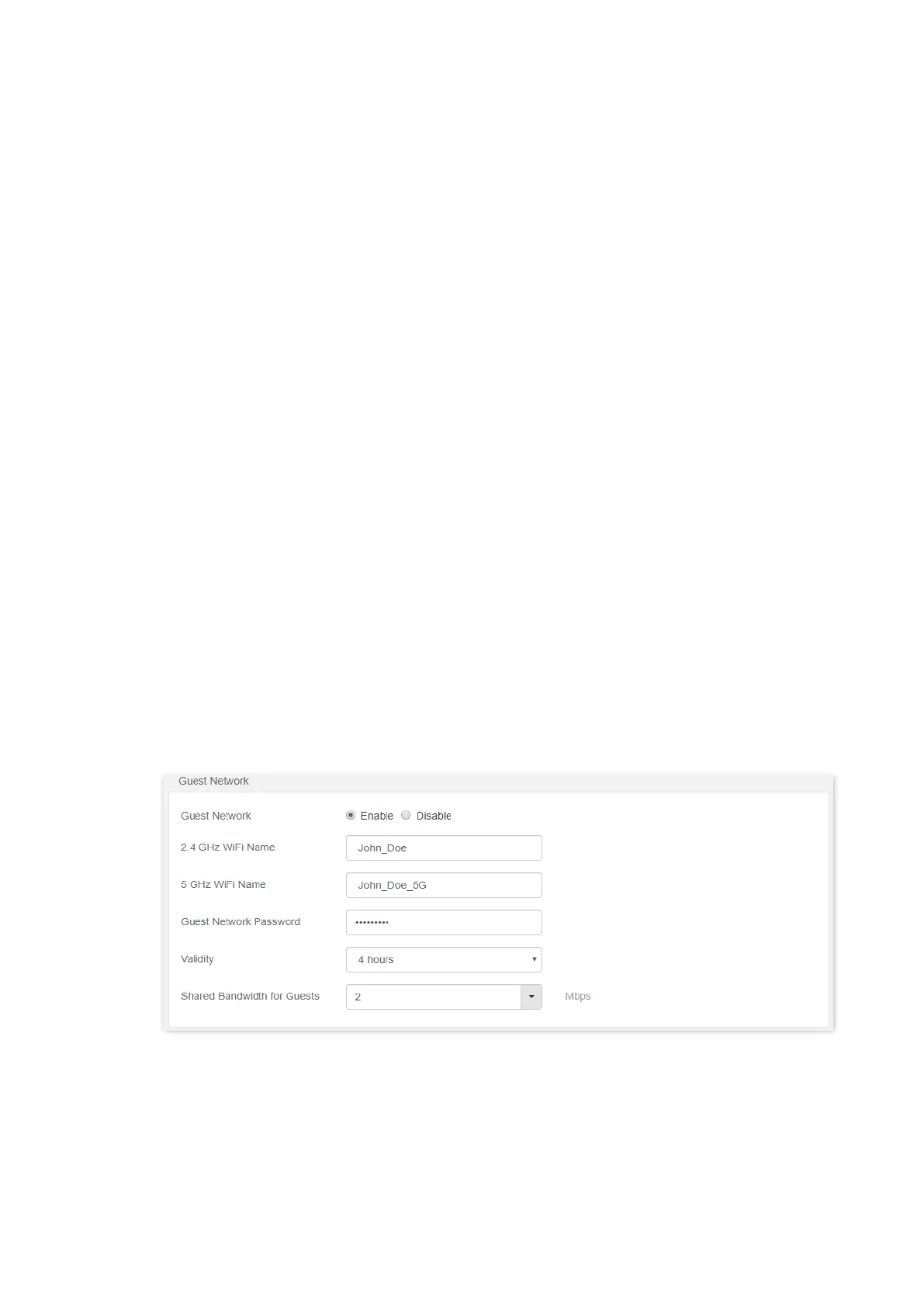

Step 2 Choose Wireless Settings > Guest Network.
Step 3 Set Guest Network to Enable.
Step 4 Change 2.4 GHz WiFi Name, which is John_Doe in this example.
Step 5 Change 5 GHz WiFi Name, which is John_Doe_5G in this example.
Step 6 Set Guest Network Password, such as to Tenda+245.
Step 7 Select a validity time from the Validity drop-down box, which is 4 hours in this example.
Step 8 Set the bandwidth in the Shared Bandwidth for Guests drop-down box, which is 2 in this
example.
Step 9 Click OK at the bottom of the page.
---End
During the 4 hours after the configuration, guests can connect their wireless devices, such as
smartphones, to John_Doe or John_Doe_5G to access the internet and enjoy the shared
bandwidth of 2 Mbps.

Tenda AC10 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Product type	Tabletop router
Product color	Black
LED indicators	LAN, System, WAN, WLAN, WPS
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Transmit power	23 dBmW
Antennas quantity	4
Antenna gain level (max)	5 dBi
VPN support	PPTP Client, PPTP Server, L2TP Client
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Output current	2 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN (RJ-45) ports	3
Cables included	LAN (RJ-45)
Package type	Box
Package weight	810 g
Number of products included	1 pc(s)
Firewall security	Forbid UDP Flood Attack, Forbid TCP Flood Attack, Forbid ICMP Flood Attack, Forbid WAN Ping from Internet, PPTP Pass Through, L2TP Pass Through, IPSec Pass Through
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Certification	CE, FCC, RoHS, BSMI, NCC, EAC, IC
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	390 mm
Width	198 mm
Height	70 mm
Weight	350 g
