Tenda AC10 User Manual

86
Parameter description
Parameter
Description
IPv6 Address
Obtaining Method
When the option is selected, the LAN port of router obtains IPv6 prefix from its
upstream device.
It is recommended to keep the default setting (Selected). If the LAN port cannot obtain
the PD prefix, it is because the upstream device does not support PD prefix delivery.
Contact your ISP to solve this problem.

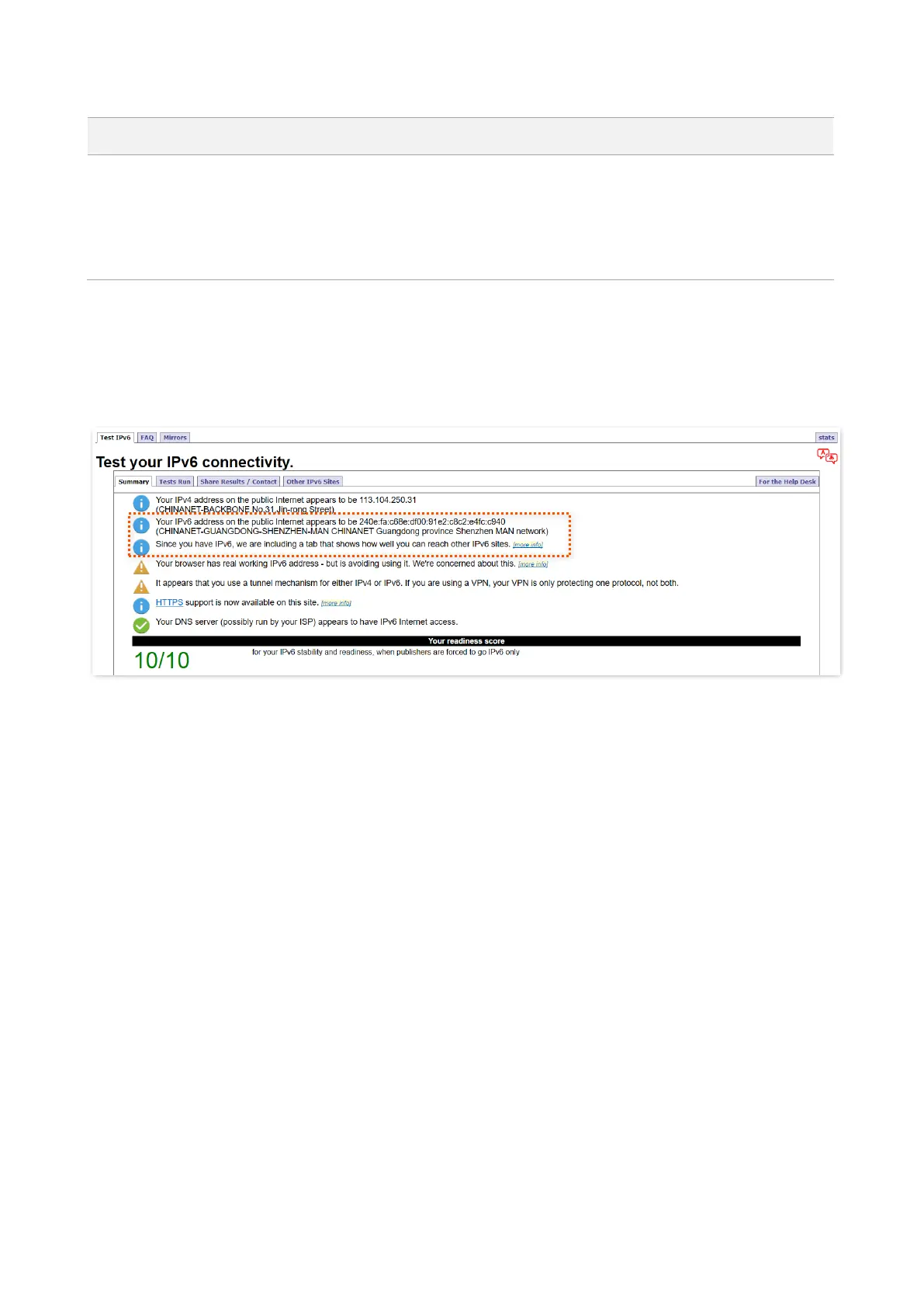

IPv6 network test:
Start a web browser on a phone or a computer that is connected to the router, and visit test-
ipv6.com. The website will test your IPv6 connection status.
When “You have IPv6” is shown on the page, it indicates that the configuration succeeds and you
can access IPv6 services.
If the IPv6 network test fails, try the following solutions:
− Navigate to the IPv6 > IPv6 Status, ensure that the IPv6 WAN address is a global
unicast address.
− Ensure that devices connected to router obtain their IPv6 address through DHCPv6.
− Consult your ISP.
10.1.3 Static IPv6
Overview
When your ISP provides you with information including IPv6 address, subnet mask, default
gateway and DNS server, you can choose this connection type to access the internet with IPv6.
Log in to the web UI of the router, and navigate to the IPv6 > IPv6 WAN Settings. When the
connection type is set to Static IPv6 Address, the page is shown as below.

Tenda AC10 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Product type	Tabletop router
Product color	Black
LED indicators	LAN, System, WAN, WLAN, WPS
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Transmit power	23 dBmW
Antennas quantity	4
Antenna gain level (max)	5 dBi
VPN support	PPTP Client, PPTP Server, L2TP Client
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Output current	2 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN (RJ-45) ports	3
Cables included	LAN (RJ-45)
Package type	Box
Package weight	810 g
Number of products included	1 pc(s)
Firewall security	Forbid UDP Flood Attack, Forbid TCP Flood Attack, Forbid ICMP Flood Attack, Forbid WAN Ping from Internet, PPTP Pass Through, L2TP Pass Through, IPSec Pass Through
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Certification	CE, FCC, RoHS, BSMI, NCC, EAC, IC
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	390 mm
Width	198 mm
Height	70 mm
Weight	350 g
