Tenda AC6 User Manual

Functions on the router’s user interface
66
Verification

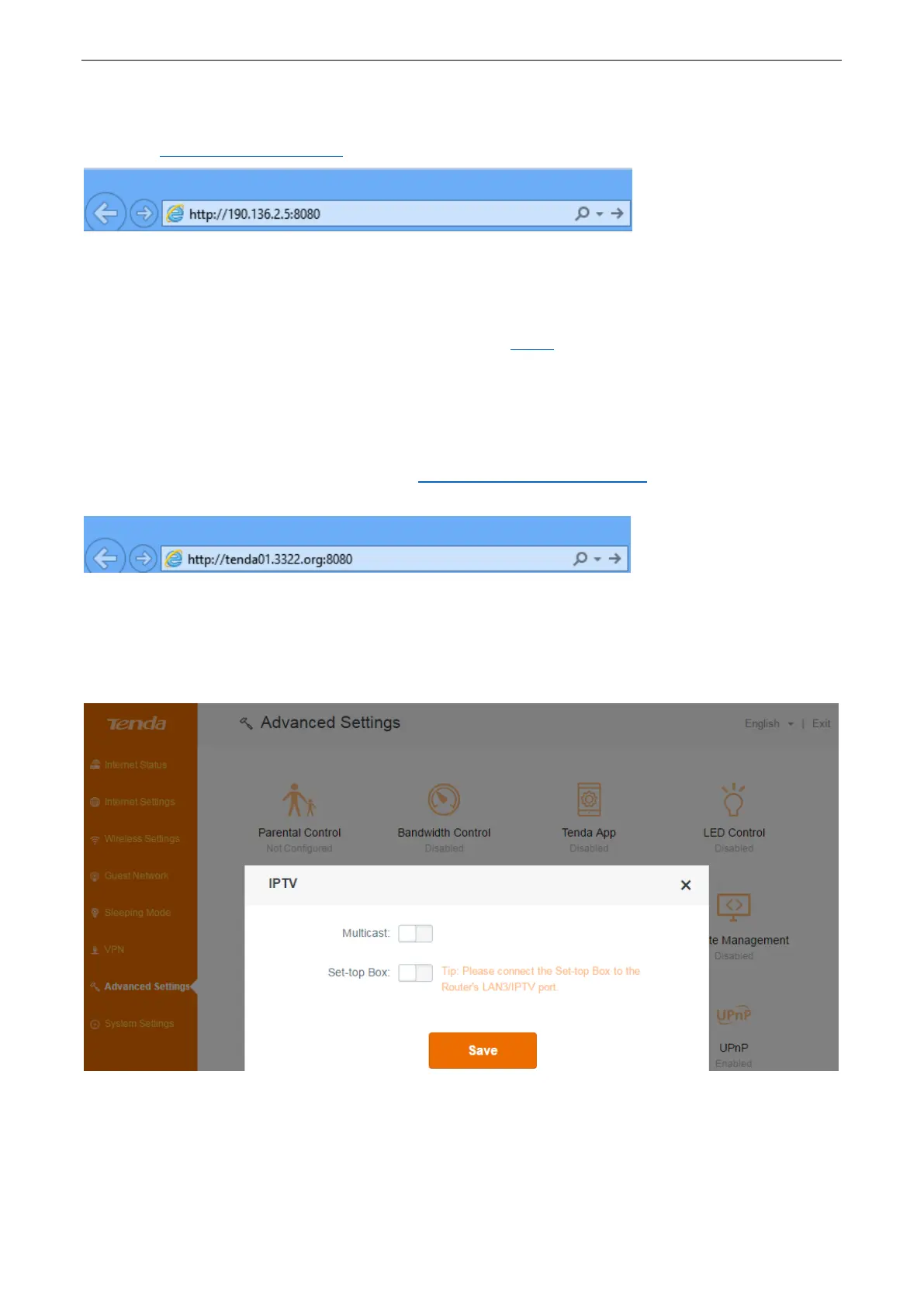

When you’re in the company, you can use your computer to access your router’s user interface by
entering “http://190.136.2.5:8080” in a browser.
Remote Web Management + DDNS
However, in the example above, the WAN IP of the router in your home may not always be static.
You can give the WAN IP a static host name through DDNS to maintain the connection between
your router and the computer in your company. Go to “DDNS” for details to configure a username,
password, and domain name.
Assume you signed up an account tenda01.3322.org from dyndns.org, the username is tenda01,
and the password is 1234567890.
After you bind a static hostname to the WAN IP, when you’re in the company, you can also access
the router’s user interface by entering “http://tenda01.3322.org:8080” in a browser of your
computer in the company.
IPTV
The wireless router supports IPTV feature.
Log in to the router’s user interface, and click Advanced Settings > IPTV.
Multicast
Multicast: If the Multicast is enabled, you can get the multicast videos resources from the internet.
If you want to watch some online videos, such as football games, you’d better enable Multicast.
1. Click Multicast button to enable the feature.

Tenda AC6 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (second band)	300 Mbit/s
VPN support	IPsec pass through PPTP pass through L2TP pass through PPTP server PPTP client L2TP client
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	4
Antenna gain level (max)	5 dBi
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Product type	Tabletop router
Product color	White
LED indicators	LAN, WAN, WPS
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	141.5 mm
Width	220 mm
Height	49 mm
