Tenda AC8 User Manual

100

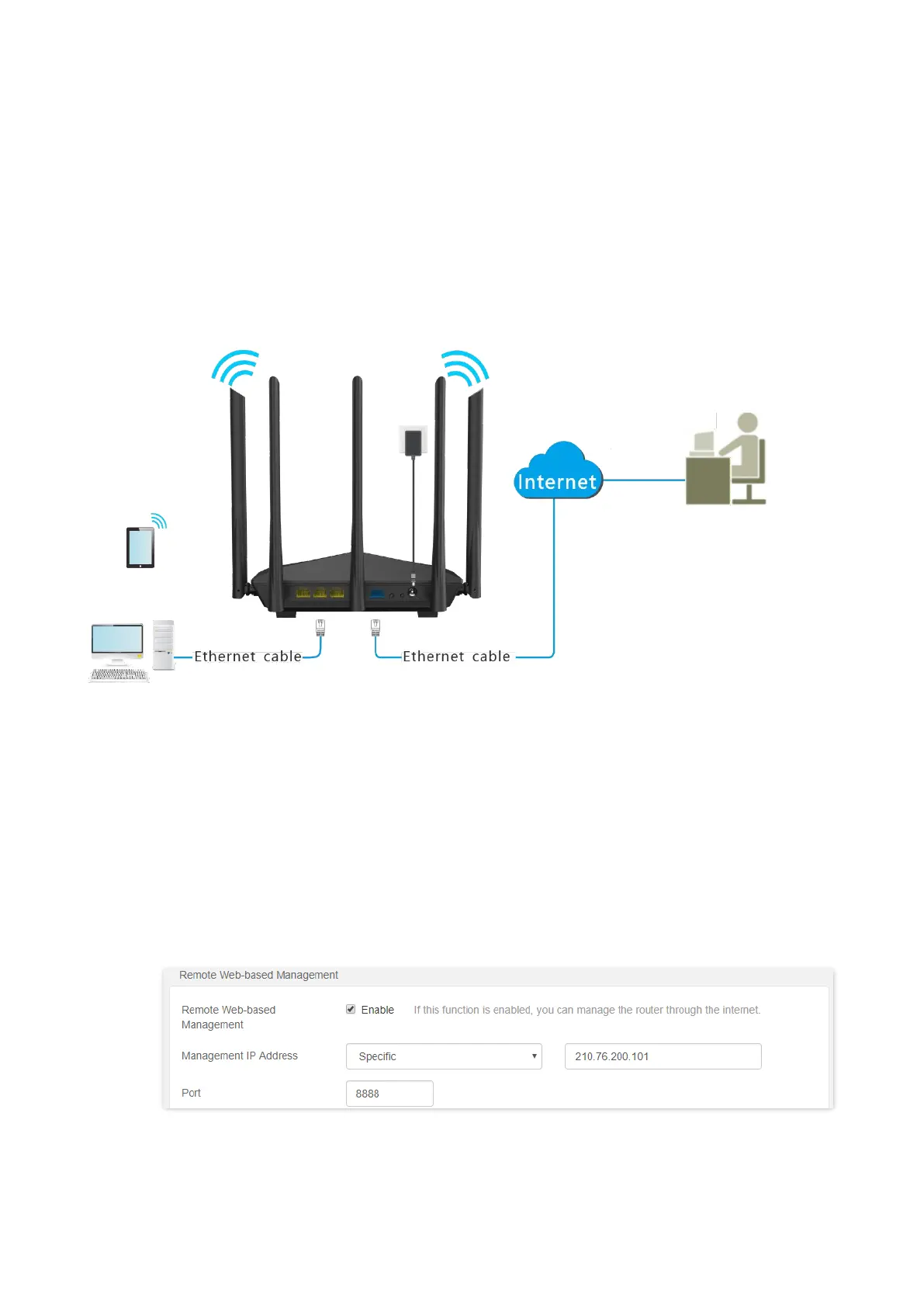

11.4.2 Enable Tenda techical support to access the web UI
Scenario: You encounter a problem in configuring the router, and the router can access the
internet.
Goal: Ask the Tenda technical support to help you configure the router remotely.
Solution: You can configure the remote management function to reach the goal.
Assume that:
− The IP address of Tenda technical support: 210.76.200.101
− The WAN port IP address of the router: 202.105.106.55
Configuring procedures:
Step 1 Start a web browser on a device connected to the router and visit tendawifi.com to log in
to the web UI of the router.
Step 2 Choose Administration > Remote Web-based Management.
Step 3 Tick Enable of Remote Web-based Management function.
Step 4 Set Management IP Address to Specific, and enter the IP address of Tenda technical
support, which is 210.76.200.101 in this example.
Step 5 Enter a port number used to access the router remotely.
Step 6 Click OK at the bottom of the page.
---End
When the configurations are completed, the Tenda technical support can access and manage the
router by visiting “http://202.105.106.55:8888” on the computer.
WAN IP address:
202.105.106.55
Tenda technical support
IP address: 210.76.200.101
Access with an IP
address

Tenda AC8 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Antenna gain level (max)	6 dBi
Output current	1 A
Output voltage	9 V
AC input voltage	200 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Firewall security	Forbid WAN PING from internet
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CE, FCC, CCC, SRRC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Package type	Box
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	127 mm
Width	200 mm
Height	33.6 mm
