Tenda AC8 User Manual

12
3 Status
Log in to the web UI of the router and choose Status to enter the page. On this page, you can:
− View internet connection status
− View online device information
− View system information
3.1 View internet connection status
You can view the internet connection status on this page.
To access the page:
Step 1 Start a web browser on a device connected to the router and visit tendawifi.com to log in
to the web UI of the router.
Step 2 Choose Status > Internet Connection Status.
---End

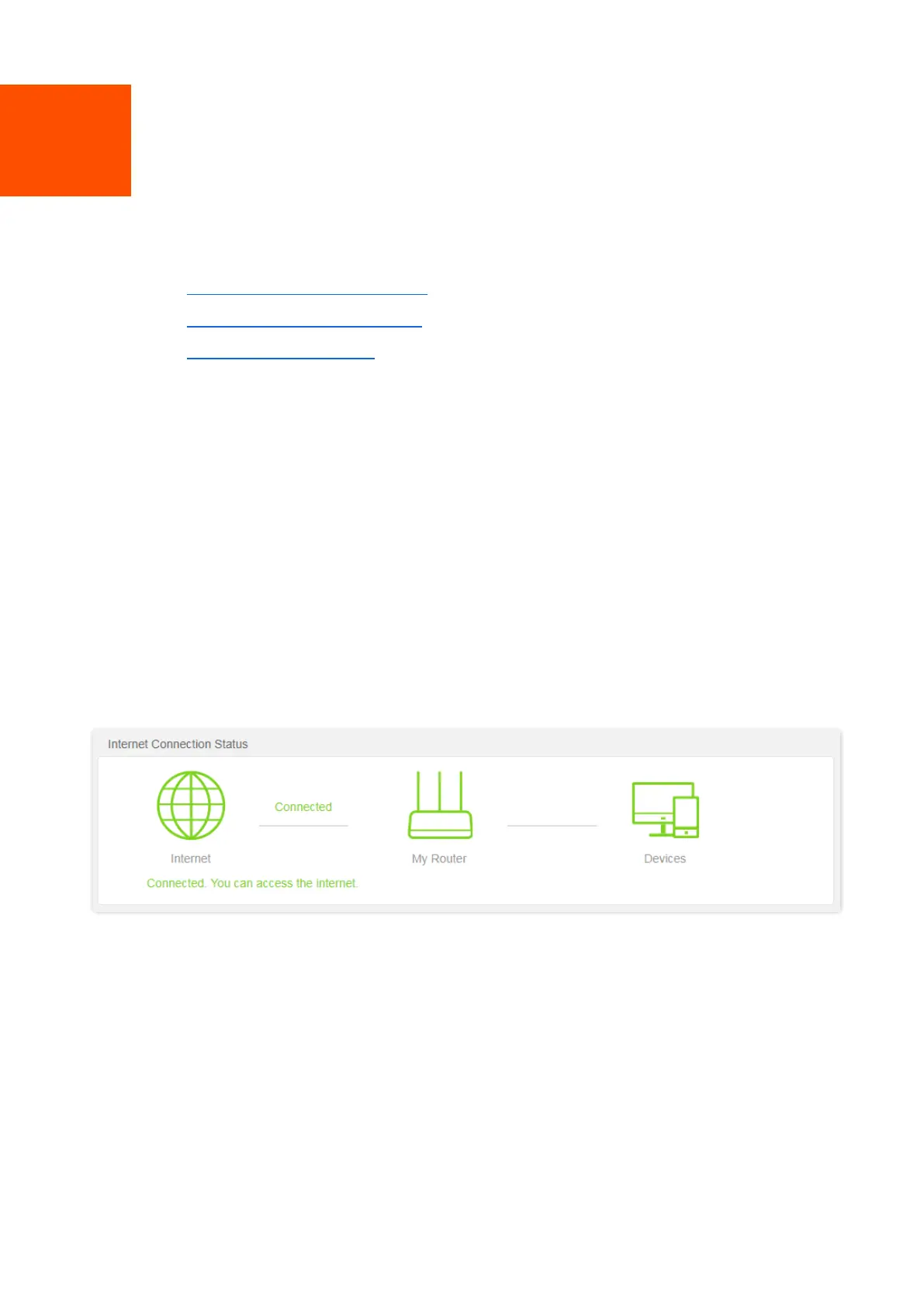

When the Internet and My Router is connected and Connected. You can access the internet. is
shown as below, the router is connected to the internet successfully and you can access the
internet via the router.
When a red cross and “Disconnected” are shown between the Internet and My Router, and WAN
port disconnected. Please connect an Ethernet cable with Internet connectivity to the port. is
shown on the page, it indicates that the Ethernet cable is not connected properly. Please ensure
that the Ethernet cable is connected properly.

Tenda AC8 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Antenna gain level (max)	6 dBi
Output current	1 A
Output voltage	9 V
AC input voltage	200 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Firewall security	Forbid WAN PING from internet
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CE, FCC, CCC, SRRC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Package type	Box
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	127 mm
Width	200 mm
Height	33.6 mm
