OPERATING MANUAL DAF290 SPECIAL VERSIONS
ThyssenKrupp Aufzugswerke GmbH
8. Special Versions (SA) - Optional -
8.1 Additional encoder (SA1)
For additional customer-requested control functions, connections
and technical data, see Appendix.
Installation and/or replacement are covered in Chapter 7 and the
Appendix

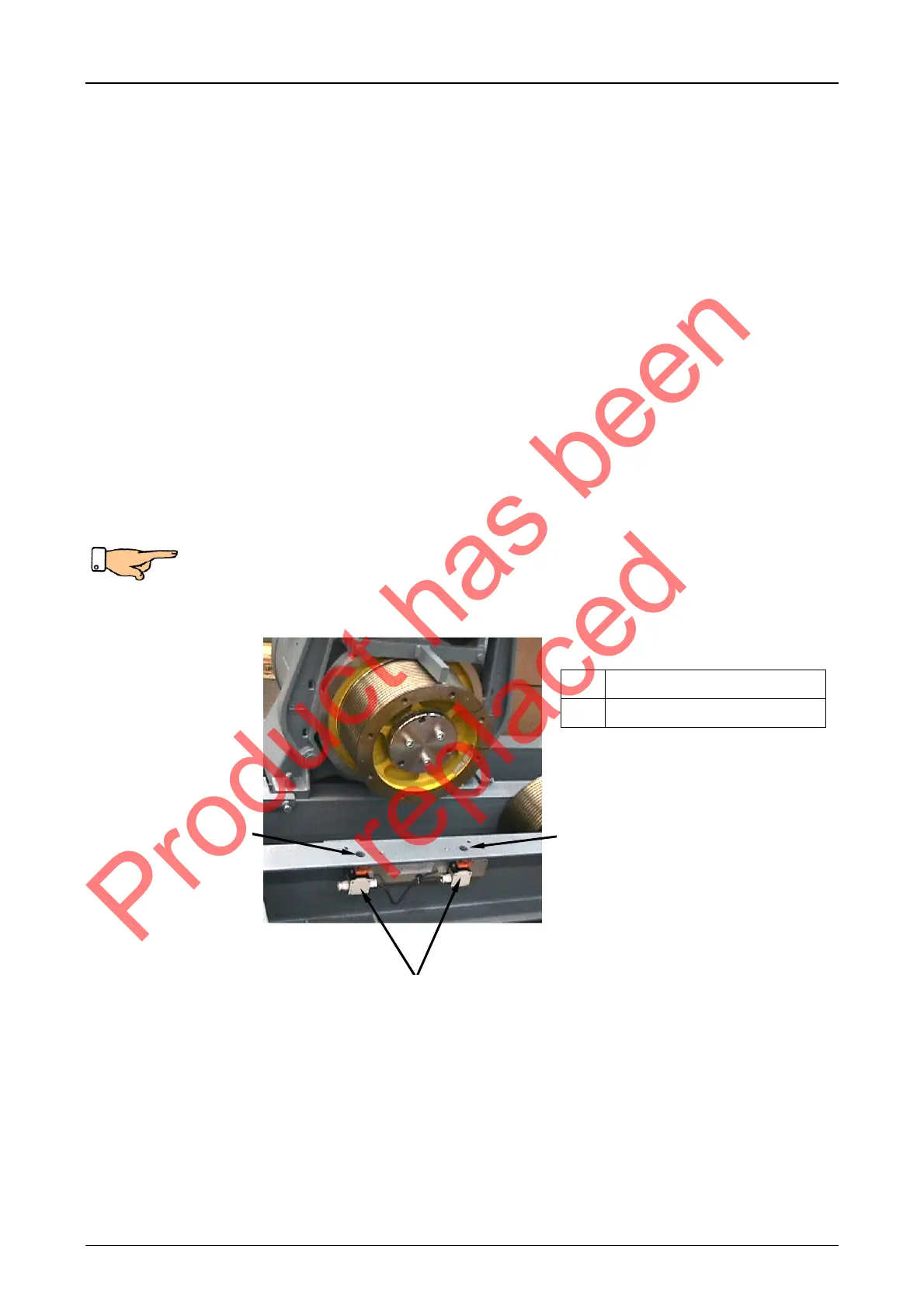

SA3 Safety switch on the machine base frame
When using the hydraulic jack on the traction sheave.
See Chapter 7.8
A switch under the mounting borehole for the hydraulic jack prevents
the drive from starting by interrupting the power supply cable.
Note: In new installations replaced by a safety switch on the rope guard
cover of the traction sheave.
1 Mounting borehole
2 Safety switch
1
1
2
Fig. 8.1
