ADJUSTMENTS/REPLACEMENTS

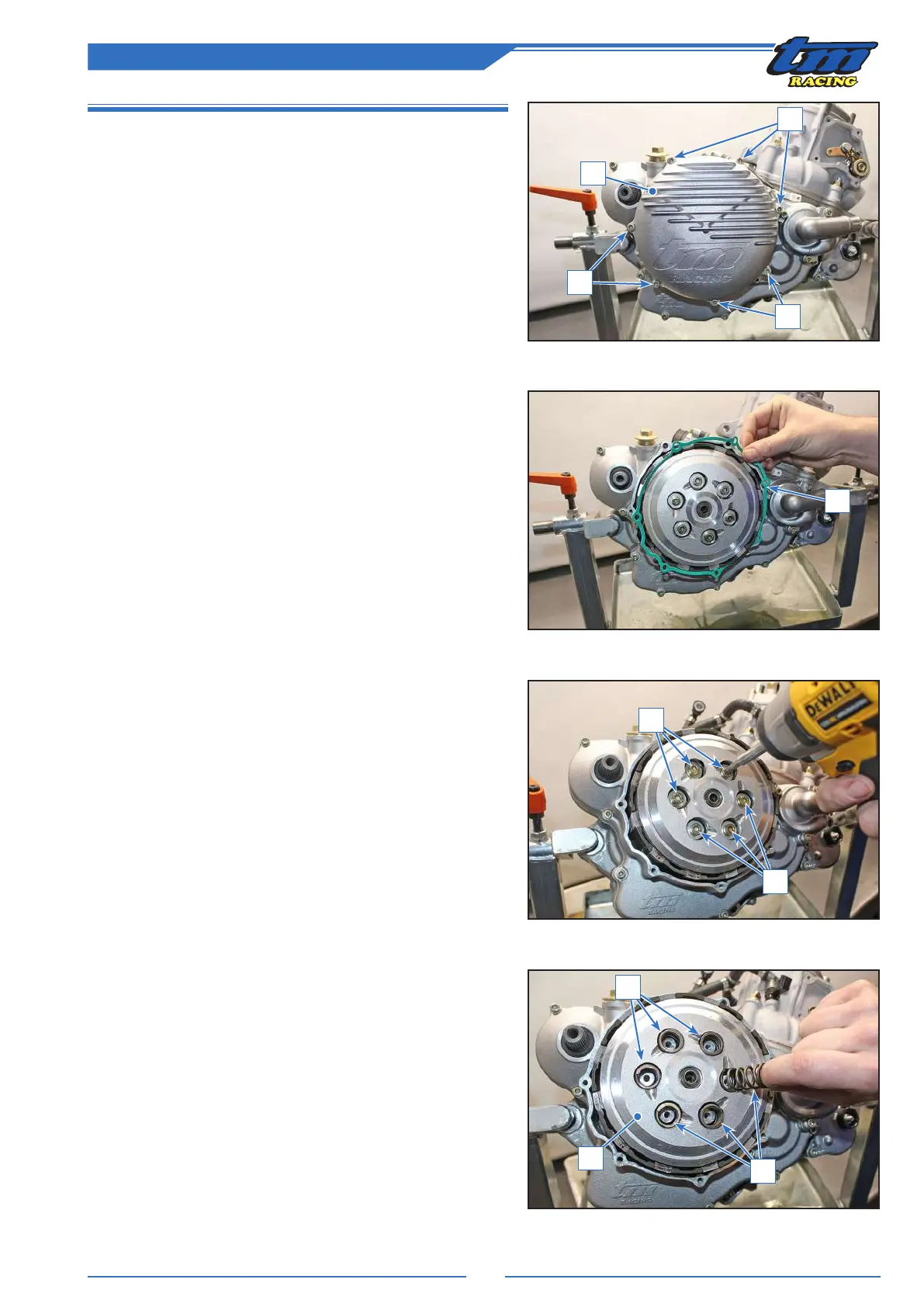

1.2 STANDARD CLUTCH REPLACEMENT

Unscrew the M5-L75 (1) and M5-L25 (2) screws, then remove the clutch
cover (3).
Remove the gasket (4).
Unscrew the screws (5) of the clutch pack.
Remove the spring (6) and the pressure plate (7).
