TOHATSU MFS 9.9C User Manual

It is recommended that you consult with
your authorized dealer for installation
and adjustment of the remote control
device.
■
Installation of the Remote Control
Cables (Box side) :
Follow the instruction manual
provided with the remote control.
■
Installation of the Remote Control
on your boat :
Follow the instruction manual
provided with the remote control.
■

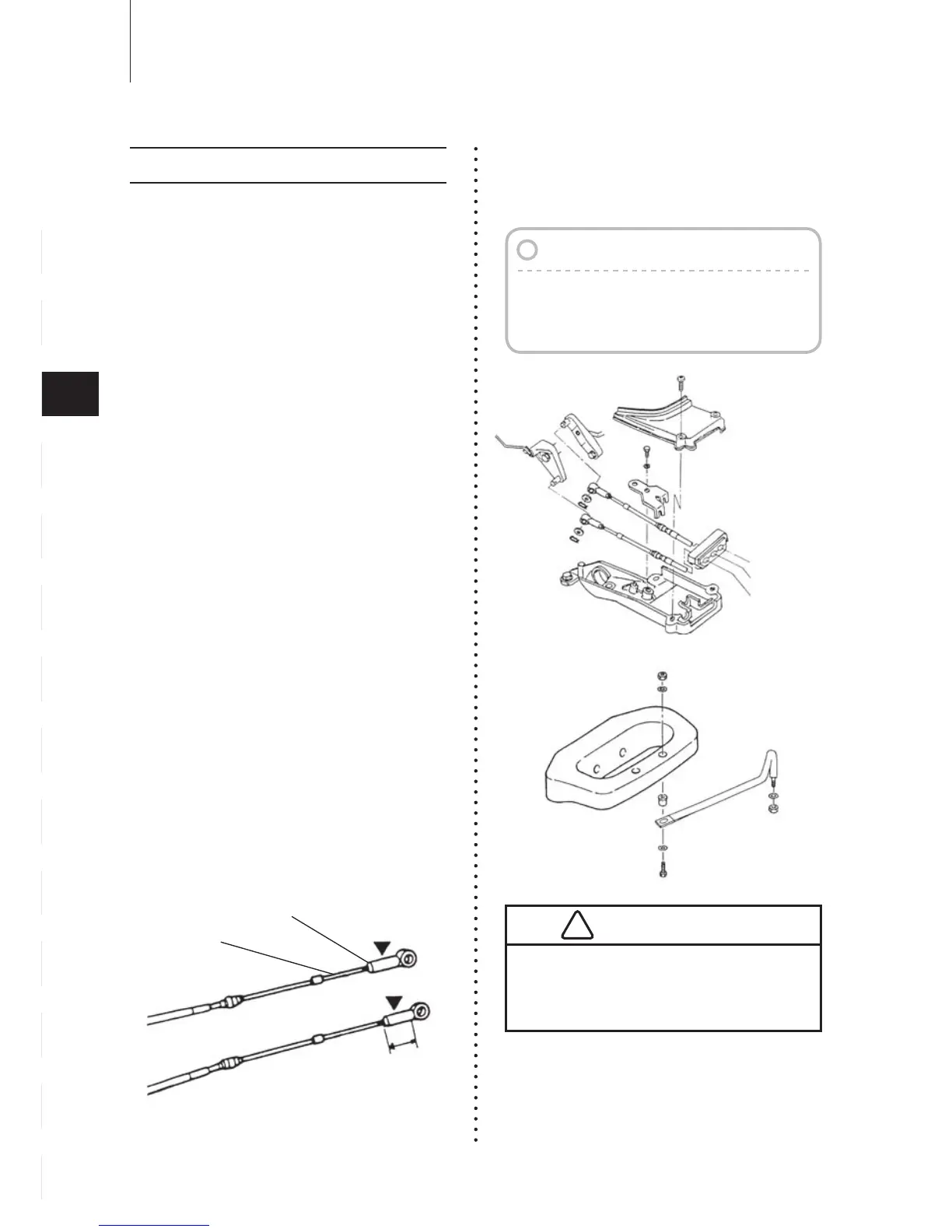

Installation of the Remote Control
Cable (engine side) and the Cord
Assembly (Wiring Harness) :
①
Fitting of connecting parts to
cables
Screw the tip of the remote control
cable into the cable joint up to
approx. 10 mm (0.39 inch), then lock
them with a lock nut. Apply grease to
the hole of the cable joint.
②
Fitting of Remote Control Cable to
Engine.
16
14
13
12
11
10
9
8
7
6
5
4
3
2
1
INSTALLATION
2. Installing the remote control devices
Note
Put the control lever in the Neutral
position and the Free Accel lever in
the fully closed position.
Cable joint
Approx. 10mm
(0.39 inch)
Remote control cable
Lock nut
Cable
Harness B
Shift Cable
Throttle Cable
Drag Link
Be careful not to loop the remote
control cables to a diameter of 406 mm
(16 inches) or less.
!

