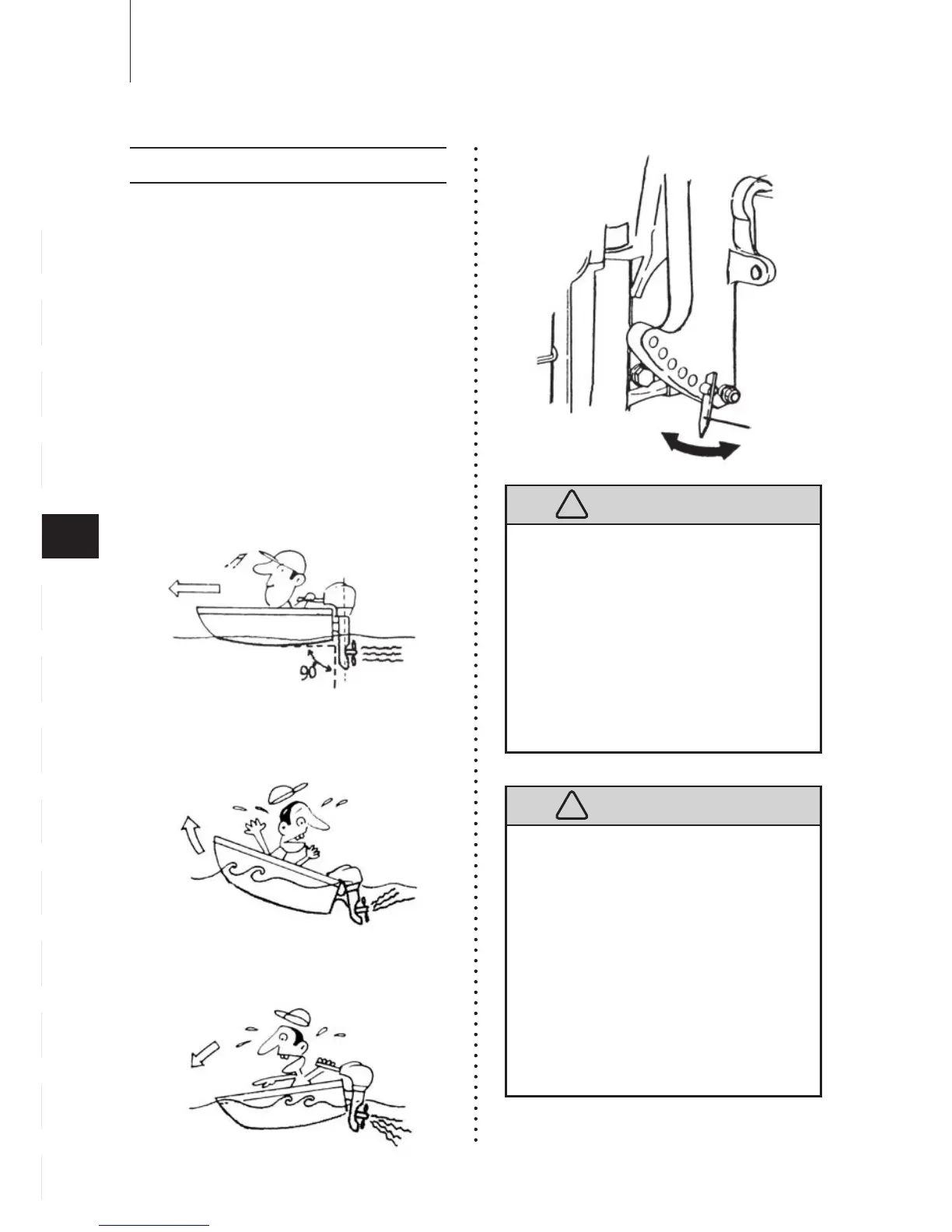

The trim angle of the outboard motor
can be adjusted to suit the transom
angle of the hull, and load conditions.
Choose an appropriate trim angle
that will allow the anti-ventilation plate
to run parallel to the water surface
during operation.
MF, EF, EP type
■
Proper trim angle
The position of the thrust rod is
correct if the hull is horizontal during
operation.
■
Improper trim angle
Set the thrust rod lower if the bow of
the boat rises above horizontal.
■
Improper trim angle
Set the thrust rod higher if the bow of
the boat is below horizontal.
32
14
13
12
11
10
9
8
7
6
5
4
3
2
1
5. Trim angle
ENGINE OPERATION
Perpendicular to the
water surface
●
Do not put hand or finger in between
outboard motor body and clamp
bracket when adjusting trim angle to
prevent injury in case the outboard
motor body falls.
●
Unsuitable trim position can cause
loss of control of boat.
When testing a trim position, run
boat slow initially to see if it can be
controlled safely.
Excessive trim up or down may lead
to unstable boat operation, potentially
causing the steering difficulty that
leads to accident during cruising.
●
Do not cruise at high speed if
improper trim position is suspected.
Stop the boat and readjust trim
angle before continuing cruise.
●
For outboard motor model with PTT
switch on the bottom cowl, do not
operate the switch during cruising,
or control of boat may be lost.
