③

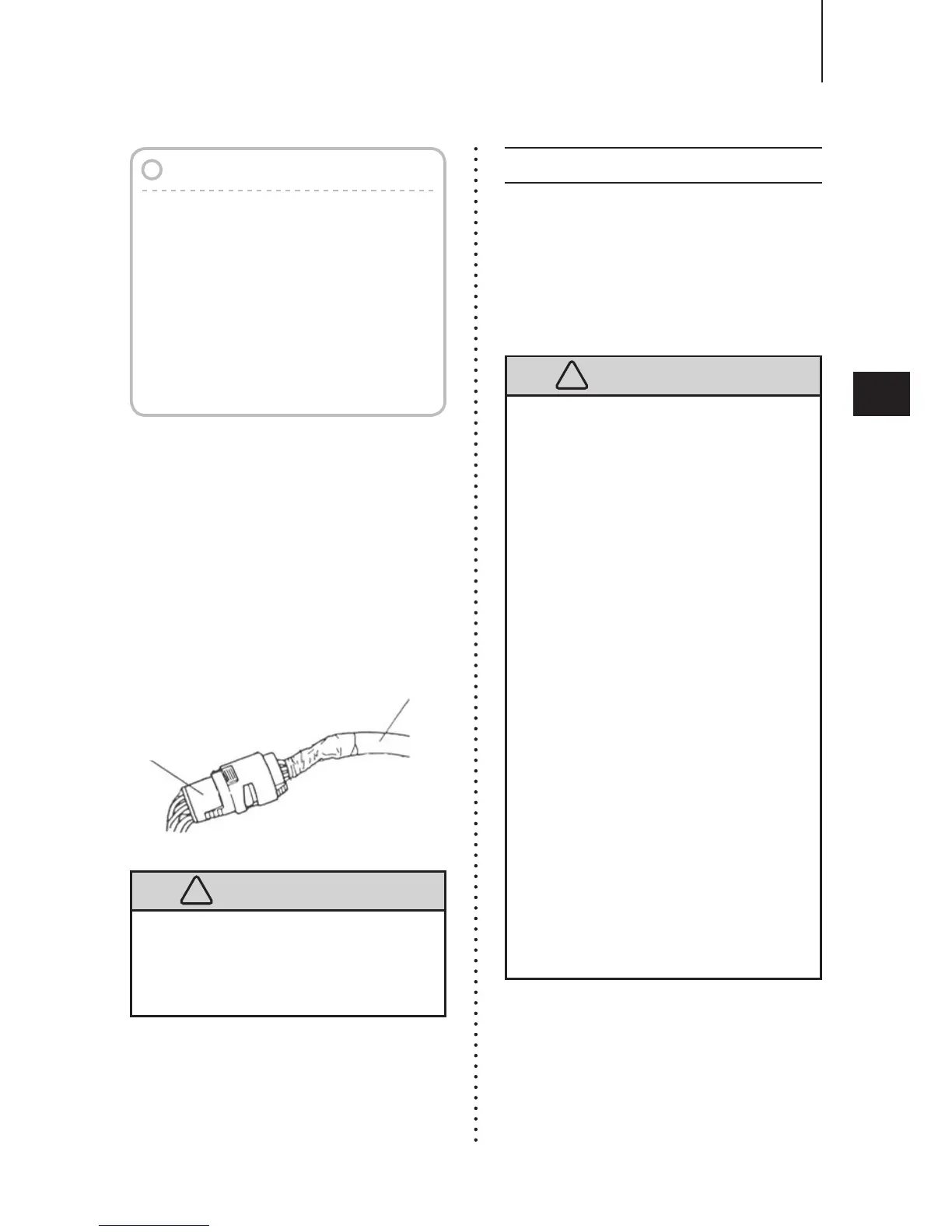

Connecting the Cord assembly
(Wiring Harness)
Connect cable harness B to cable
harness A.
Location of the connectors is near the
recoil starter of starboard side in the
cowl.
①
P l a c e t h e b a t t e r y b o x i n a
convenient position away from
possible water spray. Securely
fasten both the box and the battery
so they do not shake loose.
17
1
2
3
4
5
6
7
8
9
10
11
12
13
Note
Confirm whether the shift of engine
is in gear when shifting the control
lever of the Remote Control to its first
position in Forward or Reverse (about
32˚) and whether the throttle valve
is fully open when shifting the lever
further.
Confirm whether the throttle valve is
fully closed when the control lever is
shifted to the Neutral position.
INSTALLATION
Cable Harness B
(From remote control)
Cable Harness A
(Outboard motor side)
3. Installing the battery
Do not disconnect the cord assembly
when the outboard motor is in
operation or you will lose control of the
outboard motor.
Battery electrolyte contains sulfuric acid
and thus is hazardous, causing a burn
if it comes in contact with your skin, or
poisonous if swallowed.
KEEP BATTERY AND ELECTROLYTE
AWAY FROM REACH OF CHILDREN
When handling the battery, be sure to;
●
Read all warnings shown on the
battery case
●
Prevent electrolyte from coming in
contact with any part of your body.
Contact can cause serious burn or,
if it comes in contact with your eye,
loss of sight. Use safety glasses and
rubber gloves.
In case battery electrolyte comes in
contact with :
●
Skin, flush thoroughly with water.
●
Eye, flush thoroughly with water,
and then seek immediate medical
treatment.
In case battery electrolyte is swallowed :
●
Seek immediate medical treatment.
To Next Page
