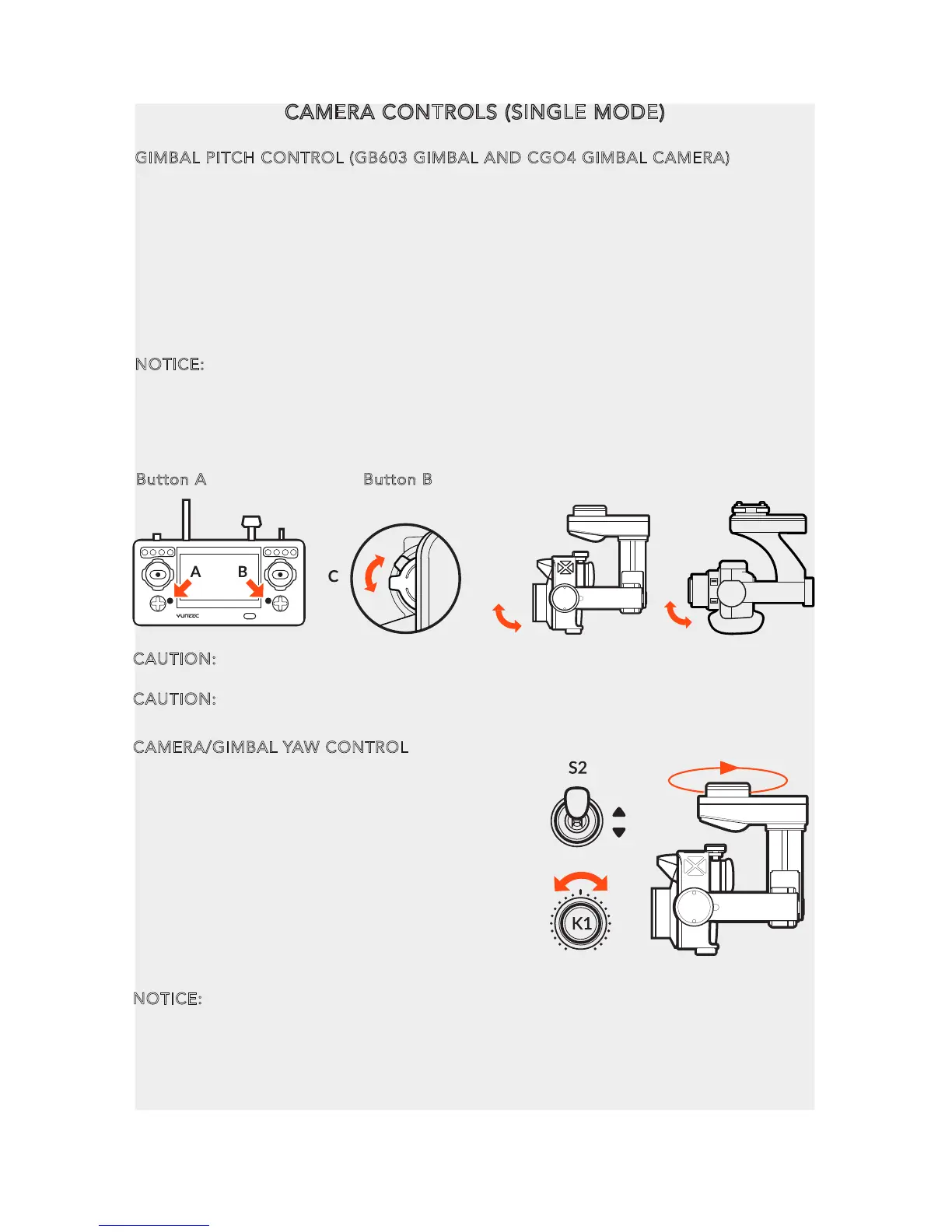

CAMERA CONTROLS (SINGLE MODE)
GIMBAL PITCH CONTROL (GB603 GIMBAL AND CGO4 GIMBAL CAMERA)
There is a gimbal pitch mode switch on ST24---S1. When the switch is in up/middle
position, the GB603 gimbal/CGO4 gimbal camera is in Angle Mode. Use the slider (C)
on the left side of the ST24 to set the pitch/tilt position of the gimbal/gimbal camera.
When the S1 is in bottom position, the gimbal/gimbal camera is in Velocity Mode.
When the slider (C) is in the middle position, it means the velocity rate is 0 for the
GB603/CGO4, and it will stop pitching up/down. When the slider (C) is above the
middle position, the GB603/CGO4 will start pitching up. When the slider (C) is below
the middle position, the GB603/CGO4 will start pitching down. The distance between
the slider(C) and the middle position decides the velocity rate, the further distance,
the higher velocity it would be.
NOTICE: When the CGO4 is attached to the TORNADO H920, the control slider CGO4
Zoom In/Out Control Slider (K6)-located on the right side of the controller-is activated.
Users can zoom in or zoom out by switching K6. When zooming in, CGO4 gimbal
camera in pitch and yaw directions will become slow in the velocity mode. When
zooming out, the movement speed of the CGO4 gimbal camera in pitch and yaw
directions will become fast in the velocity mode.
CAUTION:
You MUST stop recording video in order to take still photos. It will take
approximately 5 seconds to capture a still photo and before you can take another.
CAUTION: ALWAYS stop recording video before turning off the TORNADO
H920/CGO4 to avoid data loss.
CAMERA/GIMBAL YAW CONTROL
There is a gimbal yaw mode switch on ST24---S2.
When the switch position is up and middle, the
gimbal/gimbal camera is in Follow Mode. The
yaw control of the gimbal/camera is now
disabled. The gimbal/camera will adjust its yaw
direction according to the aircraft’s movements.
When the switch position is down, the
gimbal/gimbal camera is in Global Mode. The
Gimbal Yaw control knob (K1) is now activated.
When the user rotates the knob in the right
direction, the gimbal/gimbal camera will rotate
to the right side, and vice versa.
Button A = Take Still Photo Button B = Start/Stop Recording Video
24
NOTICE: When the CGO4 is attached to the TORNADO H920, the control slider CGO4
Zoom In/Out Control Slider (K6)-located on the right side of the controller-is activated.
Users can zoom in or zoom out by switching K6. When zooming in, CGO4 gimbal
camera in pitch and yaw directions will become slow in the velocity mode. When
zooming out, the movement speed of the CGO4 gimbal camera in pitch and yaw
directions will become fast in the velocity mode.
