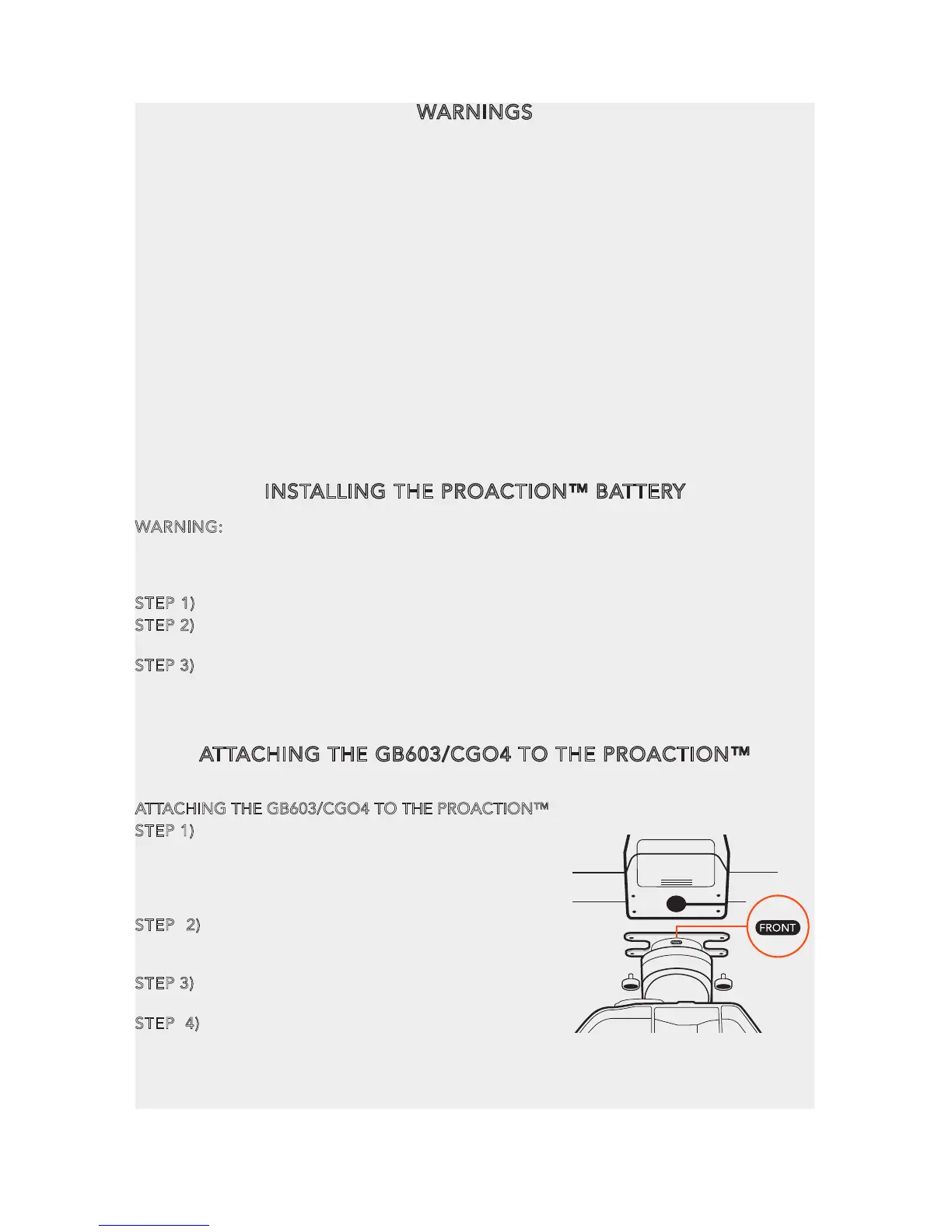

WARNINGS

During the charging process, a specific quantity of electrical energy is charged into

the battery.

The maximum permissible charge current varies depending on the type and performance

of the battery. The relevant information is supplied from the battery manufacturer.

Only batteries that are stated to be capable of quick-charge are allowed to be

charged at rates higher than the standard charging current.

Always refer to the user manual of the battery about the charging methods,

recommended charging current and charging time. Especially, the lithium battery

should be charged according to the charging instruction provided by the manufacturer

strictly. Special attention should be paid to the connection of lithium battery.

Do not attempt to disassemble the battery pack.

Do not use the battery when the battery is humid.

Please pay attention that lithium battery packs can be wired both in parallel and in series.

In the parallel connection: With the total voltage staying the same, the battery’s

capacity is calculated by multiplying single battery capacity by the number of cells.

The voltage imbalance may cause fire or explosion. The lithium battery is

recommended to charge in series.

INSTALLING THE PROACTION™ BATTERY

WARNING: Lithium batteries are significantly more volatile than alkaline, NiCd or

NiMH batteries. All instructions and warnings must be followed exactly to prevent

property damage and/or serious injury as the mishandling of Lithium batteries can

result in fire.

STEP 1) Slide the battery cover / door from the ProAction™ with slight force.

STEP 2) Install the battery in the battery compartment with the side of balancing head

facing upwards. And then connect the Power Connector to the gimbal.

STEP 3) Once you've installed the battery, put the power line inside the compartment.

Slide the battery cover / door downward with slight force and ensure you hear and feel

a noticeable 'click' indicating the battery cover / door has been closed securely.

ATTACHING THE GB603/CGO4 TO THE PROACTION™

STEP 1) Withdraw the Gimbal Cord from the left side

first, and then securely attach the GB603/CGO4 to

the ProAction™ with Gimbal Fastening Screws, while

ensuring the "Front" label on the Yaw Motor / Top

Motor is facing toward the FRONT of the ProAction™.

STEP 2) Insert the Gimbal Cord into the center

carrying handle port with the side of pins facing

upward.

STEP 3) Install the Fastening Accessory Socket to the

Camera (Take Panasonic camera GH4 as examples).

STEP 4) Flip the camera’s LCD screen for better

view- taking, fold out and then fold in.

Tornado H920 User Manual
