Brake Maintenance
Adjusting the Service Brakes
Adjust the service brakes when there is more than 13 mm (1/2 inch) of free travel of the
brake pedal, or if the brakes slip. Free travel is the distance the brake pedal moves before
you feel braking-pedal resistance.
1. Prepare the machine for maintenance.
2. Disengage the pedal-locking latch between the brake pedals so that both pedals work
independently of each other.
G425404

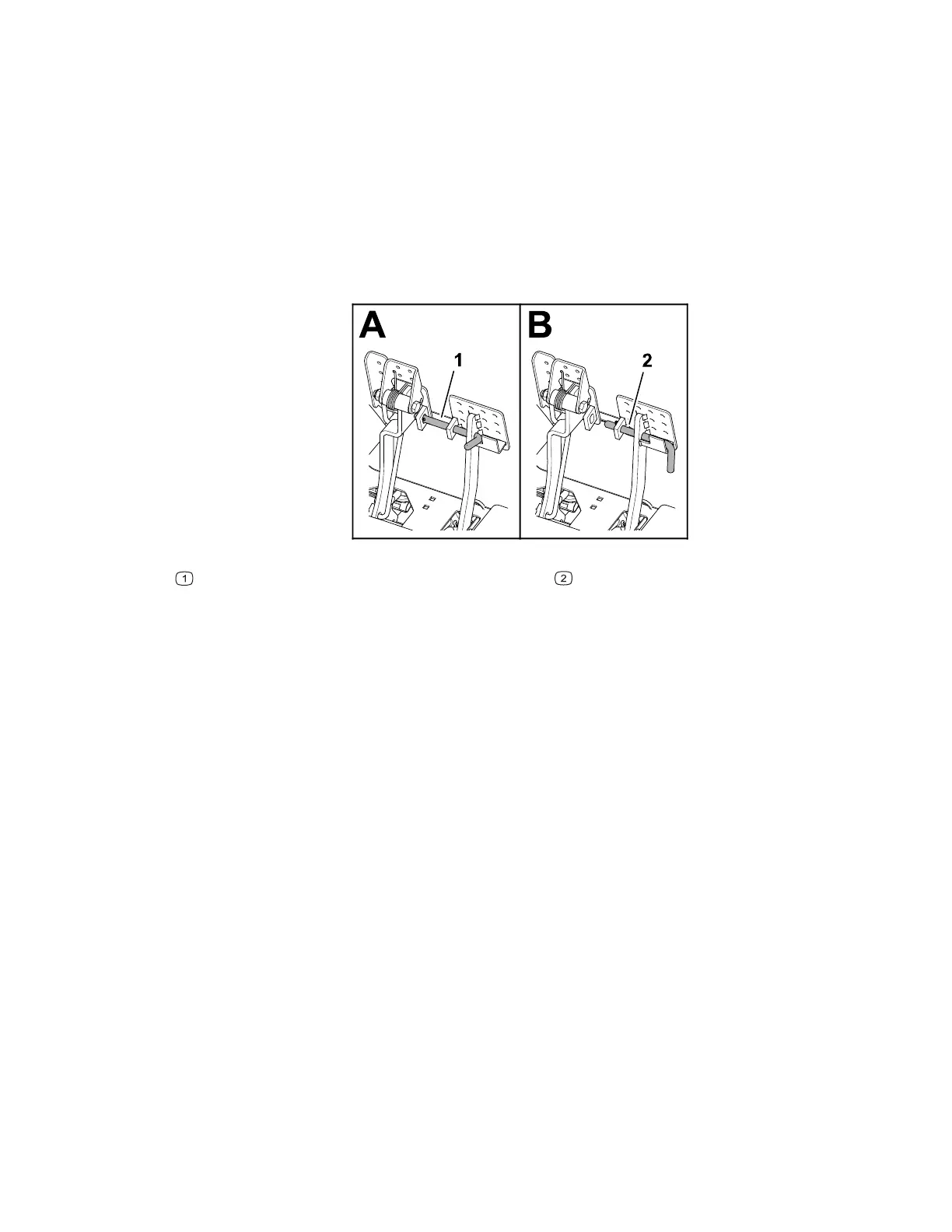

Brake pedals locked
Brake pedals unlocked
3. Loosen the front jam nut on the threaded end of the brake cable.
Maintenance: Brake Maintenance Page 6–42 3466-702 A
