Adjusting the Cutting Unit-Turnaround Height

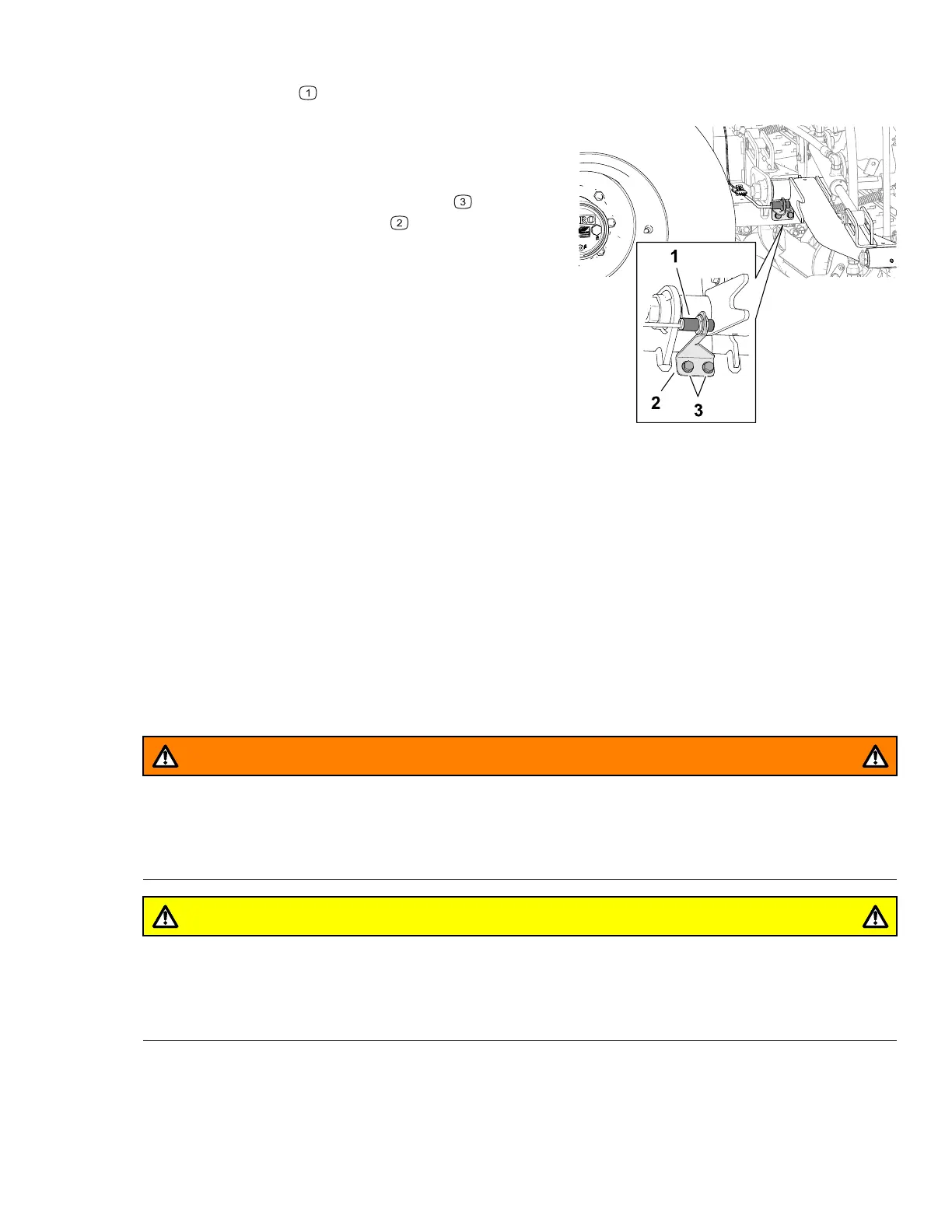

The lift-arm switch is located behind the right, front lift arm (cutting unit #5).
G424043
1. Park the machine on a level surface, lower the
cutting units, engage the parking brake, shut
off the engine, and remove the key.
2. Loosen the 2 flange-head screws
that
secure the switch bracket
to the carrier
frame for the front cutting unit-lift arms.
3. Move the switch bracket as follows:
• To increase the cutting unit-turnaround
height, move the bracket up.
• To decrease the cutting unit-turnaround
height, move the bracket down.
4. Tighten the 2 flange-head screws.
Folding the Roll Bar
• Keep all nuts, bolts, and screws correctly torqued ensure that the equipment is in safe
working condition.
• Replace worn or damaged parts for safety.
• Ensure that the seat belt and mountings are in safe working order.
• Wear the seat belt when the roll bar is raised and no seat belt when the roll bar is
lowered.
You can fold the roll bar down to allow access into areas with restricted height.
WARNING
The machine does not have a rollover protection system (ROPS) when the roll bar is
folded down and should not be considered a ROPS.
Do not wear a seatbelt when the roll bar is lowered.
CAUTION
When lowering and raising the roll bar, your fingers may get pinched between the
machine and the roll bar, which could result in minor or moderate injury.
Use caution when lowering and raising the roll bar.
Operation: During Operation Page 5–18 3466-702 A
