IgnitionSwitch
Insertthekeyintotheswitch(Figure15)andturnit
clockwisetotheSTARTpositiontostarttheengine.
Releasethekeyassoonastheenginestarts;
thekeymovestotheONposition.Turnthekey
counterclockwisetotheSTOPpositiontoshutoffthe
engine.
ParkingBrakeLever
Pullthebrakelever(Figure16)toengagetheparking
brake.Disengageitbysqueezingthereleaselever
ontheundersideofthebrakeleverandloweringit
tothereleasedposition.Engagetheparkingbrake
wheneveryouleavethemachine.

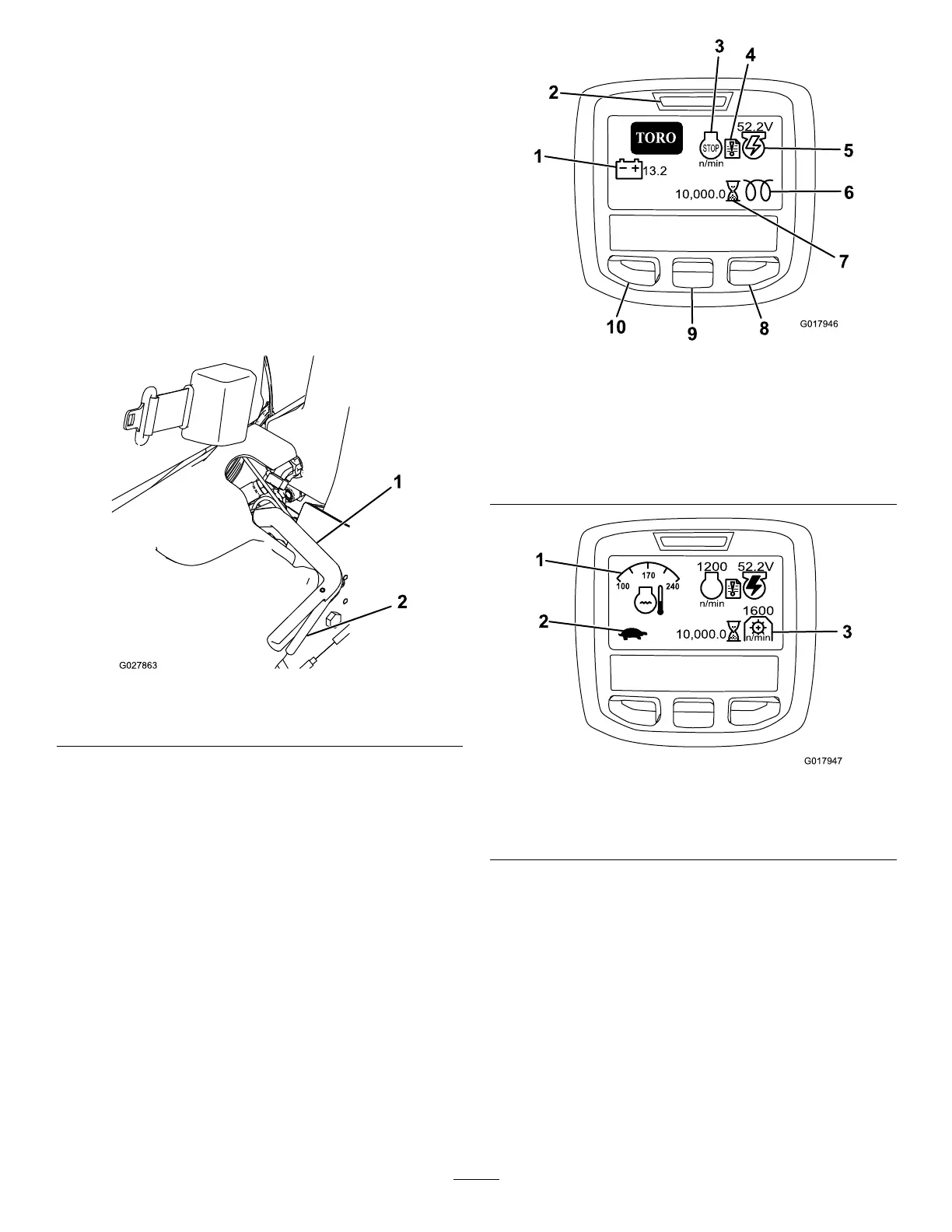

g027863
Figure16
1.Parking-brakelever2.Releaselever
InfoCenterControl
UsingtheInfoCenterLCDDisplay
TheInfoCenterLCDdisplayshowsinformationabout
yourmachinesuchasthegeneratorstatus,the
speed,andvariousdiagnosticsandotherinformation
aboutthemachineandthebatterypack.Figure17
andFigure18illustratethesplashscreenandmain
informationscreenoftheInfoCenter.Youcanswitch
betweenthesplashscreenandmaininformation
screenatanytimebypressinganyoftheInfoCenter
buttonsandthenselectingtheappropriatedirectional
arrow.
g017946
Figure17
1.Batteryvoltage
6.Glowplug
2.Powerlight/faultindicator
7.Hourmeter
3.Enginerpm/status
8.Rightbutton
4.Faultlog9.Downbutton
5.Generatorvoltage/status10.Menuaccess/backbutton
g017947
Figure18
1.Coolanttemperature3.PTOspeed
2.Functionalcontrolstatus
•ENGINERPM/STATUS—indicatestheenginerpm.
•FAULTLOG—indicatesthatthereisacurrentfault
logtoreview.
•GENERATORVOLTAGE/STATUS—indicatesthe
generatorvoltage.
•HOURMETER—indicatesthetotalhoursthe
machinehasoperated.Itstartstofunction
wheneverthekeyswitchisrotatedtoOn.
•PTOSPEED—indicatesthePTOspeed.
•GLOWPLUG—indicatesthattheglowplugisactive.
•BATTERYVOLTAGE—indicatesthebatterypotential
inVolts.
19
