g014616

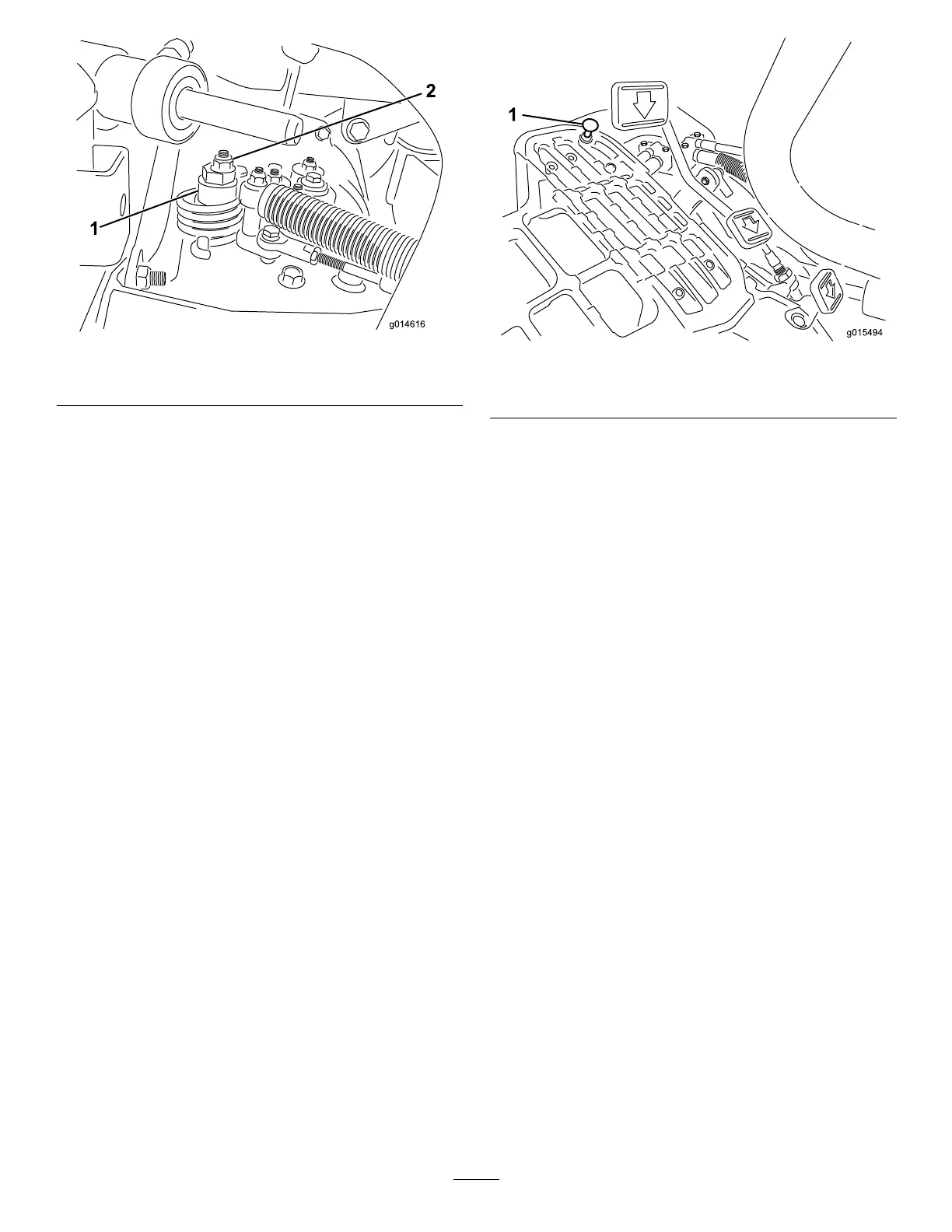

Figure41
1.Eccentric2.Locknut
B.Movethefunctional-controllevertothe
NEUTRALpositionandthethrottletothe
SLOWposition.Starttheengine.
C.Rotatetheeccentricuntilcreepdoesnot
occurineitherdirection.Whenthewheel
stopsrotating,tightenthenutlockingthe
eccentricandtheadjustment(Figure41).
Verifytheadjustmentwiththethrottleinthe
SLOWandFASTposition.
Note:Ifthewheelstillturnswhenthe
eccentricisatthemaximumadjustment,
contactyourauthorizedT orodistributor
orrefertotheServiceManualforfurther
adjustment.
AdjustingtheTransport
Speed
ObtainingtheMaximumTransport
Speed
Thetractionpedalcomesadjustedfor
maximum-transportspeed,butyoumayneed
toadjustitifthepedalreachesfullstrokebeforeit
contactsthepedalstop,orifyouwanttoadecrease
thetransportspeed.
Toobtainthemaximum-transportspeed,putthe
functionalcontrolleverintheTRANSPORTpositionand
pressdownonthetractionpedal.Ifthepedalcontacts
thestop(Figure42)beforeyoufeeltensiononthe
cable,performthefollowingadjustmentprocedure:
g015494
Figure42
1.Pedalstop
1.Putthefunctional-controlleverintheTRANSPORT
positionandloosenthelocknutsecuringthe
pedalstoptotheoorplate(Figure42).
2.Tightenthepedalstopuntilitdoesnotcontact
thetractionpedal.
3.Continueapplyingalightloadonthetransport
pedalandadjustthepedalstopsoitcontacts
thepedalrodandtightenthenuts.
Important:Ensurethatthetensiononthe
cableisnotexcessiveoryouwillreducethe
cablelife.
ReducingtheTransportSpeed
1.Pressdownonthetractionpedalandloosenthe
locknutsecuringthepedalstoptotheoorplate.
2.Loosenthepedalstopuntilyouobtainthe
desiredtransportspeed.
3.Tightenthelocknutsecuringthepedalstop.
43
