Safety
and
Instructional
Decals
Safety
decals
and
instructions
are
easily
visible
to
the
operator
and
are
located
near
any
area
of
potential
danger
.
Replace
any
decal
that
is
damaged
or
missing.

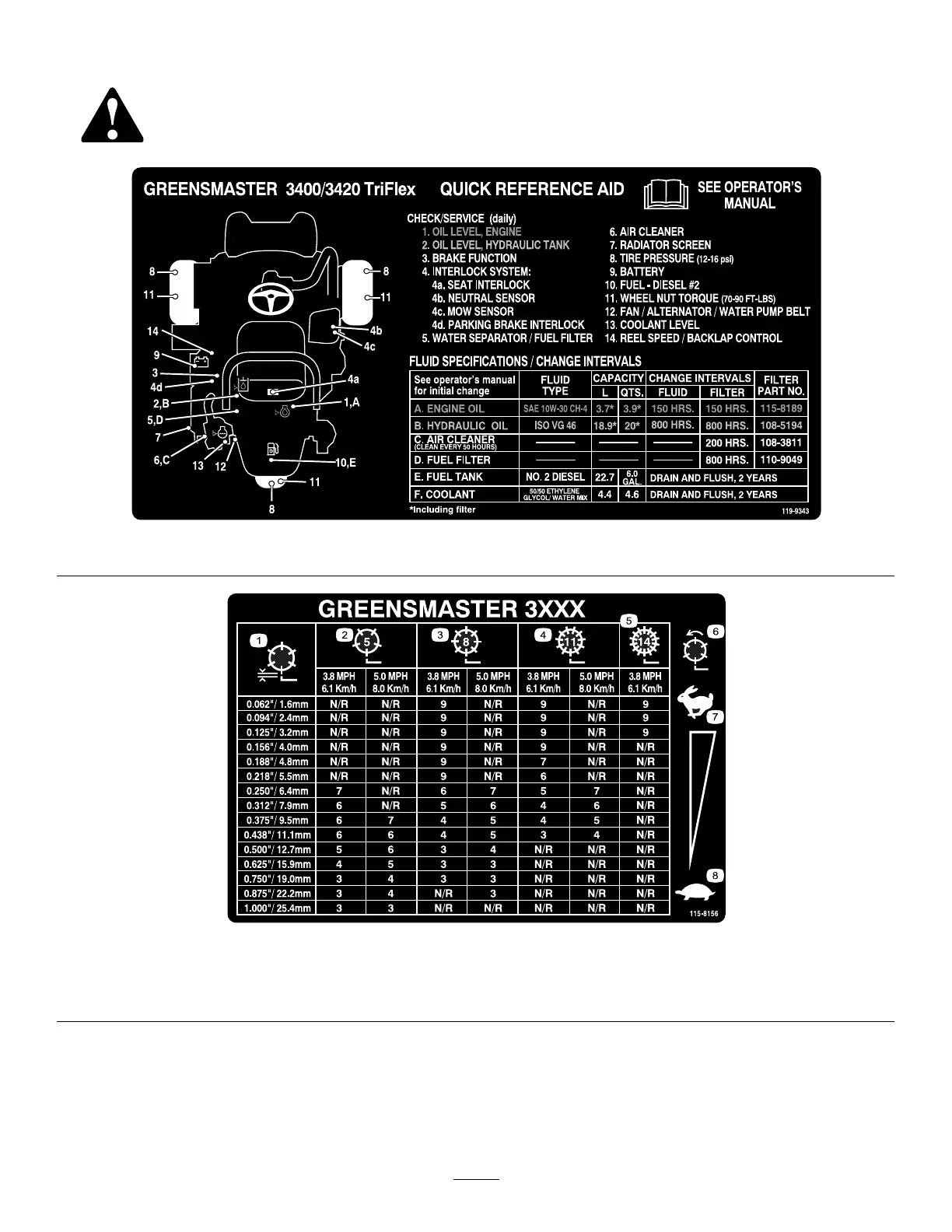

decal1
19-9343
1
19-9343
decal1
15-8156
1
15-8156
1.
Reel
height
3.
8–blade
cutting
unit
5.
14–blade
cutting
unit
7.
Fast
2.
5–blade
cutting
unit
4.
1
1–blade
cutting
unit
6.
Reel
speed
8.
Slow
5
4
6
Table of Contents
Table of Contents
3
Safety
4
General Safety
4
Safety and Instructional Decals
5
Setup
10
Installing the Roll Bar
11
Installing the Seat
12
Installing the Steering Wheel
12
Activating and Charging the Battery
13
Installing the Oil Cooler
14
Installing the Grass-Basket Hooks
14
Installing the Cutting Units
15
Setting the Clip-Control Feature
15
Adding Rear Weight
15
Installing the CE Guard Kit
16
Installing the CE Decals
16
Reducing the Tire Pressure
17
Burnishing the Brakes
17
Product Overview
17
Controls
17
Infocenter Control
19
Specifications
24
Attachments/Accessories
24
Before Operation
24
Before Operation Safety
24
Fuel Specification
25
Filling the Fuel Tank
25
Performing Daily Maintenance
26
During Operation
26
During Operation Safety
26
Breaking in the Machine
27
Starting the Engine
27
Checking the Machine after Starting the Engine
28
Shutting off the Engine
28
Checking the Safety-Interlock System
28
Driving the Machine Without Mowing
29
Mowing the Green
29
After Operation
31
After Operation Safety
31
Inspecting and Cleaning after Mowing
32
Hauling the Machine
32
Towing the Machine
32
Maintenance
33
Maintenance Safety
33
Recommended Maintenance Schedule(S)
34
Daily Maintenance Checklist
35
Lubrication
36
Greasing the Machine
36
Engine Maintenance
36
Engine Safety
36
Servicing the Air Cleaner
36
Servicing the Engine Oil
37
Fuel System Maintenance
39
Draining Water from the Fuel Filter
39
Replacing the Fuel Filter/Water Separator
39
Inspecting the Fuel Lines and Connections
40
Electrical System Maintenance
40
Electrical System Safety
40
Servicing the Battery
40
Locating the Fuses
41
Jump-Starting the Machine
42
Drive System Maintenance
42
Checking the Tire Pressure
42
Checking the Torque of the Wheel Nuts
42
Adjusting the Transmission for Neutral
42
Adjusting the Transport Speed
43
Adjusting the Mowing Speed
44
Cooling System Maintenance
44
Cooling System Safety
44
Cleaning the Radiator Screen
44
Checking the Engine-Coolant Level
45
Brake Maintenance
45
Burnishing the Brakes
45
Adjusting the Brakes
45
Belt Maintenance
46
Adjusting the Alternator Belt
46
Hydraulic System Maintenance
46
Hydraulic System Safety
46
Servicing the Hydraulic Fluid
46
Checking the Hydraulic Lines and Hoses
48
Cutting Unit Maintenance
49
Blade Safety
49
Installing and Removing the Cutting Units
49
Checking the Reel-To-Bedknife Contact
52
Backlapping the Reels
52
Storage
53
