Toro 07211TC User Manual

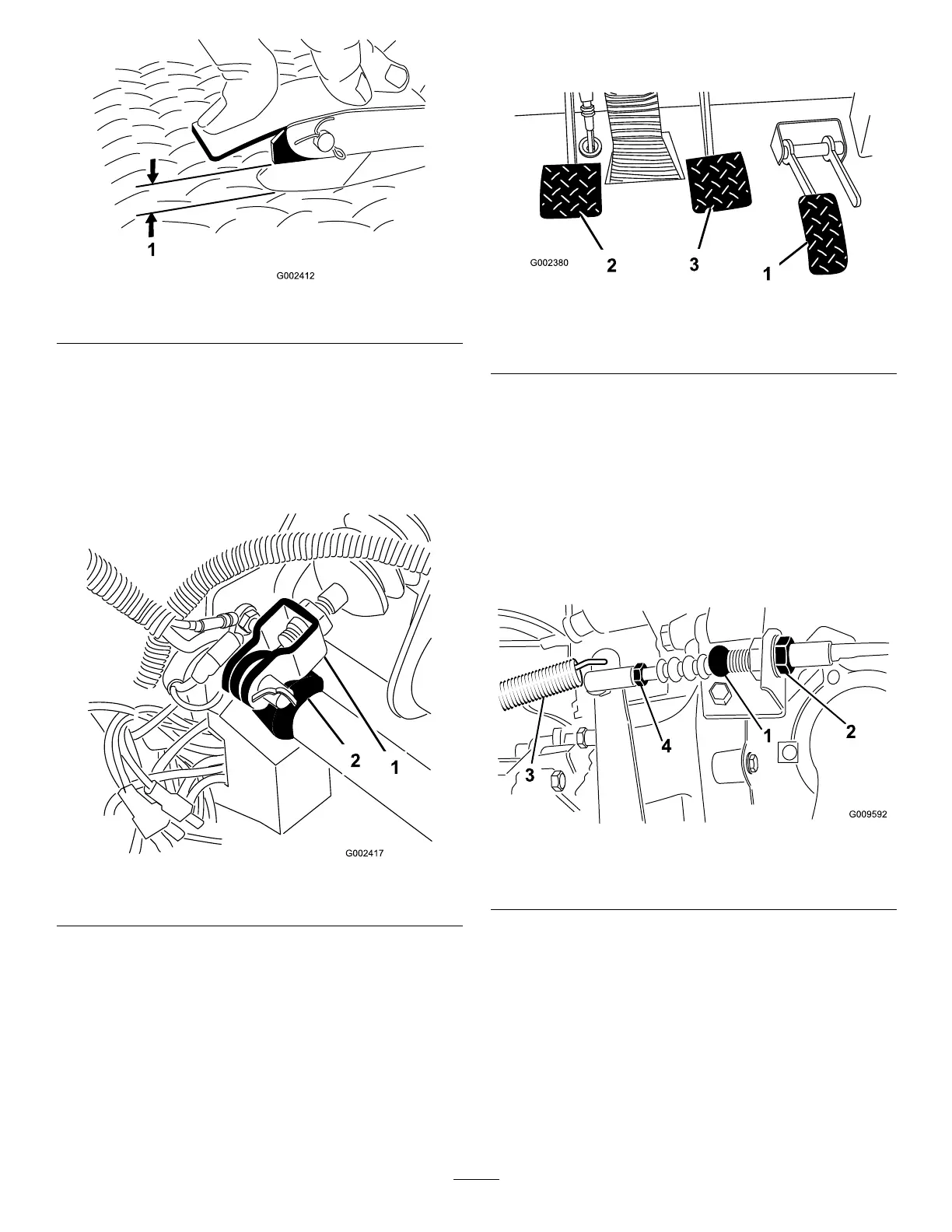

Figure67
1..200—.350inchClearance
AdjustingBrakePedal
ServiceInterval:Every200hours(Fronthoodcanbe
removedtoeaseadjustment.)
1.Removecotterpinandclevispinsecuringmaster
cylinderyoketobrakepedalpivot(Figure67).
Figure68
1.Mastercylinderyoke2.Brakepedalpivot
2.Liftuponbrakepedal(Figure69)untilitcontacts
frame.
3.Loosenjamnutssecuringyoketomastercylinder
shaft(Figure67).
4.Adjustyokeuntilitsholesalignwithholeinbrake
pedalpivot.Secureyoketopedalpivotwithclevis
pinandcotterpin.
5.Tightenjamnutssecuringyoketomastercylinder
shaft.
Note:Thebrakemastercylindermustrelieve
pressurewhenproperlyadjusted.
Figure69
1.Acceleratorpedal
3.Clutchpedal
2.Brakepedal
AdjustingClutchPedal
ServiceInterval:Every200hours
Note:Theclutchpedalcablecanbeadjustedatthebell
housingorattheclutchpedalpivot.Thefronthoodcan
beremovedtoeasetheaccesstopedalpivot.
1.Loosenthejamnutssecuringtheclutchcabletothe
bracketonthebellhousing(Figure70).
Figure70
1.Clutchcable
3.Returnspring
2.Jamnuts4.Balljoint
Note:Theballjointmayberemovedandrotated,if
additionaladjustmentisrequired.
2.Disconnectthereturnspringfromtheclutchlever.
3.Adjustthejamnuts/orballjointuntilthebackrear
edgeoftheclutchpedalis3.75”+.12”fromthetop
oftheoorplatediamondpattern,whenan4lb.
forceisappliedtothepedal(Figure71).
51
