Toro 44501 User Manual

MAINTENANCE

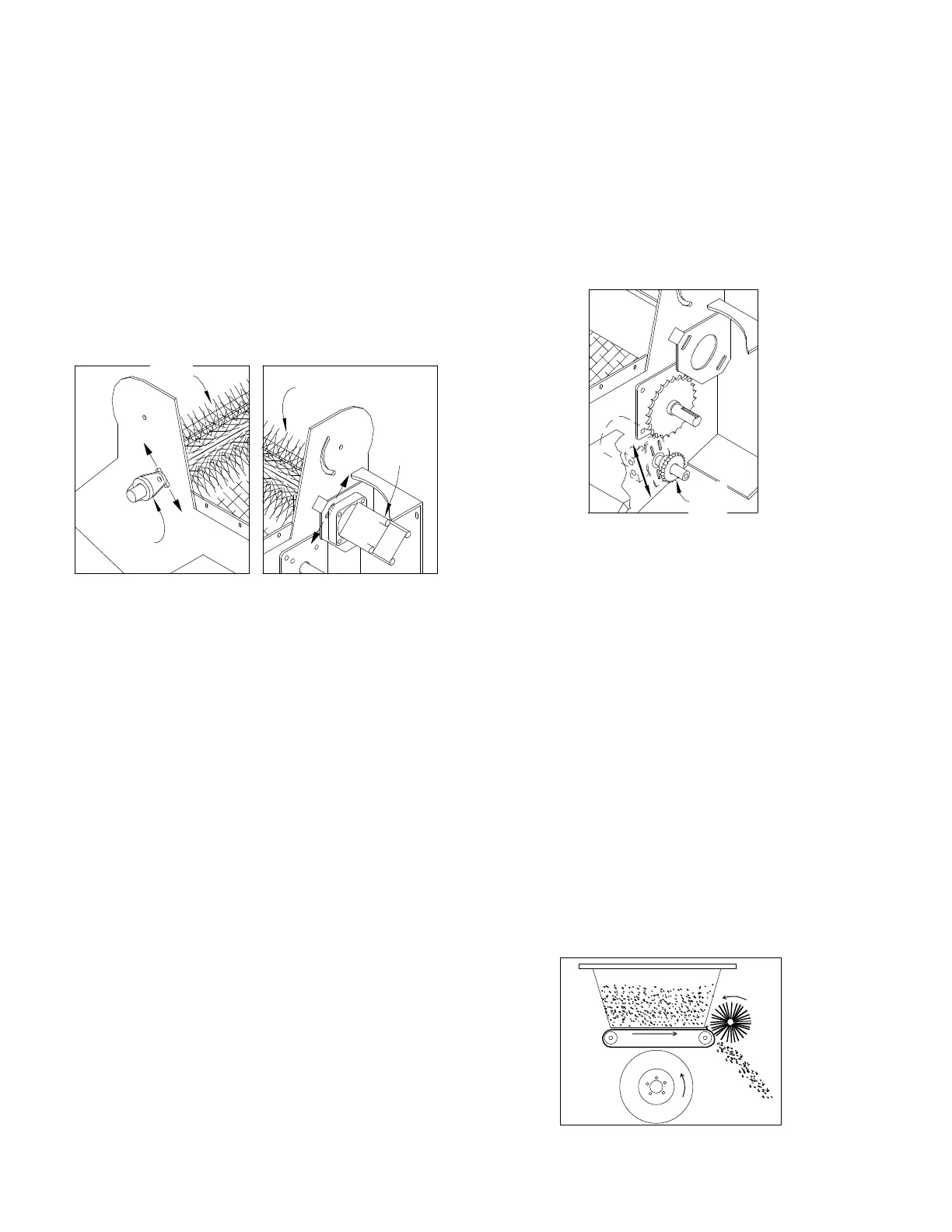

BRUSH TO CONVEYOR BELT ADJUSTMENT
Fig. 7)
The brush is moved back and forth on its mounting
slots to adjust it to the conveyor belt. The brush
should be as close to the belt as possible without
touching. A piece of paper can be inserted
between the conveyor belt and the brush to check
the adjustment. The brush must be the same
height from end to end.
1. Loosen the nuts of the bearing on the right hand
side.
2. Loosen the nuts mounting the brush motor to
the main frame.
3. Slide the brush into position on the right hand
side. Finger tighten the nuts.
4. Slide the brush into position on the left hand
side. Finger tighten the nuts.
5. Insert a piece of paper between the brush and
the conveyor belt. The brush must be the same
height from end to end.
6. If the adjustment is correct, tighten the nuts. If
not, repeat steps 1 through 5.
CHAIN TENSION (Fig. 8)
The chain tension is adjusted by moving the motor
and sprocket assembly (A) up and down on its
mounting slots. A 1/8" deflection is
recommended. Do not over tighten, this will cause
chain wear. Do not operate with a loose chain; this
will cause sprocket wear.
1. Loosen the nuts mounting the motor and
sprocket assembly (A) to the main frame.
2. Slide the hydraulic motor and sprocket
assembly (A) up and down on the mounting
slot until proper tension is achieved.
3. Tighten the nuts.
ROTATION (Fig. 9)
The rotation of the conveyor, brush and the wheels
12
Bearing
Brush
Motor
Brush
Brush
Figure 7
Right Side Left Side
(A)
Figure 8
Rotation
Direction
Figure 9
