SET UP INSTRUCTIONS

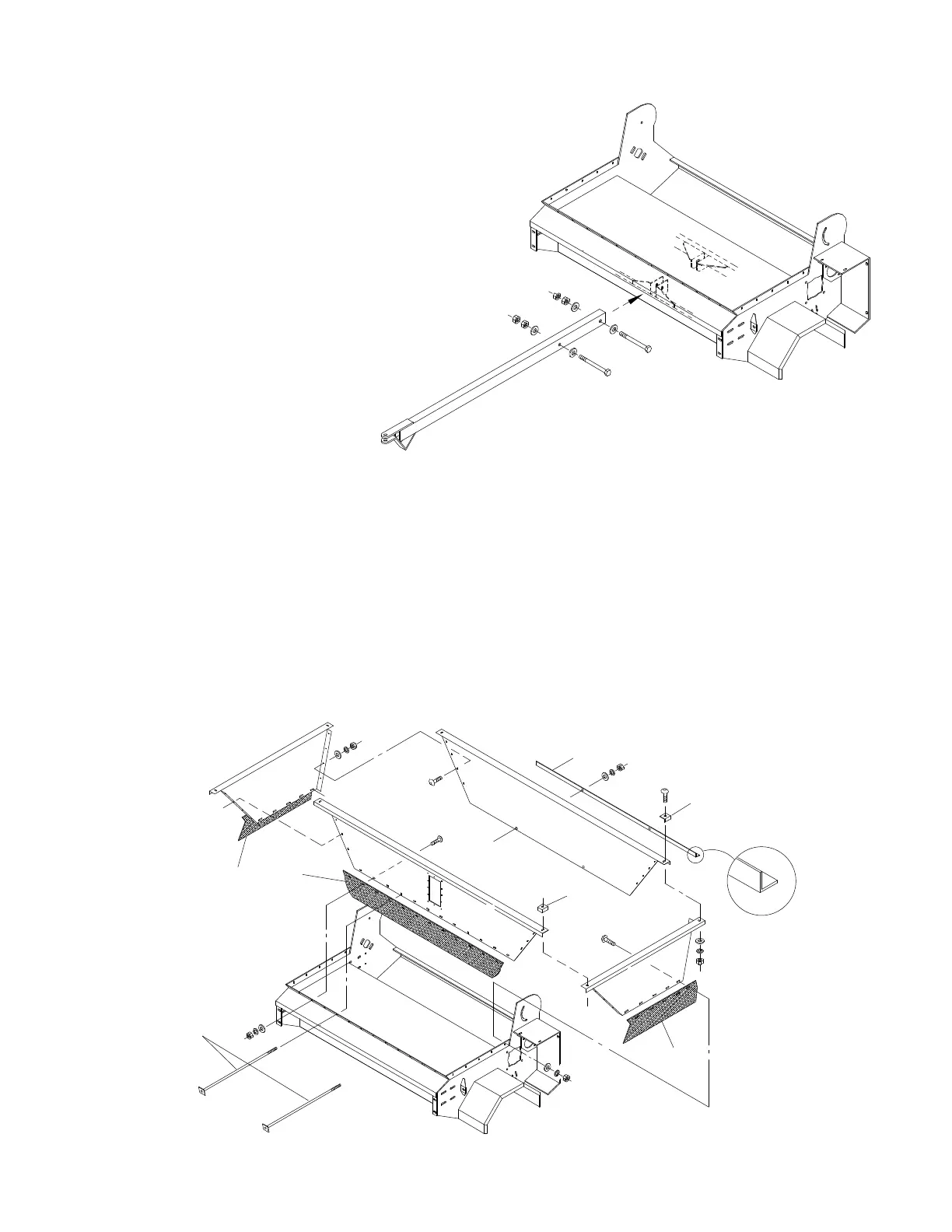

INSTALL TONGUE (Fig. 1)

1. Mount the tongue using (2) 1/2" x 3-1/2" bolts,

flat washers and nuts provided. Double nut both

bolts.

ASSEMBLE HOPPER (Fig. 2)

1. Assemble the sides, front, and back (Item A, B,

and C) of the hopper and corner guards

(Item H) using the 1/4" x 3/4" carriage

bolts provided. Attach at all four

corners and secure tightly.

2. Set the hopper frame in position on the

topdresser.

3. Attach the rear rubber skirt (D) between the

frame and the hopper. Use the 1/4" x 1" carriage

bolts to mount.

4. Attach the side rubber skirts (E) between the

frame and the hopper. Make sure rubber seals

together on sides, then tighten bolts.

IMPORTANT: The rubber flaps must be in-

stalled on the topdresser. If the flaps are not

installed, damage will occur to the conveyor

belt and rollers.

5. Install support rods (F) through the front side.

Install the hopper brace (G) on the rear of the

hopper. Run the threaded end of the support rod

through the brace and the hopper. Attach with a

3/8" flat washer and double nut.
