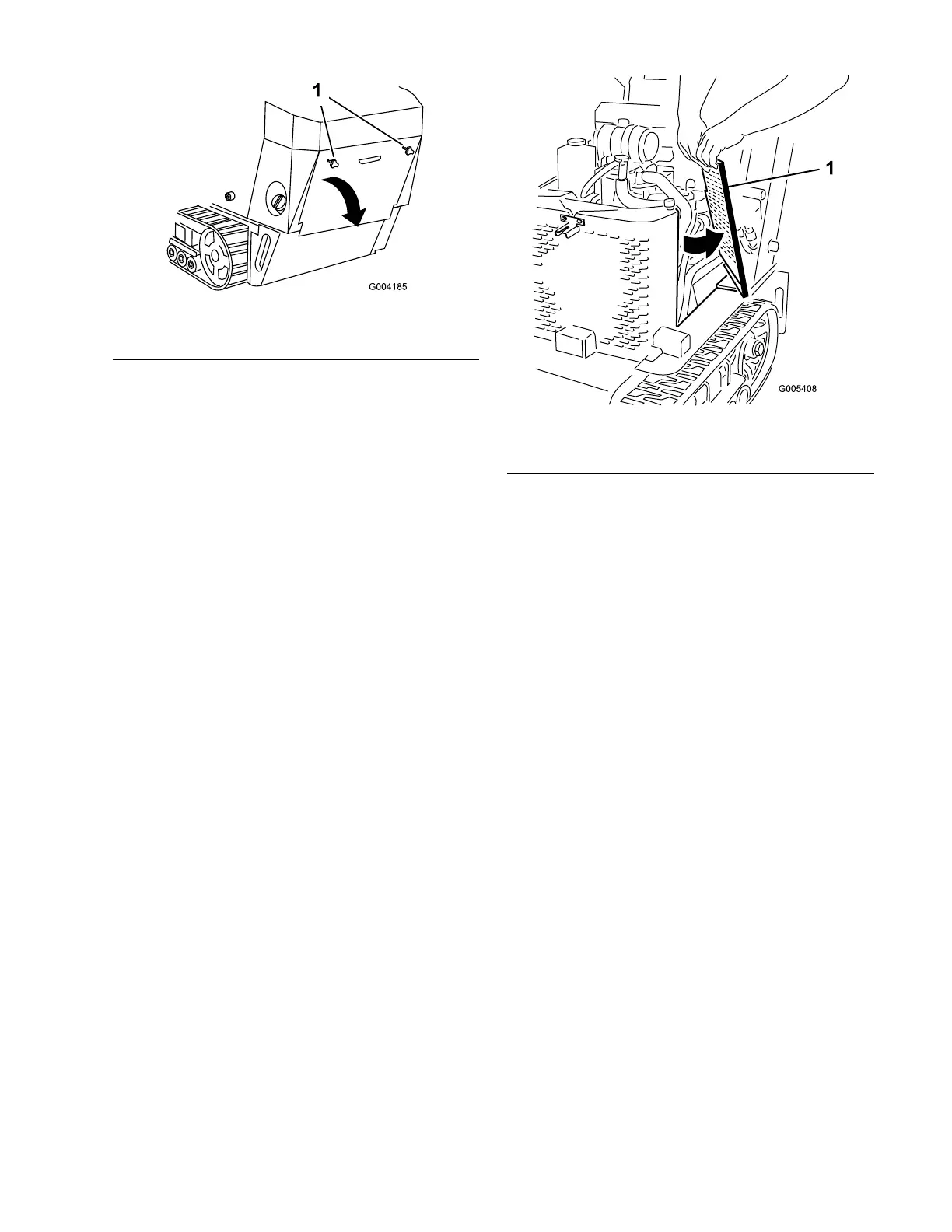

Figure 29
1. Hand knob
2. Tilt the rear access co v er do wn and remo v e to
access the inter nal components ( Figure 29 ).
Closing the Rear Access
Cover
1. Mo v e the rear access co v er in place o v er the
bac k of the traction unit making sure the tabs
line up in the slots .
2. Push the access co v er forw ard, lining up the
hand knob screws with the threaded holes in
the mac hine .
3. Screw the hand knobs tight to secure the rear
access co v er in place .
Removing the Side Screens
1. Open the hood.
2. Slide the side screens ( Figure 30 ) up and out of
the slots in the front screen and frame .
Figure 30
1. Side screen
Installing the Side Screens
Slide the side screens into place in the slots in the
front screen and frame .
Lubrication
Greasing the Traction Unit
Grease all pi v ot joints ev er y 8 operating hours and
immediately after ev er y w ashing .
Grease T ype: General-pur pose g rease .
1. Lo w er the loader ar ms and stop the engine .
R emo v e the k ey .
2. Clean the g rease fittings with a rag .
3. Connect a g rease gun to eac h fitting ( Figure 31
and Figure 32 ).
31
