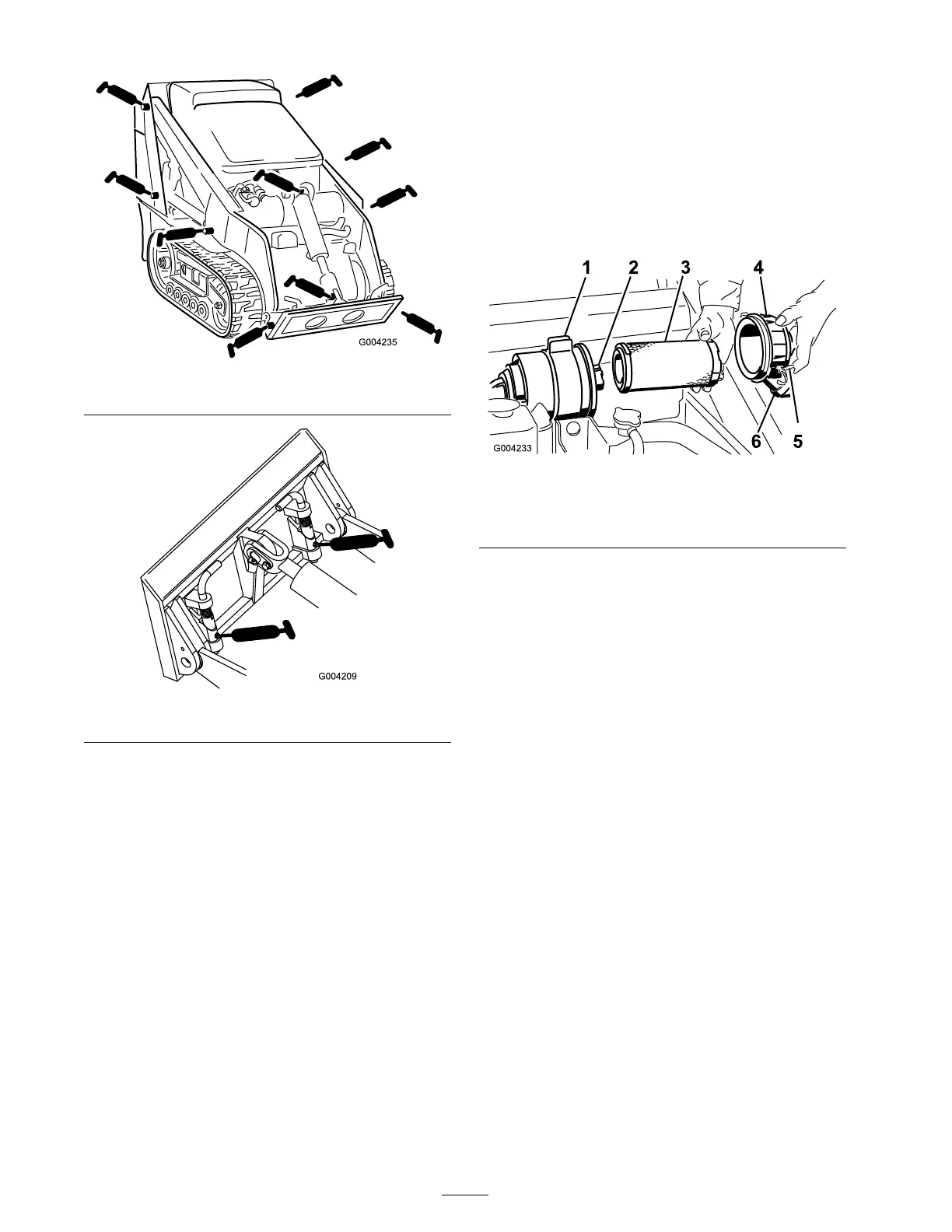

Figure 31
Figure 32
4. Pump g rease into the fittings until g rease begins
to ooze out of the bearings (appro ximately 3
pumps).
5. Wipe up any ex cess g rease .
Engine Maintenance
Servicing the Air Cleaner
Primar y Filter : R e place after ev er y 200 operating
hours or more often in dusty conditions .
Safety Filter : R e place after ev er y 600 operating
hours .
Note: Ser vice the air cleaner more frequently if
operating conditions are extremely dusty or sandy .
Replacing the Filters
1. Lo w er the loader ar ms , stop the engine , and
remo v e the k ey .
2. Open the hood.
3. R elease the latc hes on the air cleaner and pull
the air cleaner co v er off of the air cleaner body
( Figure 33 ).
Figure 33
1. Air lter body 4. Air cleaner cover
2. Safety lter 5. Latches
3. Primary lter
6. Dust cap
4. Squeeze the dust cap sides to open it and
knoc k the dust out.
5. Clean the inside of the air cleaner co v er with
compressed air .
6. Gently slide the primar y filter out of the air
cleaner body ( Figure 33 ). A v oid knoc king the
filter into the side of the body .
Important: Do not attempt to clean the
primar y filter .
7. R emo v e the safety filter only if y ou intend to
re place it.
Important: Nev er attempt to clean the
safety filter . If the safety filter is dir ty ,
then the primar y filter is dama ged and y ou
should r eplace both filter s.
8. Inspect the new filter(s) for damag e b y looking
into the filter while shining a bright light on
the outside of the filter . Holes in the filter will
appear as bright spots . Inspect the element for
tears , an oily film, or damag e to the r ubber
seal. If the filter is damag ed do not use it.
9. If y ou are re placing the safety filter , carefully
slide the new filter into the filter body
( Figure 33 ).
32
