SAE Straight Thread O-Ring Port (Non-adjustable)
(Fig. 3)
1. Make sure both threads and sealing surfaces are free
of burrs, nicks, scratches, or any foreign material.
2. Always replace the O-ring seal when this type of fitting
shows signs of leakage.
3. Lubricate the O-ring with a light coating of oil.
4. Install the fitting into the port and tighten it down full
length until finger tight.
5. Tighten the fitting to the correct flats from finger tight
(F.F.F.T.).
Size F.F.F.T.
4 (1/4 in. nominal hose or tubing) 1.00 ± .25
6 (3/8 in.) 1.50 ± .25
8 (1/2 in.) 1.50 ± .25
10 (5/8 in.) 1.50 ± .25
12 (3/4 in.) 1.50 ± .25
16 (1 in.) 1.50 ± .25

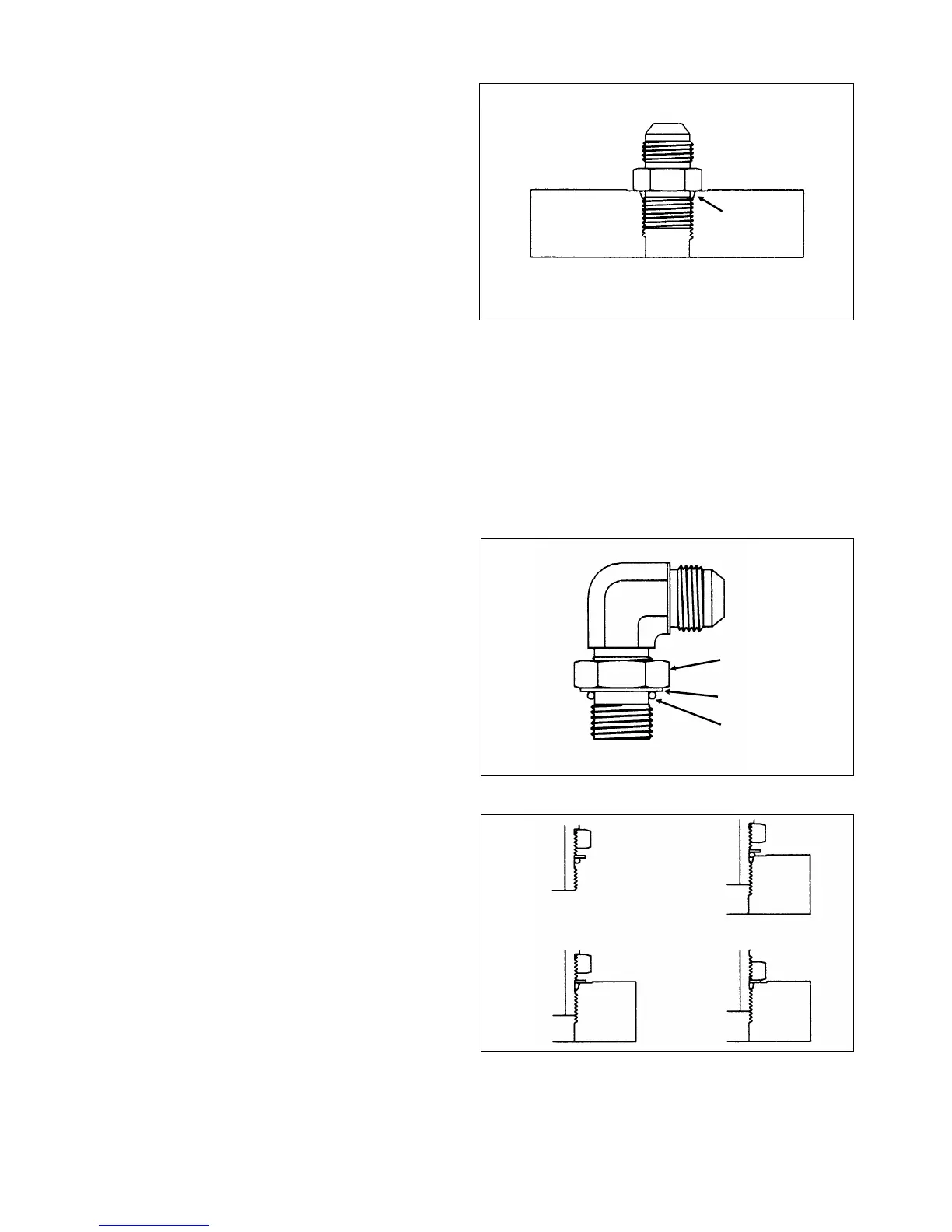

Figure 3
SAE Straight Thread O-Ring Port (Adjustable)
(Fig. 4, 5)
1. Make sure both threads and sealing surfaces are free
of burrs, nicks, scratches, or any foreign material.
2. Always replace the O-ring seal when this type of fitting
shows signs of leakage.
3. Lubricate the O-ring with a light coating of oil.
4. Turn back the jam nut as far as possible. Make sure
the back up washer is not loose and is pushed up as far
as possible (Step 1).
5. Install the fitting into the port and tighten finger tight
until the washer contacts the face of the port (Step 2).
6. To put the fitting in the desired position, unscrew it by
the required amount, but no more than one full turn
(Step 3).
7. Hold the fitting in the desired position with a wrench
and turn the jam nut with another wrench to the correct
flats from finger tight (F.F.F.T.) (Step 4)
Size F.F.F.T.
4 (1/4 in. nominal hose or tubing) 1.00 ± .25
6 (3/8 in.) 1.50 ± .25
8 (1/2 in.) 1.50 ± .25
10 (5/8 in.) 1.50 ± .25
12 (3/4 in.) 1.50 ± .25
16 (1 in.) 1.50 ± .25
Figure 4
Figure 5
O-Ring
Lock Nut
Back-Up Washer
O-Ring
Step 1
Step 2
Step 3
Step 4
General Information Page 4 - 4 Greensmaster
®
3100
