Toro GREENSMASTER 3100 Service Manual

Greensmaster 3100
Dual Point Adjust Cutting Units
Page 10 - 10

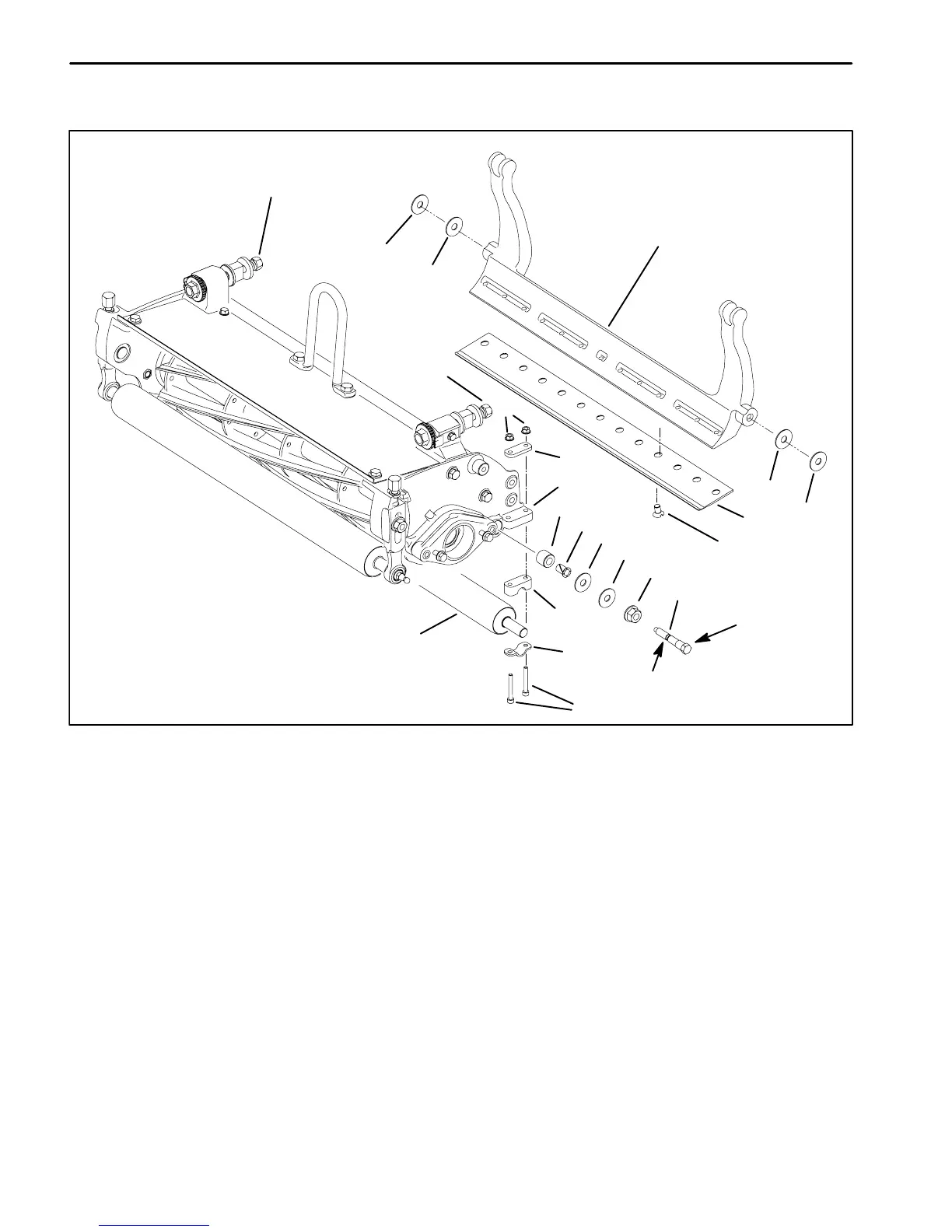

Bedbar Assembly
1. Side plate
2. Rubber bushing
3. Flange bushing
4. Washer (plastic)
5. Washer (metal)
6. Bedbar
7. Bedbar pivot bolt
8. Flange nut
9. Flange nut
10. Shim
11. Spacer
12. Retainer
13. Cap screw
14. Rear roller assembly
15. Lock nut
16. Bedknife
17. Bedknife screw
Figure 10
Antiseize
Lubricant
9
10
11
12
13
14
15
5
4
8
7
3
2
16
17
6
15
5
5
4
4
1
190 to 240 in–lbs
(21 to 27 Nm)
Rev. D

Toro GREENSMASTER 3100 Specifications

General

Cutting Units	3
Blade Type	Reel
Drive System	Hydrostatic
Horsepower	21.5 hp (16 kW)
Engine Power	21.5 hp (16 kW)
Number of Blades	11

Summary

Chapter 1 - Safety

Safety Instructions

General safety guidelines and warnings for operating the Greensmaster 3100.

Before Operating Safety

While Operating Safety

Maintenance and Repair Safety

Safety precautions for service, maintenance, and repair procedures.

Chapter 4 - Hydraulic System

Hydraulic System Specifications

Hydraulic Flow Diagrams

Visual representations of hydraulic oil flow for various machine operations.

Hydraulic Schematic

Detailed schematic illustrating the hydraulic system components and connections.

Hydraulic System Troubleshooting

Guides for diagnosing and resolving hydraulic system issues.

Hydraulic System Testing Procedures

Methods for testing hydraulic components using specialized equipment.

Hydraulic System Adjustments

Hydraulic System Repairs

Instructions for removing, installing, and repairing hydraulic components.

Chapter 5 - Electrical System

Electrical System Wiring Schematic

Diagrams illustrating electrical connections for different machine serial number ranges.

Electrical System Troubleshooting

Guides for diagnosing and correcting electrical system malfunctions.

Electrical System Testing

Procedures for testing electrical components like switches and meters.

Electrical System Repairs

Instructions for adjusting and replacing electrical switches and components.

Chapter 7 - 4 Bolt Adjust Cutting Units

4 Bolt Adjust Cutting Units Specifications

4 Bolt Adjust Cutting Units Troubleshooting

Factors affecting cut quality and their possible solutions.

4 Bolt Adjust Cutting Units Set Up and Adjustments

Procedures for adjusting reel contact, bedknife, height of cut, and rollers.

4 Bolt Adjust Cutting Units Repairs

Chapter 8 - Single Point Adjust Cutting Units

Single Point Adjust Cutting Units Specifications

Single Point Adjust Cutting Units Troubleshooting

Factors affecting cut quality and their possible solutions.

Single Point Adjust Cutting Units Set Up and Adjustments

Single Point Adjust Cutting Units Repairs

Chapter 9 - Grooming Reel Cutting Units

Grooming Reel Cutting Units Troubleshooting

Grooming Reel Cutting Units Set Up and Adjustments

Grooming Reel Cutting Units Repairs

Chapter 10 - Dual Point Adjust Cutting Units

Dual Point Adjust Cutting Units Specifications

Dual Point Adjust Cutting Units Troubleshooting

Dual Point Adjust Cutting Units Set Up and Adjustments

Dual Point Adjust Cutting Units Repairs
