Toro Groundsmaster 4500-D Service Manual

Groundsmaster 4500 --D/4700--DHydraulic S ystem Page 4 -- 100
Rear Axle and F ront Wheel Motor Service

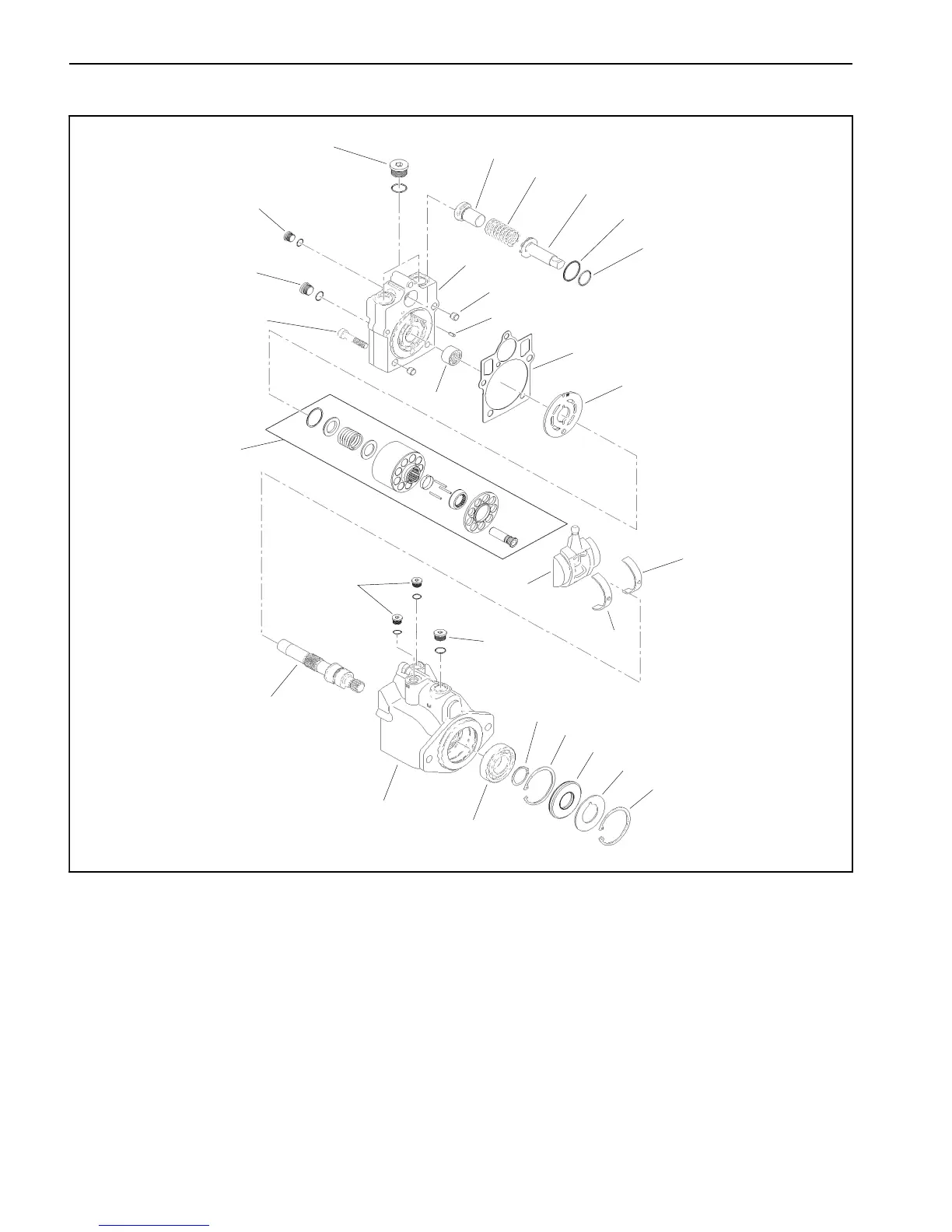

Figure 82
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
22
23
21
25
1. Plug with O--ring
2. Minimum angle stop
3. Bias spring
4. Servo piston
5. O--ring
6. O--ring
7. Socket head screw (5 used)
8. Endcap
9. Dowel
10. Dowel pin
11. Bearing
12. Gasket
13. Valve plate
14. Cylinder block kit
15. Swashplate
16. Swashplate bearing assembly
17. Output shaft
18. Housing
19. Bearing
20. Retaining ring
21. Retaining ring (2 used)
22. Seal
23. Support washer
24. Plug with O--ring (3 used)
25. Plug with O--ring (2 used)
24
16
24
25
