Toro Groundsmaster 4500-D Service Manual

Groundsmaster 4500 --D/4700--DHydraulic S ystem Page 4 -- 122

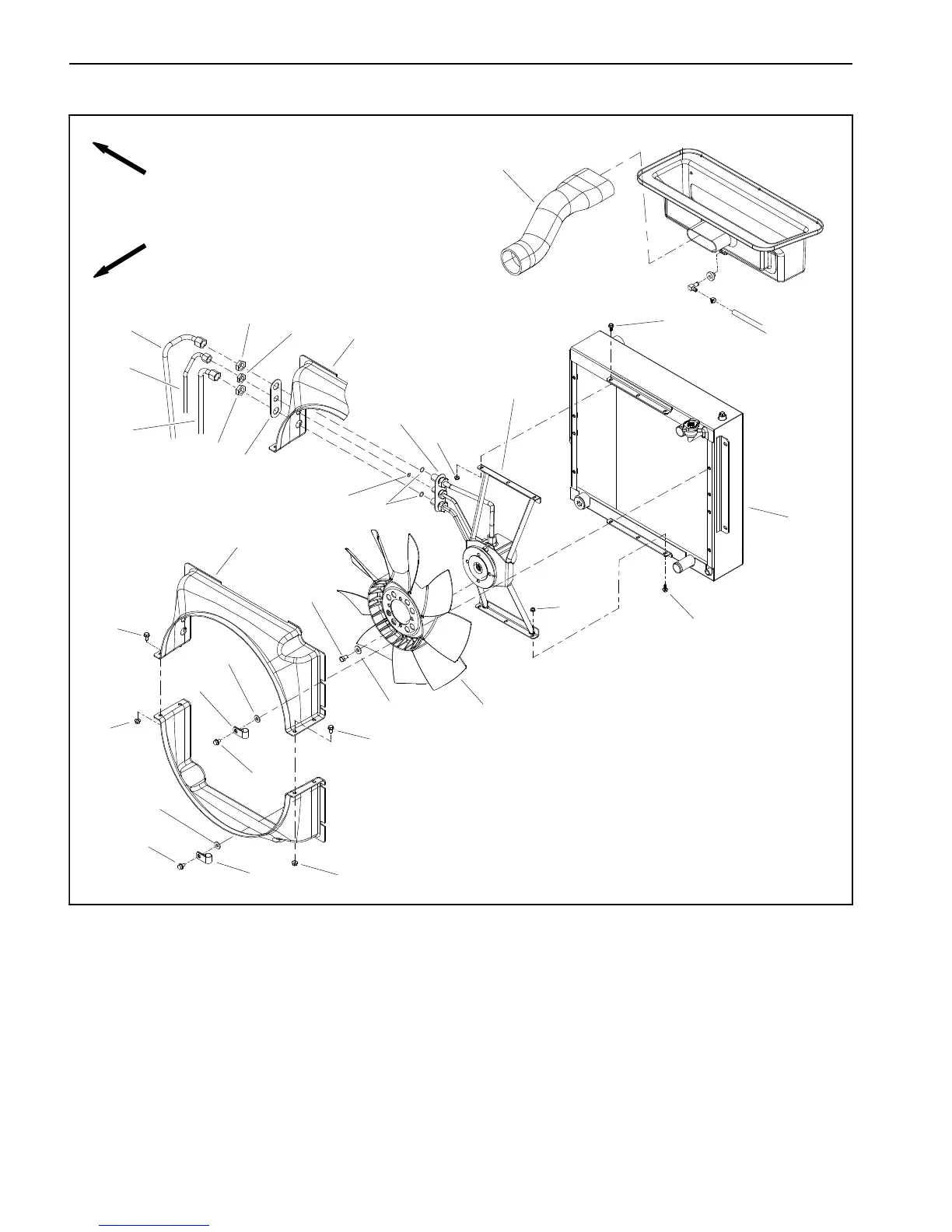

Engine Cooling Fan Motor
1. Cap screw (4 used)
2. Fan
3. Flange head screw (4 used)
4. Flange nut (4 used)
5. Fan motor and bracket assembly
6. Flange head screw (8 used)
7. Flat washer (8 used)
8. R--clamp (2 used)
9. Radiator/oil cooler assembly
10. Air intake hose
11. Washer (4 used)
12. Flange nut (6 used)
13. Cap screw (6 used)
14. Support shim (2 used)
15. Upper fan shroud
16. Hydraulic tube
17. Hydraulic tube
18. Hydraulic tube
19. O--ring
20. O--ring
21. Bulkhead nut
22. Bulkhead nut (2 used)
Figure 103
FRONT
RIGHT
15
1
2
9
11
13
5
13
12
10
12
22
21
22
14
14
19
16
17
18
20
3
6
7
4
6
7
8
15
3
4
8
