Groundsmaster 4500 --D/4700--DPage 7 -- 12Chassis

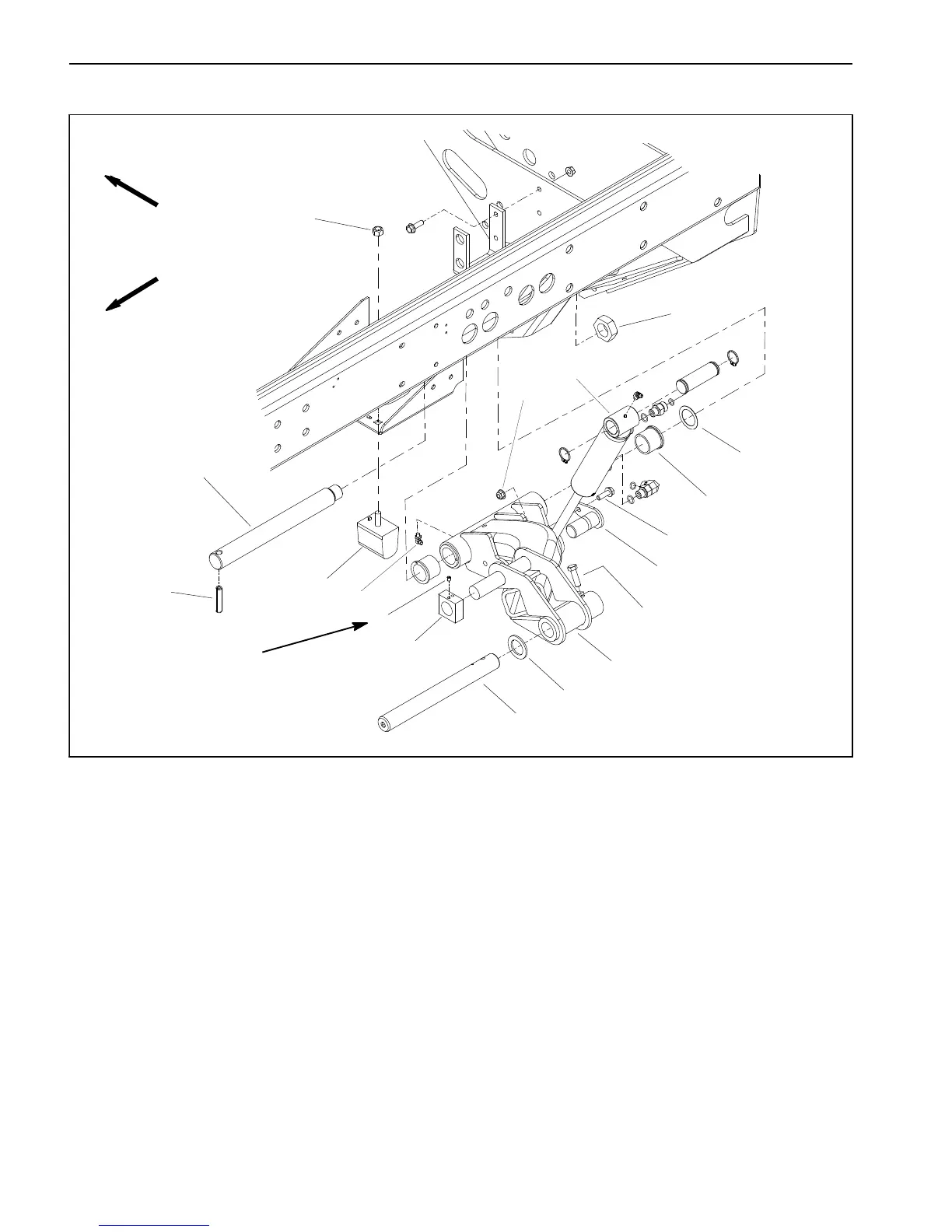

Lift Arms for Cutting Decks #2 and #3
1. Grease fitting
2. Set screw (2 used per stop)
3. Rotation stop
4. Flange head screw
5. Lock nut
6. Slotted roll pin
7. Pivot pin
8. Bumper
9. Thrust washer
10. Lift cylinder pin
11. Deck pivot shaft
12. Lift arm (#2 deck shown)
13. Flange nut
14. Thrust washer
15. Cap screw
16. Lift cylinder
17. Lock nut
18. Flange bushing (2 used per arm)
Figure 13
FRONT
RIGHT
2
3
5
4
7
8
9
10
11
6
15
14
13
12
16
17
1
Loctite #242
18
