Groundsmaster 4500 --D/4700--DPage 3 -- 10Yanmar Diesel Engine
Fuel System

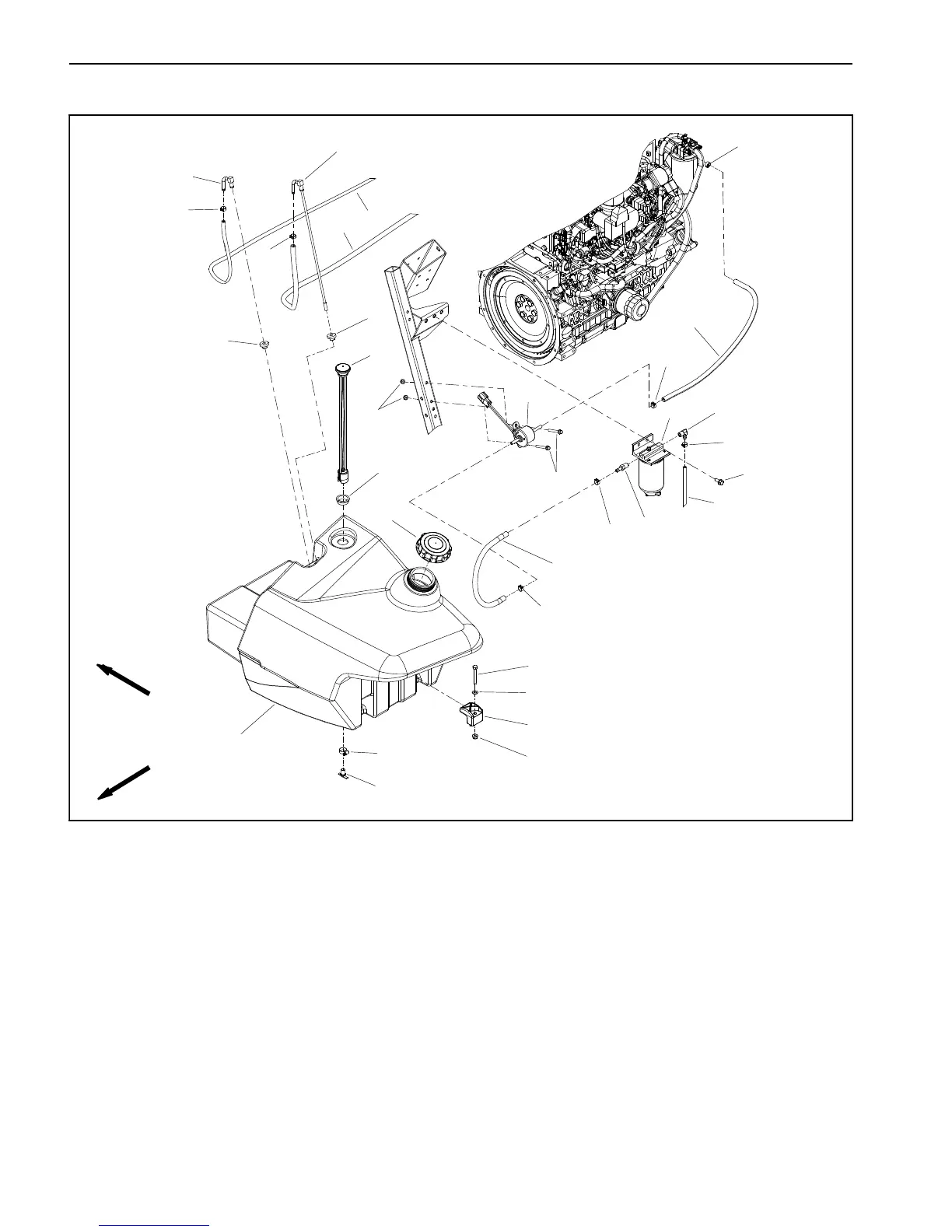

Figure 9
1. Fuel suction tube
2. Fuel gauge
3. Fuel hose (supply)
4. Return fitting
5. Fuel hose (return)
6. Fuel tank cap
7. Bushing (2 used)
8. Hose clamp (6 used)
9. Fuel tank
10. Cap screw (2 used)
11. Clamp (2 used)
12. Flange nut (2 used)
13. Fuel pump
14. Hose clamp
15. Draincock
16. Fuel hose (supply)
17. Fuel hose (supply)
18. Flange head screw (2 used)
19. Flange nut (2 used)
20. Fuel/water separator
21. Elbow fitting
22. Flat washer (2 used)
23. Grommet
24. Flange head screw (2 used)
25. Straight fitting
FRONT
RIGHT
3
2
23
14
15
13
21
1
3
4
5
6
7
9
10
11
12
16
17
18
19
20
25
22
8
7
8
8
24
8
8
8
8
MODEL 30881/30882 SHOWN
