4.MovethethrottlelevertotheSLOWposition,
shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
5.Liftthefootrest,exposingthetopofthemower
deck.
6.Removethedipstick/llplugfromthetopofthe
gearbox(Figure65).
7.Placeafunnelanddrainpanunderthedrain
pluglocatedunderthefrontofthegearboxand
removetheplug,drainingthelubricantintothe
pan.
8.Replacethedrainplug.
9.Addenoughlubricant,approximately283ml(12
oz),untilthelevelisbetweenthemarksonthe
dipstick.
Important:Donotoverllthegearbox;
overllingthegearboxmaydamageit.
EngineMaintenance
EngineSafety
•Shutofftheengineandremovethekeybefore
checkingtheoiloraddingoiltothecrankcase.
•Donotchangethegovernorspeedoroverspeed
theengine.
CheckingtheAirCleaner
ServiceInterval:Every400hoursServiceitalso
whentheair-cleanerindicator
showsred;servicetheair-cleaner
ltermorefrequentlyinextremely
dustyordirtyconditions.
1.Checktheair-cleanerbodyfordamage,which
couldpossiblycauseanairleak.Replacea
damagedair-cleanerbody.
2.Checktheair-intakesystemforleaks,damage,
orloosehoseclamps.
3.Servicetheair-cleanerlter(Figure66).
Important:Donotover-servicetheairlter.
g243914

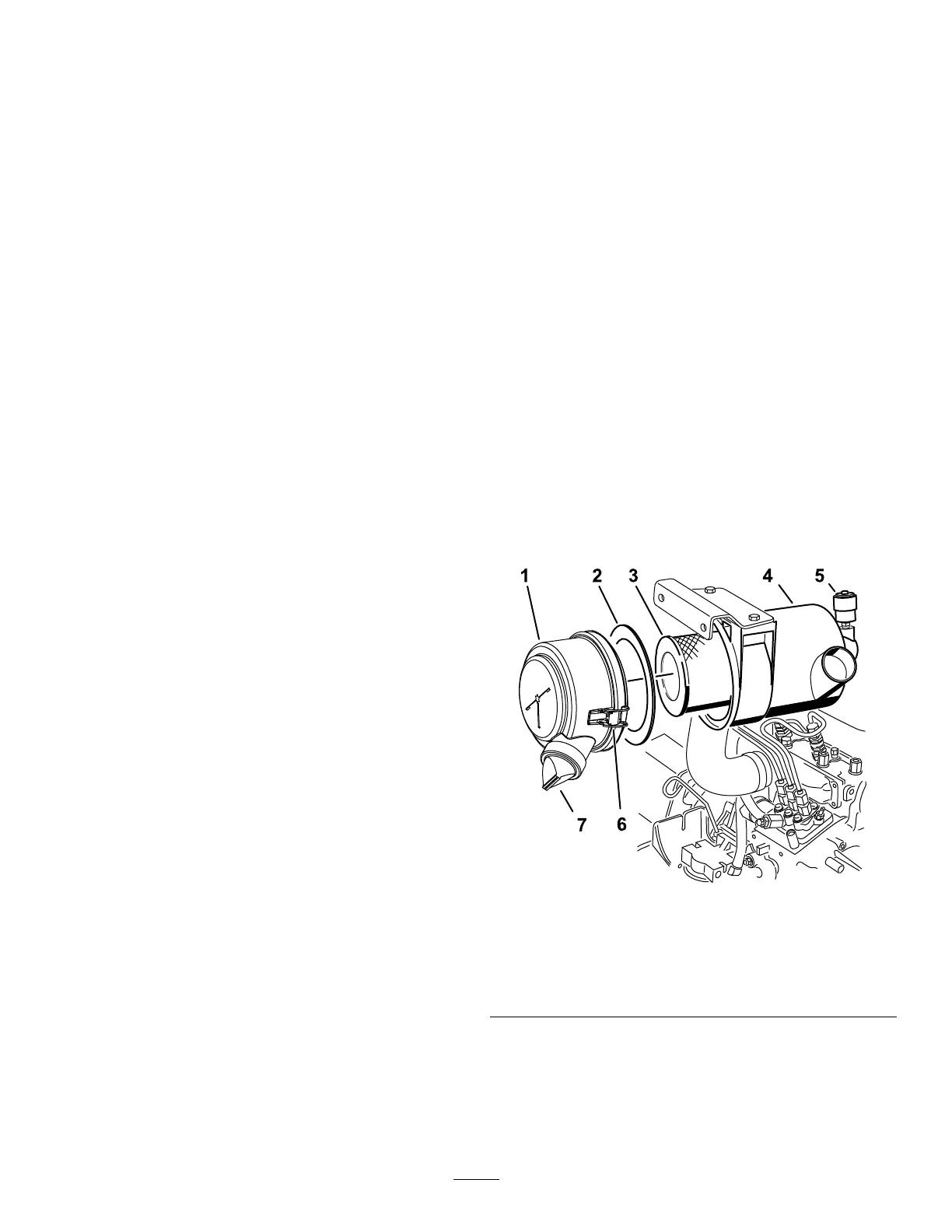

Figure66
1.Air-cleanercover5.Air-cleanerindicator
2.Gasket
6.Air-cleanerlatch
3.Filter7.Rubberoutletvalve
4.Air-cleanerbody
4.Besurethatthecoverisseatedcorrectlyand
sealswiththeair-cleanerbody.
46

Toro Groundsmaster 7210 Series Specifications

General

Drive System	2WD
Number of Blades	3
Horsepower	24.8 hp (18.5 kW)
Transmission	Hydrostatic
Cutting Height	1-5 in (2.5-12.7 cm)
Engine Displacement	1123 cc
