InstallingtheEngineHeatShield

1.Aligntherearangeoftheforwardheatshieldoverthe

forwardangeoftherearheatshield(Figure49).

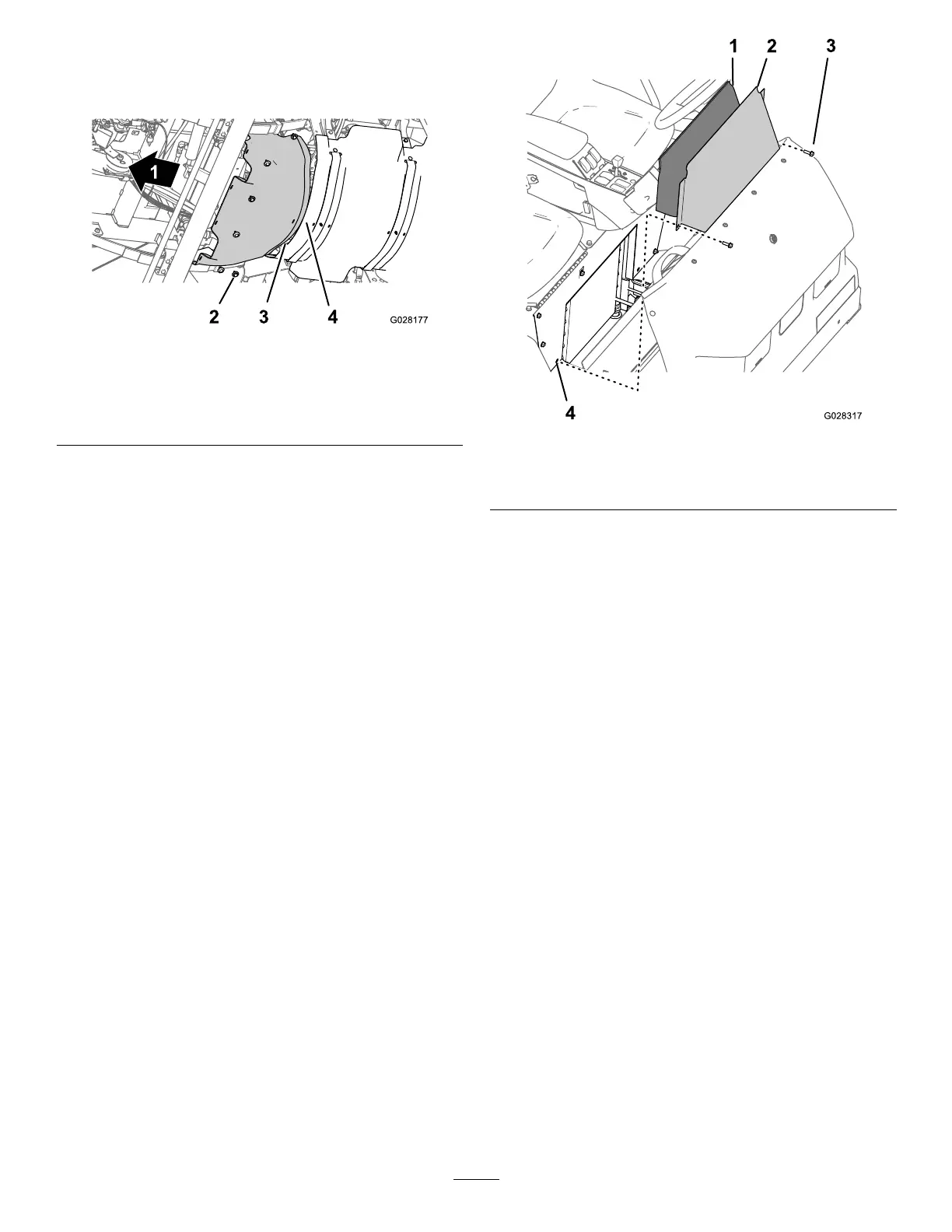

Figure49

1.Frontofthemachine3.Rearange(forwardheat

shield)

2.Hex-headboltsand

washers

4.Forwardange(rearheat

shield)

2.Aligntheholesintheforwardheatshieldwiththe

threadedholesinthechassis(Figure49).

3.Assembletheforwardheatshieldtothemachinewith

the6hex-headboltsand6washers(Figure49)that

youremovedinstep4ofRemovingtheForwardHeat

Shield(page40).

4.Torquetheboltsto1129to1582N·cm(100to140

in-lb).

5.Lowerthemachineandremovethejackstands.

RemovingtheSeatBaseAccessPanel

1.Removethe2anged-headboltsthatsecuretheseat

baseaccesscovertotheseatbase(Figure50).

Figure50

1.Acousticpanel3.Flanged-headbolt

2.Seatbaseaccesscover4.Hole(seatbase)

2.Removetheseatbasecoverandtheacousticpanel

fromthemachine(Figure50).

InstallingtheSeatBaseAccessPanel

1.Aligntheacousticpaneltotheopeningintheseatbase

fortheseatbaseaccesscover(Figure50).

2.Aligntheholesintheseatbaseaccesscoverwiththe

holesintheseatbase(Figure50).

3.Assembletheseatbaseaccesscovertotheseatbase

withthe2anged-headbolts(Figure50)thatyou

removedin1inRemovingtheSeatBaseAccessPanel

(page41).

4.Torquetheboltsto1975to2542N-cm(175to225

in-lb).
