CONTROLS

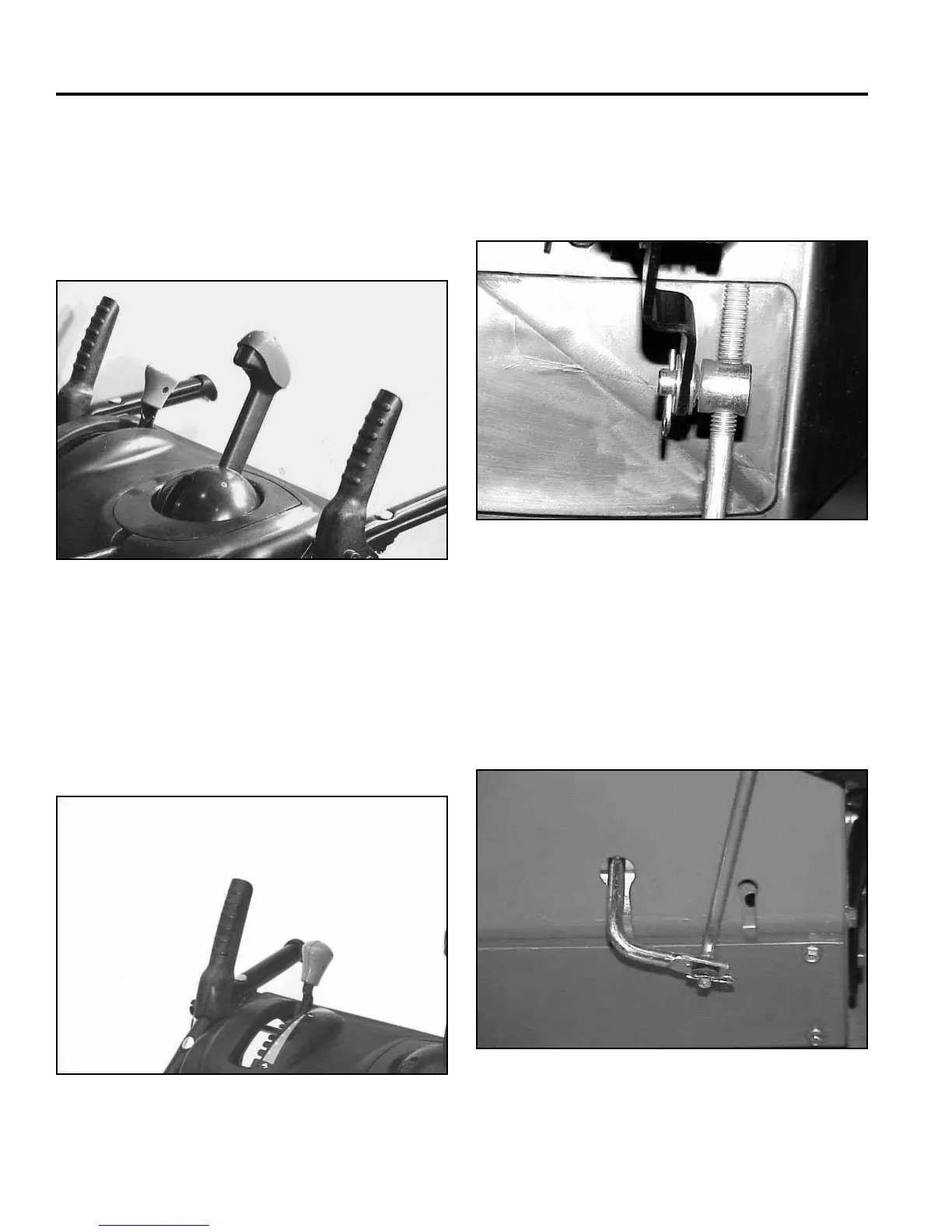

Defl ector Cable Adjustment
Make sure the Quick Stick is in the maximum rear
position and centered (Fig. 037); ensure the defl ector
is in the full upward position. Draw the slack out of the
cable and secure the clamp (Fig. 036).
Fig 037 MVC-775X
The shift lever on the control panel is connected to the
friction wheel in the traction drive by a shift rod. Moving
the shift lever moves the friction wheel to change wheel
direction and speed (Fig. 038).
Fig 038 MVC-901XA
Fig 040 MVC-560F
2. Pull the shift rod and arm upward as far as they will
go. With the shift lever in R2, adjust the trunion to
take the slack out and resecure (Fig. 040).
Note: Excessive slack in the linkage may cause the
drive to be in reverse when shifted into fi rst
gear.
Fig 039 MVC-561F
1. The adjustment point is a trunion on the upper end
of the shift rod (Fig. 039).
SHIFT LEVER
Shift Rod Adjustment
