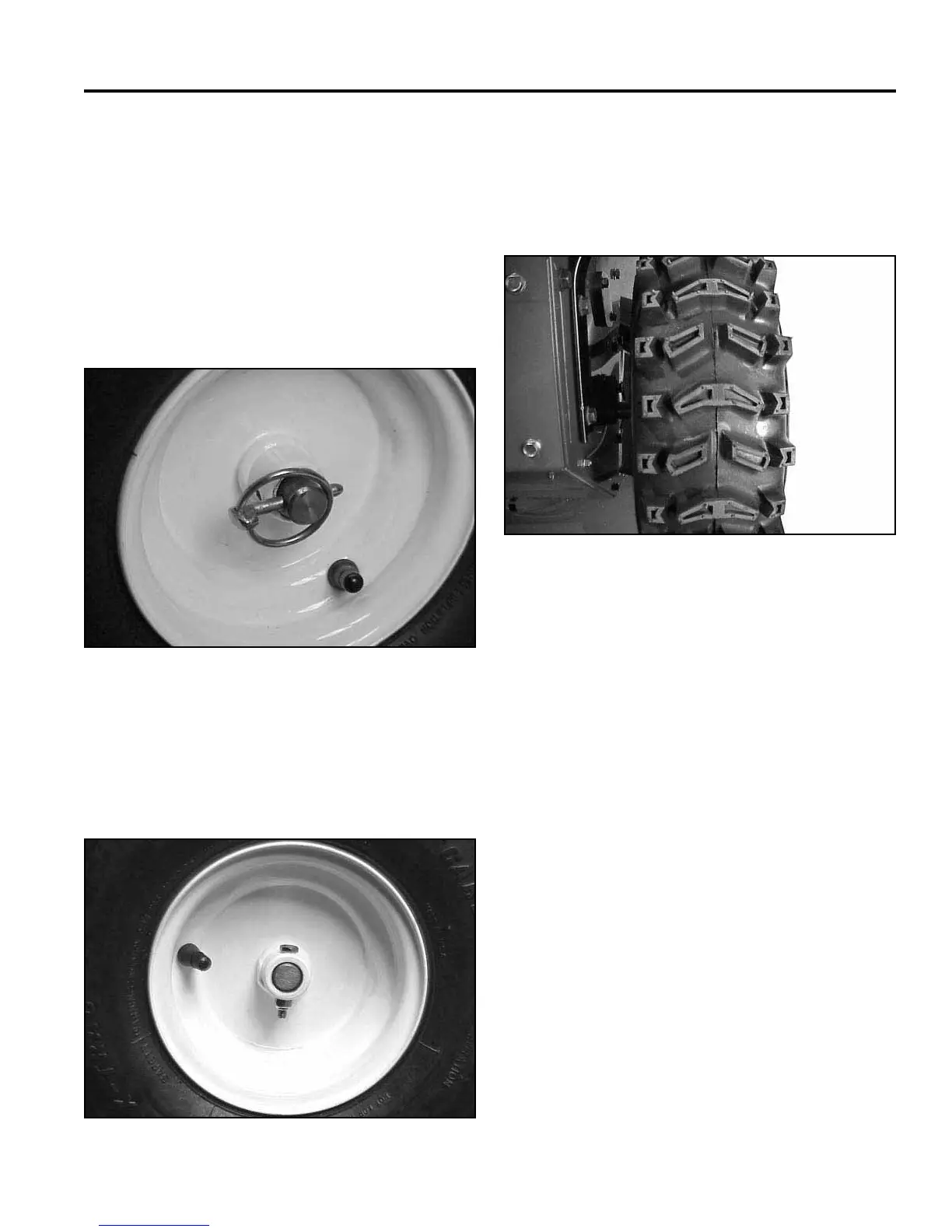

12-1Power Max Service Manual
Fig 232 MVC-884Xt
On wheel clutch models, the wheel is attached with a
bolt and locknut. The traction drive can be declutched by
squeezing the levers. This provides the declutching for
easy pushing (Fig. 232).
Fig 231 MVC-184X
There is a difference in the way the wheel is attached to
the axle, depending on the drive system used.
On the standard machine the wheel is connected to the
axle by a click pin. This allows the pin to be removed
from the wheel and just placed in the axle. This makes
the machine free wheel for easy transport. Place the
pin through both the axle and wheel for self propelling
(Fig. 231).
The tires on all models are 15” tubeless X-Trac tires.
They are directional so they must be installed as shown,
looking forward from the operator position (Fig. 233).
Fig 233 MVC-880X1
Correct Tire pressure is 17-20 psi (117-137 kPa).
Note: Tire pressure needs to be the same side-to-
side or the machine will tend to pull to the side
with the lower pressure.
WHEELS AND TIRES
WHEELS TIRES
