5-3Power Max Service Manual

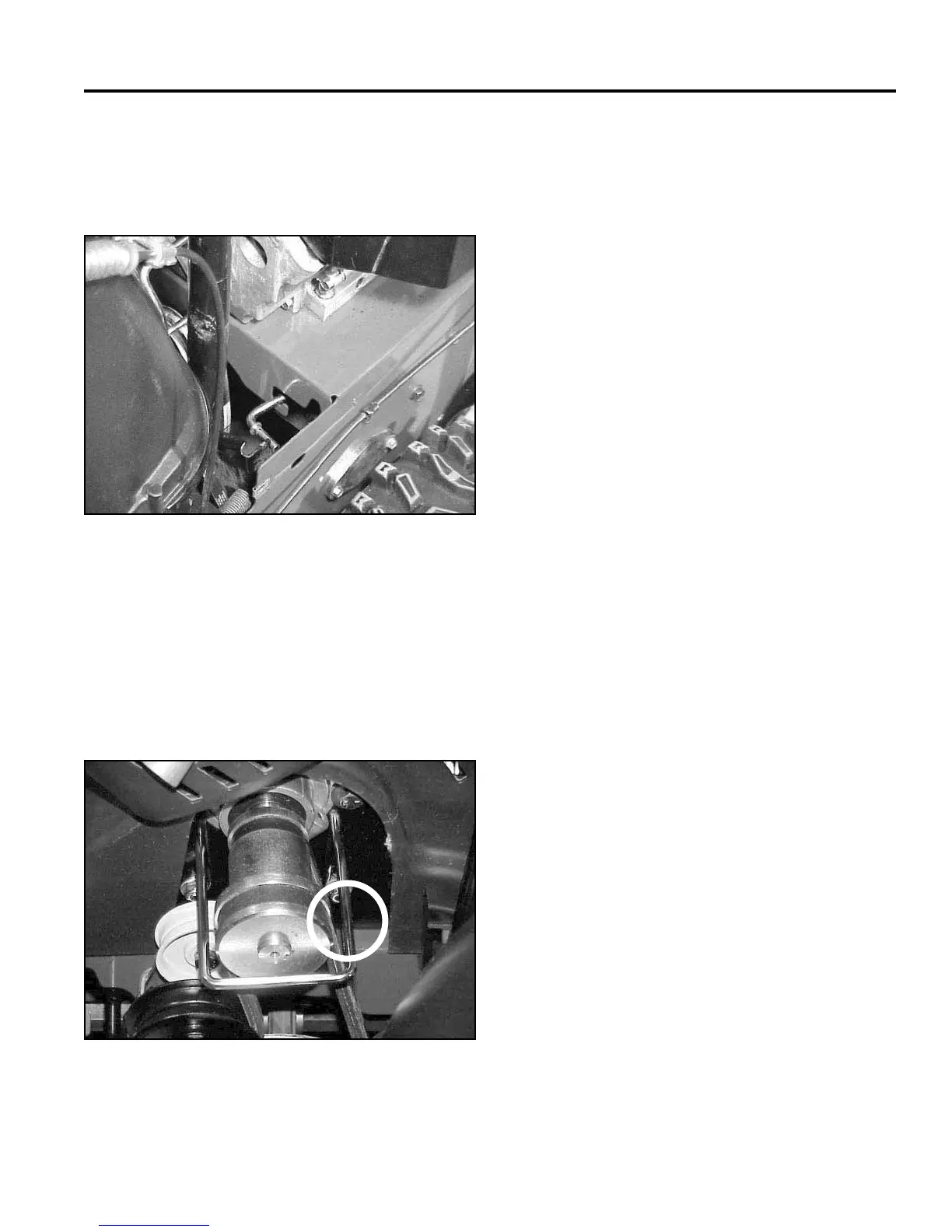

Fig 067 MVC-822X
4. Reverse the process to install a new belt.
5. Check for proper clearance between the belt and
belt guide. Engage the auger belt and look between
the belt and belt guide on the left side. There should
be about 1/8” (3.2mm) gap (Fig. 067). Tighten the
belt guide mounting bolts.
Fig 066 MVC-888XB
3. Move the link to the side and let it rest in the saddle
provided (Fig. 066). Reach down alongside the link
and remove the belt from the lower pulley. Then
remove the belt from the crankshaft pulley.
Belt Adjustment
Belt adjustments are made by adjusting the control
cables. See the Controls Section for the procedure.
