9-17Power Max Service Manual
WHEEL CLUTCH
TRACTION DRIVE SYSTEM

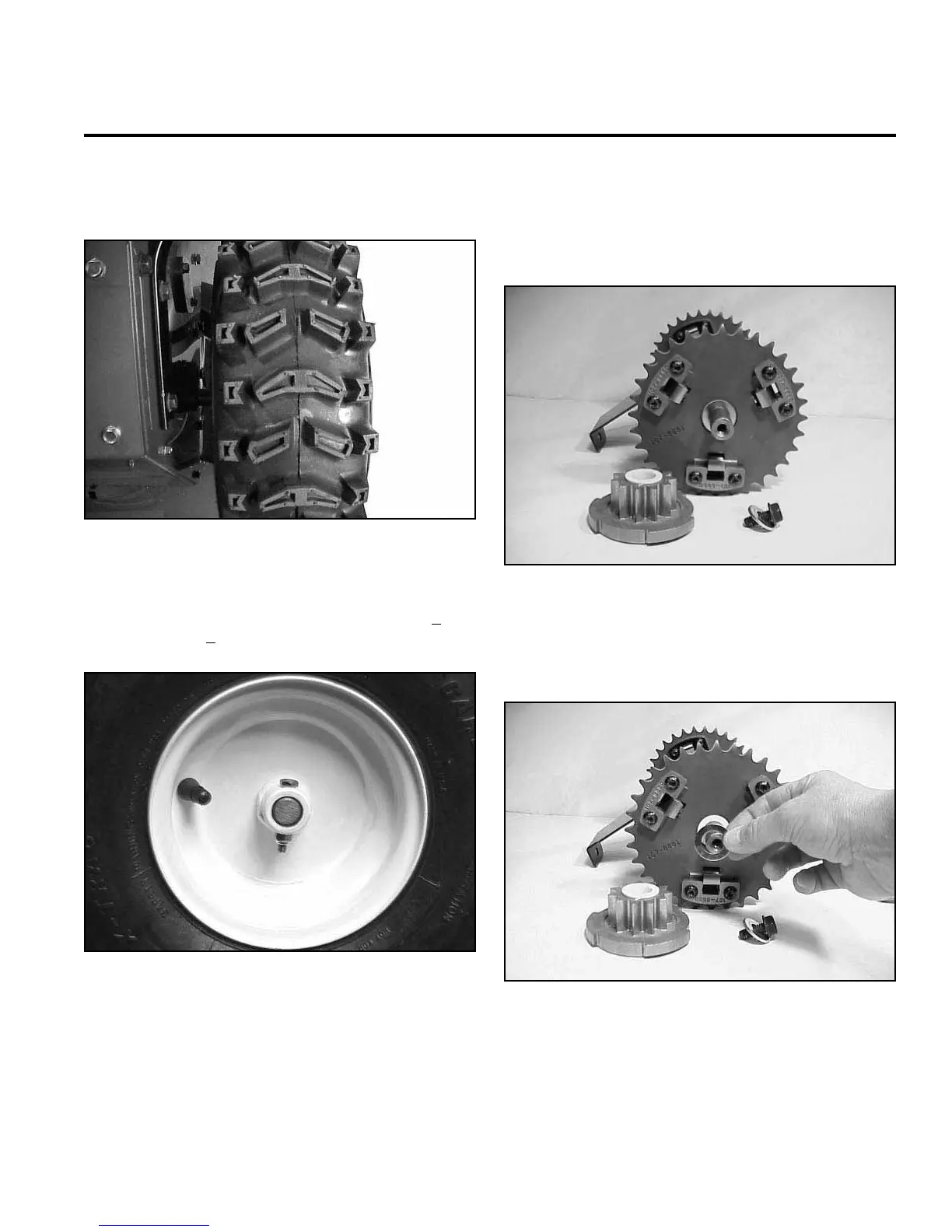

28. Bolt wheel hub to axle shaft and torque to 115 + 15
in-lbs. (12.99 + 1.7 Nm) (Fig. 178).
Fig 178 MVC-884XT.jpg
29. Install the belt extension cover and belt cover.
30. Check clutch cable adjustment and adjust if
necessary. See Adjustments
27. Wheels are installed with the “V” tread rotation
forward (Fig. 177).
Fig 177 MVC-880X1.jpg
WHEEL CLUTCH DISASSEMBLY
1. Remove 11-tooth gear from 32-tooth gear by sliding
it from the shaft (Fig. 179).
Fig 179 MVC-876XB.jpg
Fig 180 MVC-877X.jpg
2. Slide off washer behind the 11-tooth gear (Fig. 180).
