9-20 Power Max Service Manual
WHEEL CLUTCH
TRACTION DRIVE SYSTEM

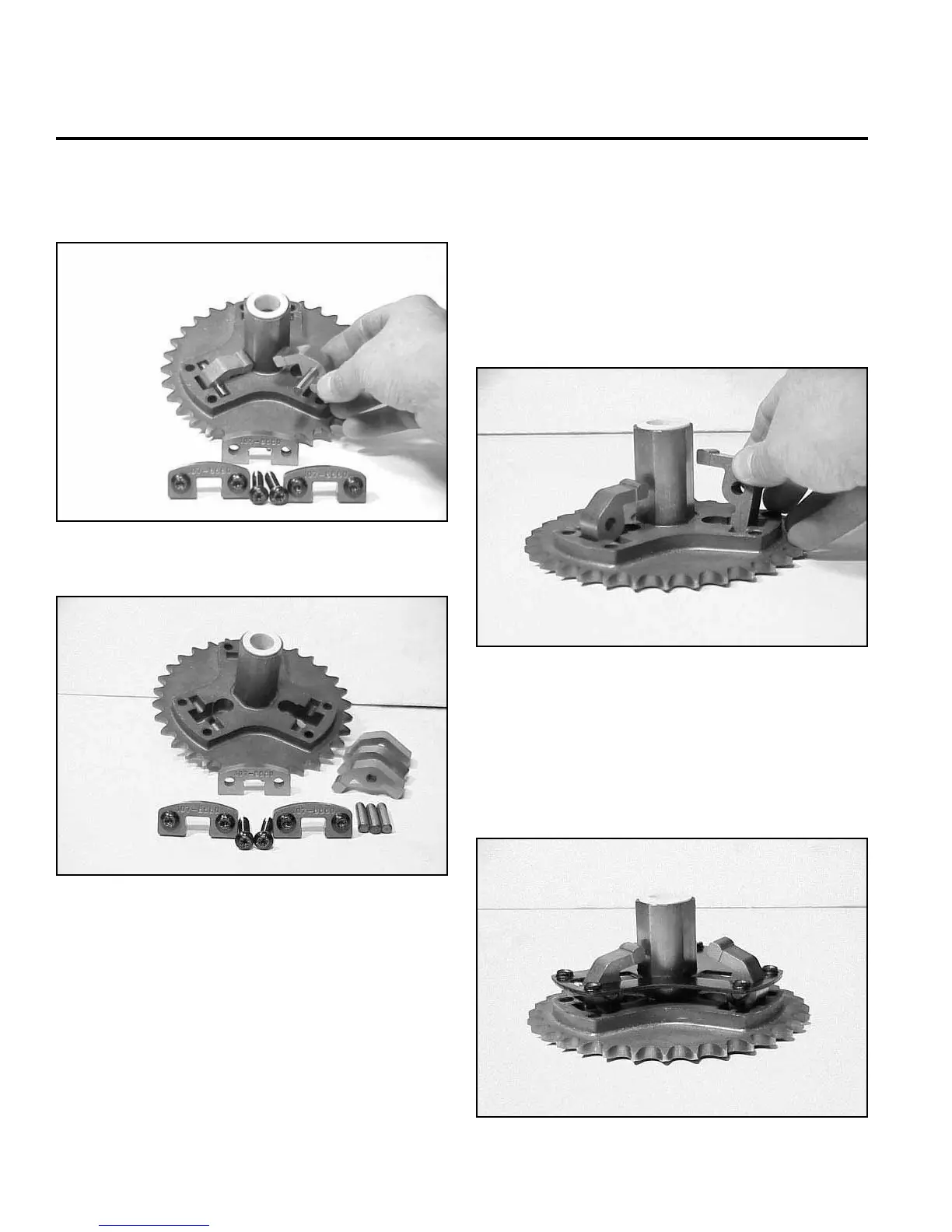

Fig 189 MVC-890XB.jpg
11. Repair or replace defective components.
10. Remove pawl pins and pawls with from the 32-tooth
gear (Fig. 188 and Fig. 189).
Fig 188 MVC-889XWC.jpg
Fig 191 MVC-901XWC.jpg
2. With the pawls facing up and away from the hub,
slide the retainer plate onto hub. Make sure the pins
are seated fl ush and the retainer plate sits fl ush onto
the gear (Fig. 191).
Fig 190 MVC-902XWC.jpg
Note: Apply a light coat of SAE 30W oil to
intermediate shaft before assembly.
1. Set the 32-tooth gear on a fl at surface and install
pawls. Apply a light coat of oil Toro part no. 505-5
to dowel pins then install dowel pins into the pawl
assembly (Fig. 190).
WHEEL CLUTCH REASSEMBLY
