Reel Motor Solenoids
1. Disconnect the wire connector.
2. Connect a 12 volt battery so the positive (+) battery
te
rminal is connected to lead of the wiring connector and
the negative (–) battery terminal to the other lead. The
valve spool should retract completely as 12 V.D.C is
applied between leads.
3. If valve spool does not retract check for binding or
da
mage in valve.
4. If valve operates smoothly, but does not retract when
12
V.D.C is applied to solenoid leads, replace solenoid
coil.
1

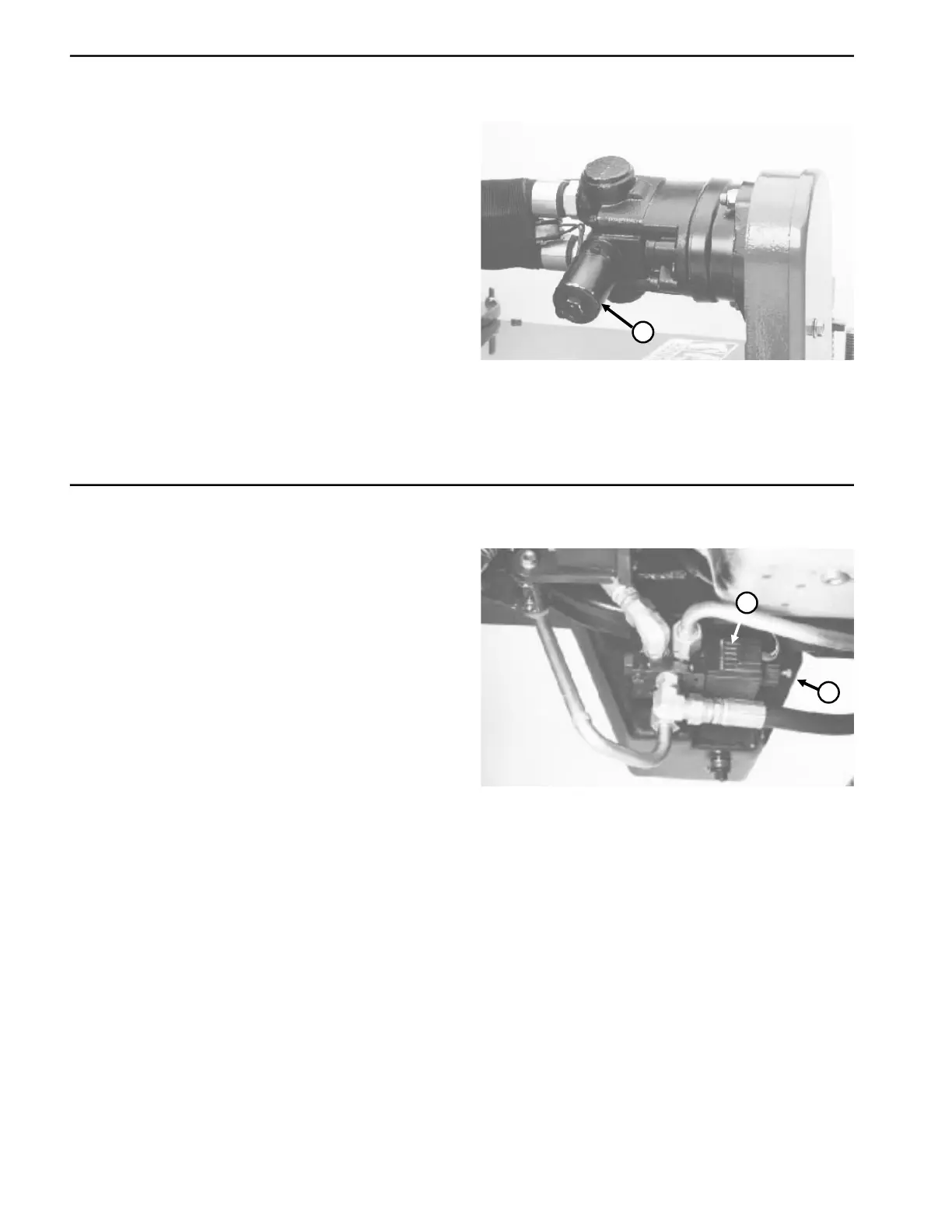

Figure 27
5. If valve still does not retract after replacing solenoid
coil,
replace the valve.
1. Reel motor solenoid
4WD Solenoid
1. Disconnect the wire connector.
2. Connect a 12 volt battery so the positive (+) battery
te
rminal is connected to colored solenoid lead. Connect
the negative (–) battery terminal to black lead. The valve
spool should retract completely as 12 V.D.C is applied
between leads.
3. If valve spool does not operate properly check for
bin
ding or damage to valve.
4. If valve moves smoothly, but does not engage when
12 V.D.C is applied to solenoid leads, replace solenoid
coil.
1
Figure 28
5. If valve still does not operate after replacing solenoid
coil,
replace the valve.
1. 4WD solenoid
2. Indicator
Testing Page 5 - 26 Reelmaster
®
335-D
