DriveSystem
Maintenance
CheckingtheTirePressure
ServiceInterval:Every25hours—Checktire
pressure.
Maintaintheairpressureinthefrontandreartiresas
specied.Uneventirepressurecancauseanuneven
cut.Checkthepressureatthevalvestem(Figure52).
Checkthetireswhentheyarecoldtogetthemost
accuratepressurereading.
Inatethefrontcasterwheeltiresto206kPa(30psi)
orthepressureindicatedonthesidewall,whichever
islower.
Inatethereardrive-wheeltiresto90kPa(13psi).

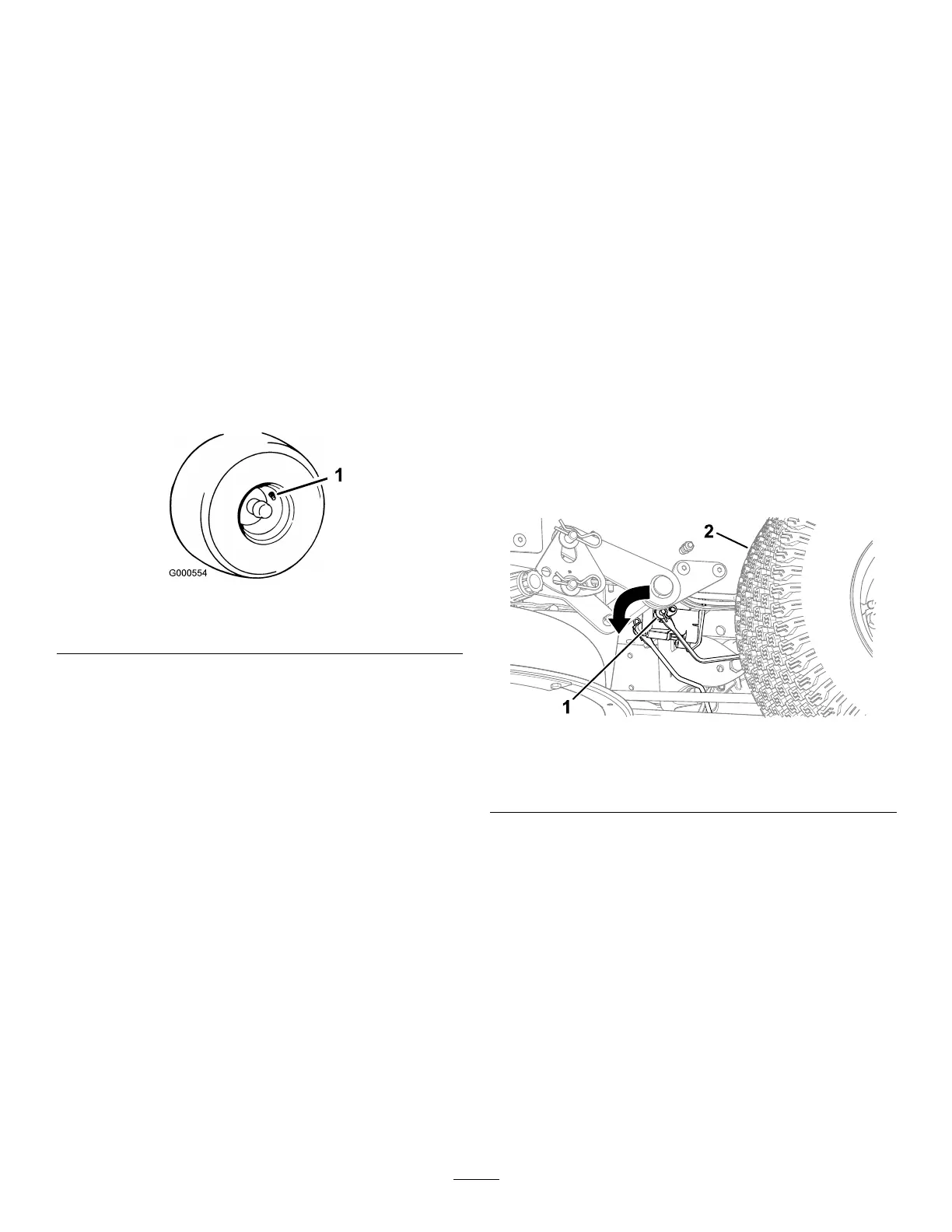

g000554
Figure52
1.Valvestem
ReleasingtheElectric
Brake
Youcanmanuallyreleasetheelectricbrakeby
rotatingthelinkarmsforward.Oncetheelectricbrake
isenergized,thebrakeresets.
1.TurnthekeytotheOFFpositionandremove
thekey.
2.Disconnectthebattery.
3.Loosenthebottom2boltsholdingthe
mower-deckcurtaintothemowerdeck.Referto
ReleasingtheMower-DeckCurtain(page32).
4.Locatetheshaftontheelectricbrakewherethe
brakelinkarmsareconnected(Figure53).
5.Rotatetheshaftforwardtoreleasethebrake
asshowninFigure53.
6.Rotatetheshaftbackandconnectthebattery
aftermovingthemachine.
7.Tightenthebottom2boltsforthemower-deck
curtaintothemowerdeck.RefertoReleasing
theMower-DeckCurtain(page32).
g294417
Figure53
1.Brake-linkarmontheelectricbrakecontrolmodule
2.Left,reartire
AdjustingtheTracking
Whendrivingthemachineforwardfullspeedacross
aat,levelsurface,ifthemachinepullsto1side,
adjustthetracking.
Ifthemachinepullstotheleft,adjusttheright
motion-controllever;ifthemachinepullstotheright,
adjusttheleftmotion-controllever.
Note:Youcanadjustthetrackingonlyfordriving
forward.
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andmovethe
motion-controlleversoutwardtothePARK
position.
41
