7 - 8 TimeCutter™ Z Service Manual
MOWER DECKS
7

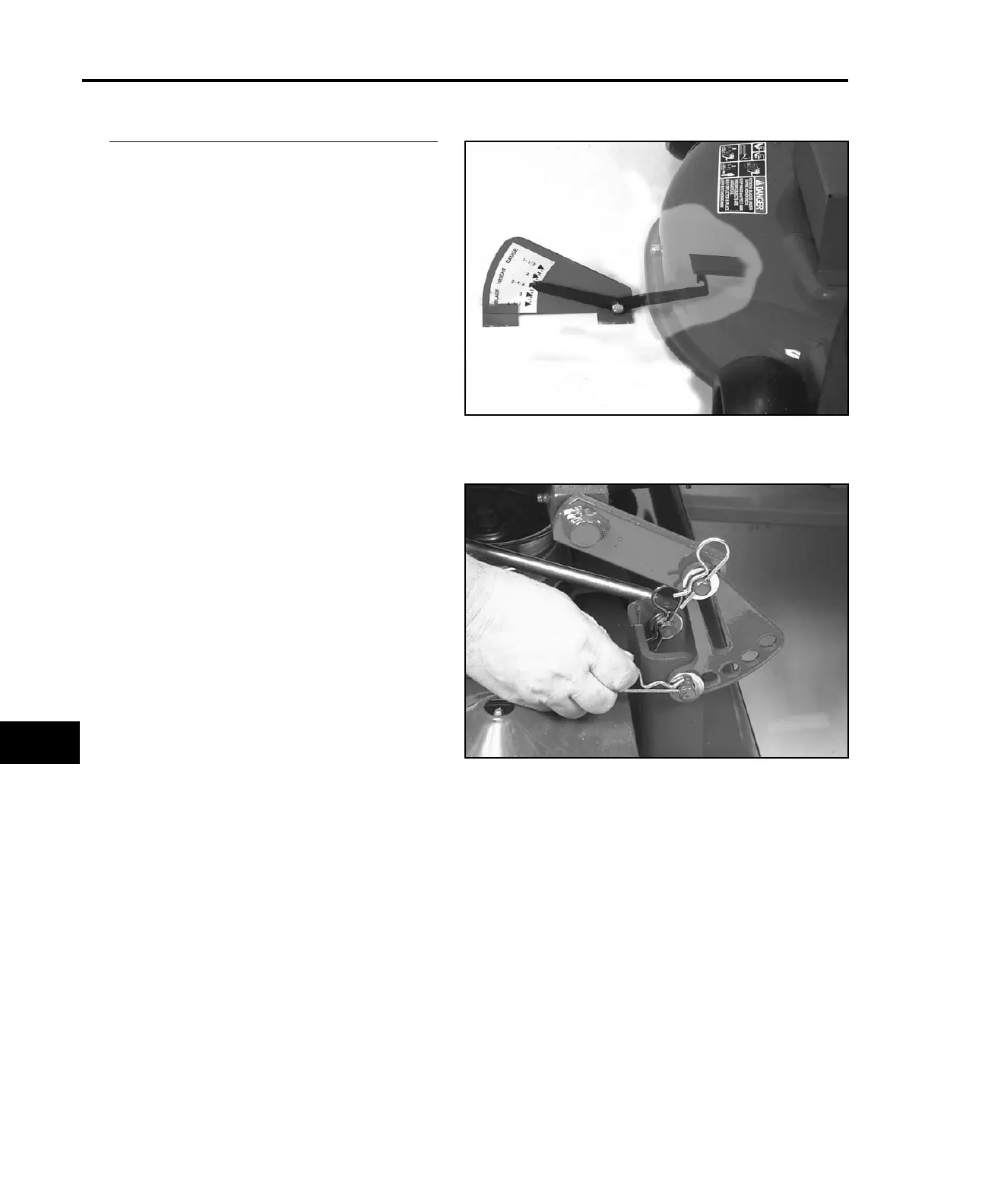

Place the unit on a level surface. Check and
adjust the tire pressure, if necessary.
Raise the deck to the 3" (7.6 cm) position. Use a
blade height gauge to measure the distance
between the blade tips and the surface on both
sides of the deck.
If the difference is greater than 3/16”
(4.72 mm), adjustment is required.
1. Remove the spring clip and washers from
the pork chop bracket.
2. Rotate the bracket toward the front to lower,
or toward the rear to raise that side of the
deck.
3. Replace the spring clip.
NOTE: Each adjustment hole changes the
dimension by 1/8 inch.
0702-0725
0702-0703
Mower Deck Side to Side Adjustment
