TimeCutter™ Z Service Manual 6 - 11
6

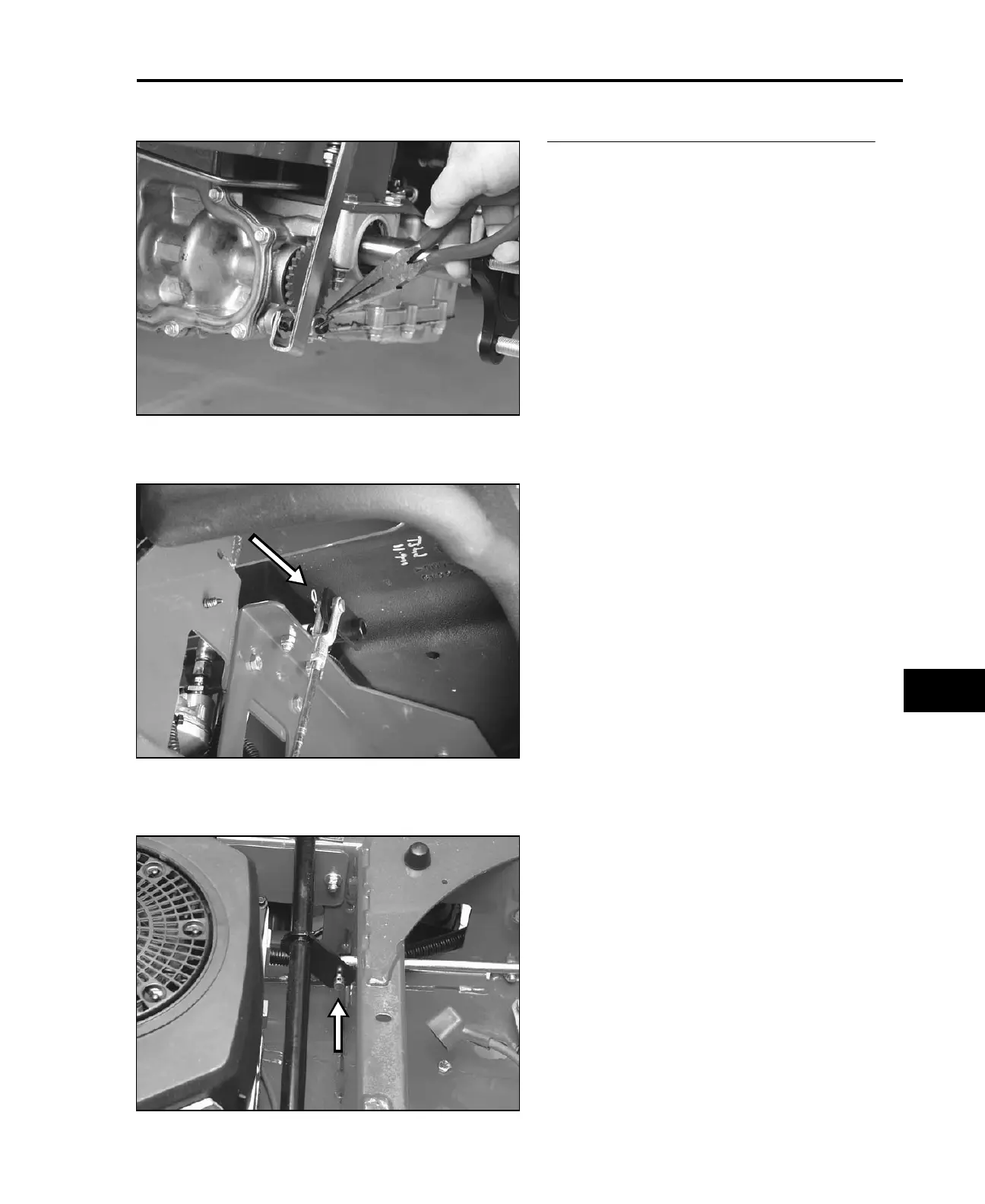

Remove the brake link from the brake arm.
Remove the clip and yoke from the brake shaft
lever.
Remove the cotter pin and washer from the
actuator rod.
NOTE: The actuator rod cannot be removed
from the lever at this time.
0702-0509
0702-0615
0702-0616
Remove and Replace Brake Linkage
