5 - 24 TimeCutter™ Z Service Manual
TRANSAXLE
5

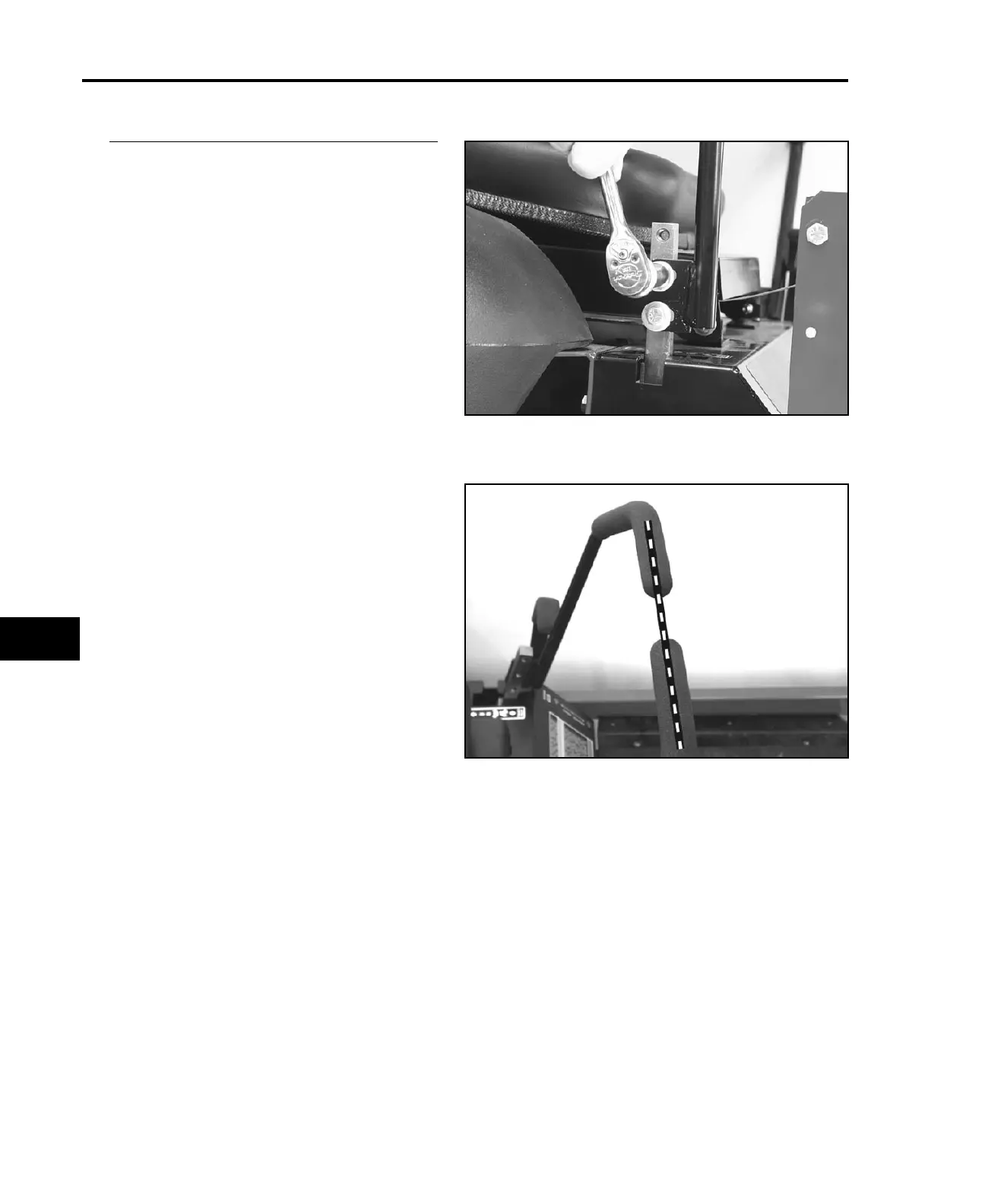

If the directional control handles do not line up
with each other, they require adjustment.
1. Loosen the bolts attaching the handles to the
control linkage.
2. Adjust the position of the handles so that
they are aligned. Tighten the bolts after
adjustment.
0702-0534
0702-0535
Control Handle Adjustment
