ELECTRICAL SYSTEMS
TimeCutter™ Z Service Manual 8 - 7
8

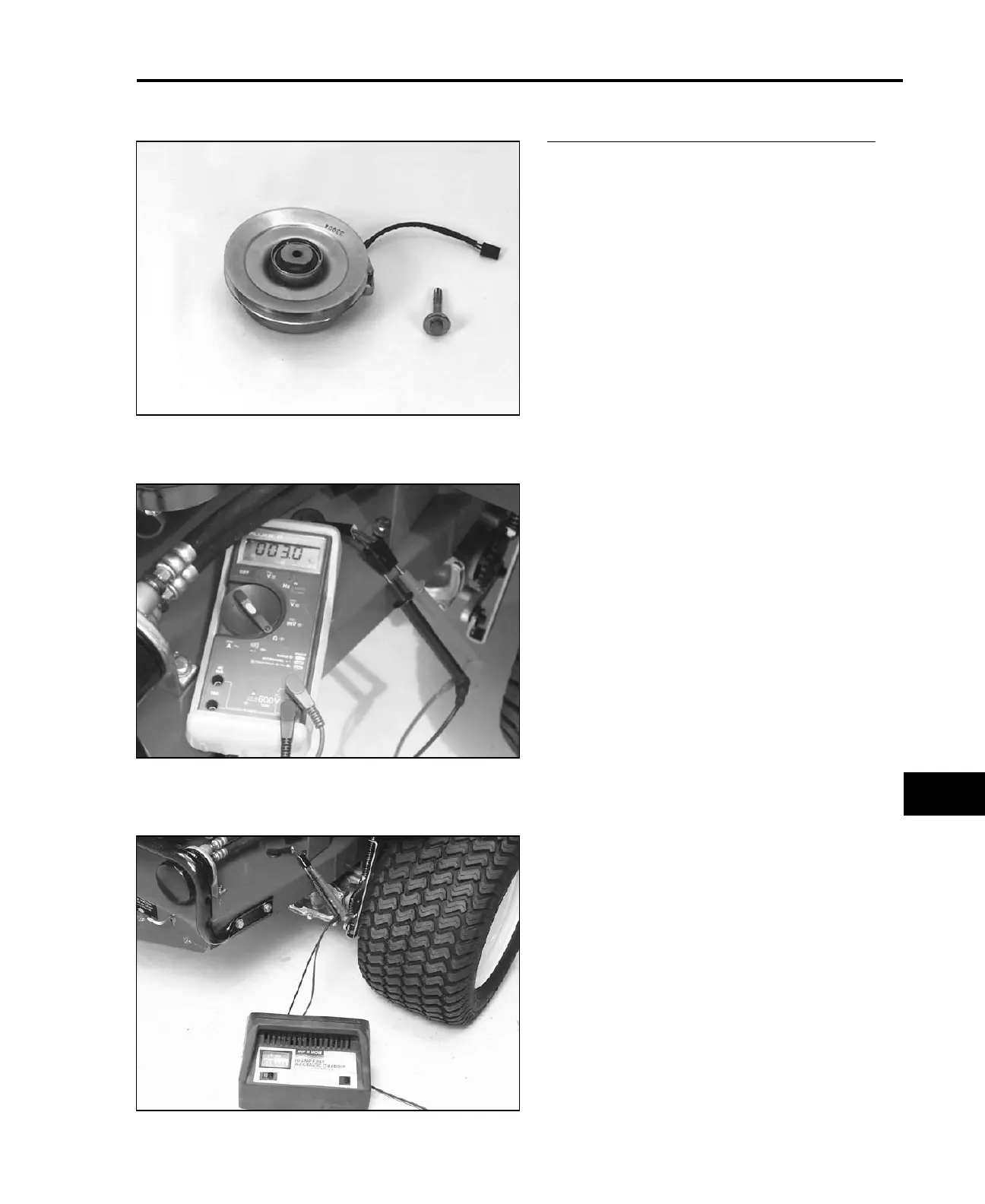

The TimeCutter Z is equipped with a Warner
electric clutch. The clutch is not serviceable.
There are two tests used to determine if the
clutch is faulty.
Measure the resistance across the clutch plug
terminals.
The resistance should be 2.9 ohms ± 20%.
Connect a 12 volt power source across the
clutch plug. The clutch should click when it
engages.
The clutch uses a magnetic brake to stop the
mower blades when disengaged. Test this
function when mounted on the vehicle, with
mower installed. Blade stopping time should be
3 seconds or less.
0702-0809
0702-0810
0702-0811
Electric Clutch
