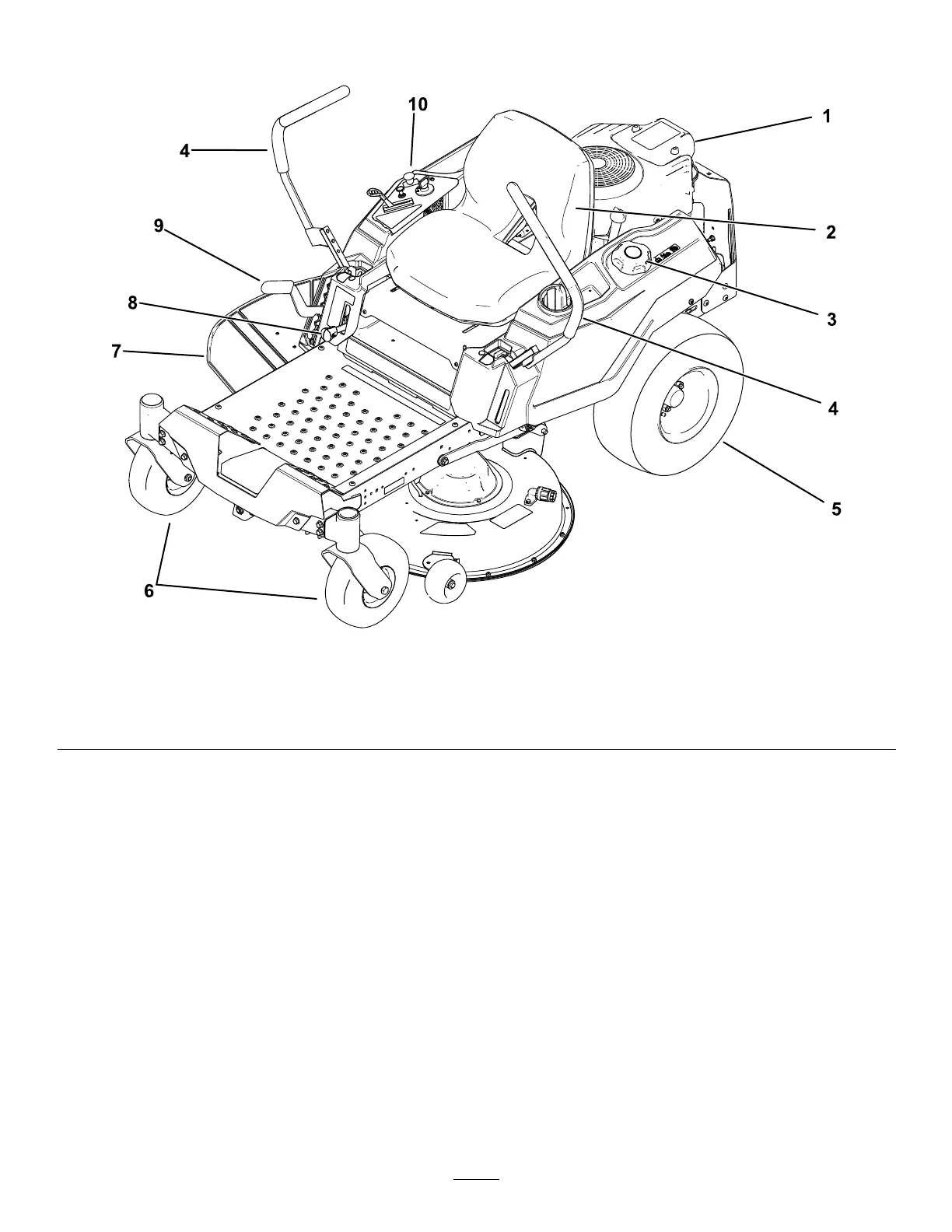

Product Overview
g395047
Figure 4
1. Engine 4. Motion-control lever
7. Deector 10. Control panel
2. Operator seat
5. Rear drive wheel
8. Smart Speed ™ lever
3. Fuel-tank cap 6. Front caster wheel
9. Height-of-cut lever
9
